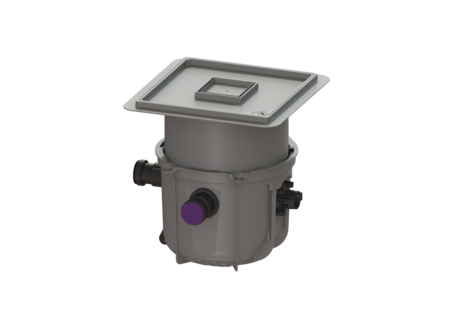

Lifting station Minilift S
KTP 300-S1, Floor slab, tileable
PDF product data sheet
The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site. - with telescopic upper section for continuously adjustable height and level compensation and integrated floor drain - including backflow preventer for the pressure pipe - including DN 50 socket for inlet and cable conduit - pump with multi-vane impeller for maximum operating reliability - including float switch for level measurement
- Space-saving installation in the floor slab
- System ready to plug in
- Easy maintenance
| Item no. | 280570X |
|---|---|
| GTIN | 4026092082546 |
| Price group | 20 |
Lifting station Minilift S KTP 300-S1, Floor slab, tileable
The ready to plug in small lifting station for faecal-free wastewater is suitable for wastewater drainage of individual sanitary appliances. The submersible pump with float switch can be removed easily with the help of one-handed closures. The collection tank made of polymer (PE) has an open pump tank and is resistant to aggressive wastewater. The system for installation in the floor slab is preassembled for final installation on site. - with telescopic upper section for continuously adjustable height and level compensation and integrated floor drain - including backflow preventer for the pressure pipe - including DN 50 socket for inlet and cable conduit - pump with multi-vane impeller for maximum operating reliability - including float switch for level measurement Type of wastewater: wastewater without sewage Installation situation: floor slab installation Version: Type of system: Single station Pump control: Float switch Backflow preventer: integrated Delivery state: Installation-ready (connection parts must be connected on site) General characteristics: Colour: grey Standard: EN 12050-2 Dimensions: Length: 460 mm Width: 380 mm Tank: Inlet nominal size (DN): 50 Pumping volume: 7 l Pressure pipe connection (DN): 32 mm Pressure pipe connection (OD): 40 mm Installation depth: 330 - 460 mm Coverage features: Type of cover: tileable cover plate Cover material: Polymer Colour of cover: silver grey Max. flooring height: 16 mm Load class: K 3 (EN 1253-1) Length: 366 mm Width: 366 mm Locking: Lock & Lift Free passage: 10 mm Pumping device: Pump: KTP 300 Number of pumps: 1 Max. pumping capacity: 8 m3/h Max. pumping height: 6 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 0.34 kW Power P2: 0.21 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 1.6 A Protection class (pump): IP 68 (3m) Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated
