Aqualift S Compact lift stat.

Mono, GTF 1200 resist., Floor slab

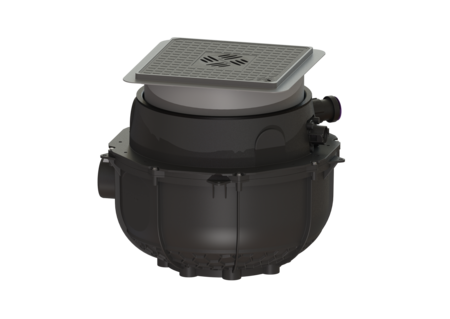

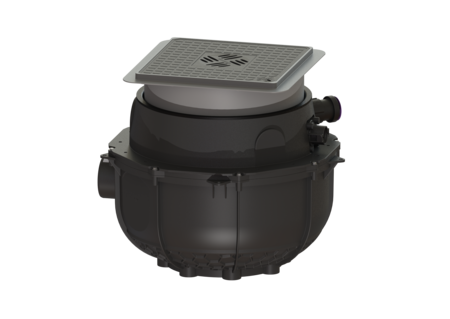

KESSEL Aqualift S Compact lift stat. Mono, wastewater without sewage, floor slab installation, with a submersible GTF 1200 resistant pump, level measurement Float switch, type of cover Cover plate, black

  • Space-saving due to installation in floor slab with integrated drainage function
  • Easy retrofitting from Mono to Duo possible
  • Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
Item no. 281200SC
GTIN 4026092093719
Price group 20

Aqualift S Compact lift stat. Mono, GTF 1200 resist., Floor slab
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch Backwater protection: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) System type: Mono Dimensions Net weight: 17,92 kg Gross weight: 21,2 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Vertical adjustment: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 675 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 16 l Tank volume: 65 l Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Pumping device Pump: GTF 1200 resistant Number of pumps: 1 Weight, pump: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 6,2 A Length of mains cable for pump: 5 m Protection class: I Insulation class: F Protection class (pump): IP 68 (3m) Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S3 - 10 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Control Motor protection switch: yes Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Rated current: 6,2 A
  Title Item no.
  Title Item no.
  Title Item no.
Adapter DN 50/70 27126 Show
Adapter DN 100/70 27602 Show
Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
Pressure pipe set with 5 m pressure hose, DA 50 mm 28062 Show
Adapter for pressure pipe connection, DN 32, PE 28086 Show
Inlet socket DN 50, with seal, Threaded ring 39005 Show
Inlet socket DN 70, with seal, Threaded ring 39007 Show
Inlet socket DN 100, with seal, Threaded ring 39100 Show
Odour trap Multistop, System 125 48500 Show
Odour trap Megastop 48550 Show
Hair filter Polymer, for System 125 bathroom drains 48700 Show
Hole saw for DN 50/70/100 500101 Show
Odour trap for The Ultraflat 79 680696 Show
Drain body for cover plate for odour trap 50 mm, black 680795 Show
Drain body for cover plate for Multistop, black 680796 Show
Drain body for cover plate for odour trap 50 mm, grey 680797 Show
Drain body for cover plate for Multistop, grey 680798 Show
Cable accessories 80889 Show
Cable accessories 80891 Show
Cover plate 830050 Show
Cover plate 830052 Show
Extension section H: 200 mm 83070 Show
Extension piece with flange&counterfl. 83073 Show
Extension section H: 360 mm, with central flange 83075 Show
Waterproof concrete install. kit OD: 40 mm, for building contractors 83077 Show
Seal for pipe penetration, DN 50 850114 Show
Seal for pipe penetration, DN 70 850116 Show
Seal for pipe penetration, DN 100 850117 Show
  Title Item no.
Inlet socket DN 50, with seal, Threaded ring 39005 Show
Slotted cover 138x138 mm, Polymer 60101S Show
Locking key for Ecoguss slotted gratings,Lock & Lift 67007 Show
One-handed closure for backflow preventer 680018 Show
Seal for upper section, from 07/2014 680150 Show
Pump connection with seal and flap 680475 Show
Pressure pipe connection with seal and screws 680758 Show
Pump connection Minilift, Aqualift S 680760 Show
Flap housing Mono, with pump connector 680761 Show
Turn fastener for pump connection lock 680762 Show
Pump hanger for Aqualift S Compact, Mono, GTF 1200 680772 Show
Replacement pump GTF 1200 resistant, with float switch 680953 Show
Seal for cover plate, System 330 mm 686114 Show
Cover plate black with slotted cover 830053 Show
Upper section system 400 830065 Show
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Type of cover (abdeckungsart): Cover plate
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Pump (pumpe): GTF 1200 resistant
  • (ausfuehrung):
