Aqualift S Compact lift stat.

Aqualift S Compact GTF1000 Duo Tronic

For combination with a KESSEL shell kit for creating a Duo lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system using a potential-free contact or alarm and collective fault messages that can be output through a GSM interface. KESSEL technology kit consisting of: - Pumps with multi-vane vortex impeller for maximum operating safety - Comfort control unit 230 V - Optical alarm probe - Pneumatic level measurement

    • Space-saving due to installation in floor slab with integrated drainage function
    • Easy retrofitting from Mono to Duo possible
    • Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
    Item no. 281230-TK
    GTIN 4026092108048
    Price group 20

      Aqualift S Compact lift stat. Aqualift S Compact GTF1000 Duo Tronic

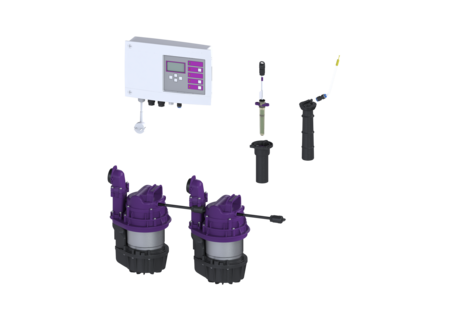

      For combination with a KESSEL shell kit for creating a Duo lifting station for wastewater without sewage with a GTF1200 wastewater pump. The ready to plug in lifting station for wastewater without sewage is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is pre-assembled for final installation on site. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system using a potential-free contact or alarm and collective fault messages that can be output through a GSM interface. KESSEL technology kit consisting of: - Pumps with multi-vane vortex impeller for maximum operating safety - Comfort control unit 230 V - Optical alarm probe - Pneumatic level measurement Variant Type of system: duo pump Rim width: Control unit Dimensions Net weight: 25 kg Gross weight: 25 kg Packaging dimension: width: 385 mm Packaging dimension: height: 465 mm Packaging dimension: length: 785 mm Pumping device Pump control: GTF 1200 Number of pumps: 2 Connection type: coded plug Rated current: 6,2 A Length of mains cable for pump: 5 m Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Control Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      • Control unit (schaltgeraet): Comfort
      • Number of pumps (anzahl_pumpen): 2
