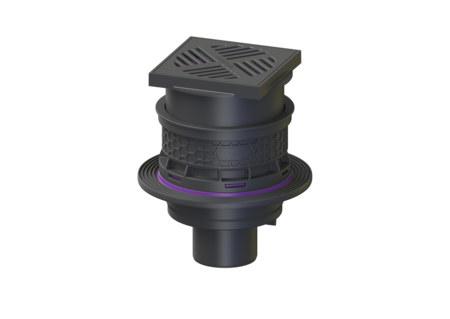

Universal Plus basement drain

ver., black, Odour trap, Waterpr. concr.

PDF product data sheet

The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable odour closure and a sludge bucket. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested).

Item no. 29131
GTIN 4026092096895
Price group 10

Universal Plus basement drain ver., black, Odour trap, Waterpr. concr.
The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable odour closure and a sludge bucket. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Type of wastewater: wastewater without sewage Installation situation: floor slab installation Version: Odour trap: included General characteristics: Nominal size (DN): 100 Colour: black Standard: EN 1253 Dimensions: Height: 270 mm Cutout dimension, length: 310 mm Cutout dimension, width: 310 mm Diameter: 295 mm Tank: Outlet nominal size (DN): 100 Outlet nominal size (OD): 110 Installation depth: 293 - 350 mm Drain body: Socket version: vertical Vertical adjustment: vertically adjustable upper section Adjustment range: 23 - 80 mm Coverage features: Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Load class: K 3 (EN 1253-1) Length: 200 mm Width: 200 mm Height: 25 mm Sludge bucket: yes Discharge rate (l/s) with 10 mm backwater: 1,4 l/s Discharge rate (l/s) with 20 mm backwater: 2.5 l/s
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Sludge basket, polymer 27604
Odour trap for basement drain 29111 27605
Slotted grid black, 200x200mm, cl. K3 27613
Upper section black, 100mm 27714
Universal Plus drain body ver., odour trap, Waterproof concrete 29102
Universal Plus drain body vertical, with odour trap 29103
Upper section Black slotted cover, 200 x 200 mm, K 3 48964
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 2.5  LTS
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Wastewater quantity (ATTR-310): Medium
  • Overall height (ATTR-313): min. 130 mm
  • Installation depth (T) from (ATTR-B2A): 293  MMT
  • Installation depth (T) up to (ATTR-B2B): 350  MMT
  • Advantages text (M-ATTR-007): The basement drain with odour trap for more flexibility in new buildings, suitable for waterproof concrete
  • Net weight (ATTR-A3A): 3.2  KGM
  • Gross weight (ATTR-A3B): 3.6  KGM
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1,4  LTS
  • Odour trap (ATTR-115): included
  • Sludge bucket (ATTR-A2K): yes
  • Waterproof flange (ATTR-166):
  • Socket version (ATTR-233): vertical
  • Height (ATTR-A6C): 270  MMT
  • Diameter (ATTR-107): 295  MMT
  • Cutout dimension, length (ATTR-160): 310  MMT
  • Cutout dimension, width (ATTR-161): 310  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 344  MMT
  • Packaging dimension: width (ATTR-326): 344  MMT
  • Packaging dimension: height (ATTR-327): 353  MMT
  • Dimensions (ATTR-323): 344X344X353MM
  • Number of packages (ATTR-321): 0
  • Adjustment range (ATTR-108_VB): 23  MMT
  • Outlet nominal size (DN) (ATTR-B15CA): 100
  • Outlet nominal size (OD) (ATTR-B15CB): 110
  • Type of cover (ATTR-A21): Slotted cover
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Cover material (ATTR-A2E): Polymer
  • Length (ATTR-A2M): 200  MMT
  • Width (ATTR-A2N): 200  MMT
  • Height (ATTR-A2P): 25  MMT
  • Colour (ATTR-102): black
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Standard (ATTR-9): EN 1253
  • Installation situation (ATTR-1): floor slab installation
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Nominal size (DN) (ATTR-118): 100
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Basement drain
  • Product family (M-ATTR-004): Universal Plus
  • Product name (M-ATTR-005): Universal Plus
  • Installation depth (ATTR-B2_VB): 293  MMT
