Ecoguss project drain
DN 80, horiz., Variofix, Design cover

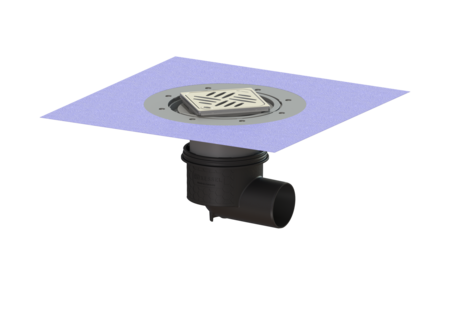

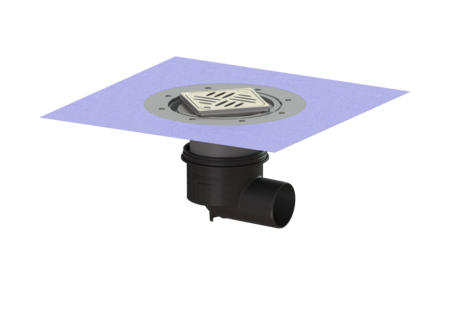

KESSEL Ecoguss project drain, nominal size (DN) 80, socket lateral, type of cover Design cover, odour trap included, adjustable in three dimensions, flooring height max. 24 mm, locking Lock & Lift
- High-tech Ecoguss composite material
- Highest fire protection standards
- Scientifically confirmed sound protection effect
| Item no. | 48383.53 |
|---|---|
| GTIN | 4026092052921 |
| Price group | 40 |
Ecoguss project drain DN 80, horiz., Variofix, Design cover
In combination with an upper section made of stainless steel, Ecoguss and recycled polymer, the Ecoguss floor/roof drain is used for point drainage and is equipped with a removable odour trap and a construction period protection cover. The recyclable composite material Ecoguss fulfils the highest sound insulation requirements, is permanently resistant to 350 aggressive media according to the resistance list, is temperature-resistant and has a permanently corrosion-free surface. It can be flame-treated for short periods from 100 to 400 degrees Celsius. The outlet nozzle is suitable for connection to SML cast iron pipes. Equipotential bonding is not required. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 80 Outer diameter (OD): 83 mm Odour trap: included Dimensions Net weight: 2,37 kg Gross weight: 3,27 kg Type of height adjustability: vertically adjustable upper section Packaging dimension: length: 490 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss resistant Socket version: lateral Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Min. flooring height: 10 mm Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Max. flooring height: 24 mm Upper section: adjustable in three dimensions Upper section material: ABS
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Extension section H: 140 mm, with glued flange | 48403 | Show |
 | Extension section H: 147 mm, with pressure sealing flange | 48404 | Show |
 | Extension section H: 120 mm, with glued flange | 48900 | Show |
 | Extension section H: 136 mm, without inlet | 48987 | Show |
 | Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Odour trap for Practicus, Ecoguss, Ferrofix | 27169 | Show |
 | Ecoguss drain body DN 80, Horizontal outlet | 48383 | Show |
 | Waterproofing membrane for joint sealing, liquid | 48651 | Show |
 | Variofix upper section Kessel des cov, 304 SST, Lock&Lift, L15 | 48904 | Show |
 | Design cover Oval, Lock & Lift | 680225 | Show |
 | Design cover KESSEL, Lock & Lift | 680226 | Show |
 | Design cover Spot, Lock & Lift | 680238 | Show |
 | Design cover Slot, Lock & Lift | 680239 | Show |
 | Release key for Lock & Lift | 680702 | Show |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Test Reports and Certificates |
- Nominal size (DN) (nennweite): 80
- Cover material (abdeckung_material):
Stainless steel 14301
- Frame material (rahmen_material):
Stainless steel 14301
- Upper section material (material_aufsatzstueck):
ABS
- Socket version (stutzen_ausfuehrung):
lateral
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
