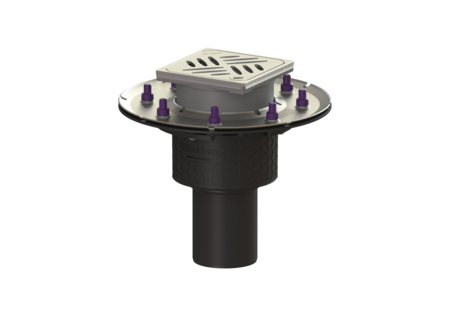

Ecoguss project drain, press. fl.

DN 80, vertical, Design cover

KESSEL Ecoguss project drain, press. fl., nominal size (DN) 80, cover length 120 mm, socket vertical, odour trap included, drainage by Point drain, flooring height max. 16 mm, type of cover Design cover, vertically adjustable

  • Scientifically confirmed sound protection effect
  • Highest fire protection standards

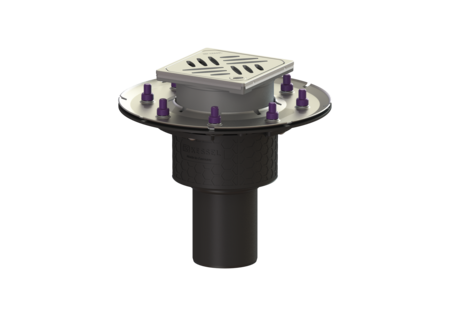

Item no. 48883.63
GTIN 4026092053416
Price group 40

    Ecoguss project drain, press. fl. DN 80, vertical, Design cover
    The Ecoguss project drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 80 Outer diameter (OD): 83 mm Approval: Z-19.53-2414,Z-19.17-1719 Dimensions Net weight: 2,7 kg Gross weight: 3,34 kg Diameter: 273 mm Type of height adjustability: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 400 mm Packaging dimension: width: 300 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss Socket version: vertical Coverage features Type of cover: Design cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 120 mm Length of cover: 120 mm Surface: ground Frame material: Stainless steel 14301 Locking: Lock & Lift Load class: L 15 (EN 1253-1) Grating design: Kessel Slip resistance class: R9 according to DIN 51130; C according to DIN 51097 Rim width: 132 mm Rim length: 132 mm Max. flooring height: 16 mm Upper section: vertically adjustable Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099 Show
    Fire protection insert Fire-Kit 100, for DN 100 48100 Show
    Extension section H: 140 mm, with glued flange 48403 Show
    Extension section H: 147 mm, with pressure sealing flange 48404 Show
    Extension section H: 120 mm, with glued flange 48900 Show
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
    Quick-Fit pipe penetration seal for core drillholes with fire protection 48990 Show
      Title Item no.
    Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    Upper section Kessel des cov, 304 SST, Lock&Lift, L15 48201 Show
    Ecoguss pressure sealing flange System 125, incl. fixing clips 48407 Show
    Ecoguss drain body Press. fl., DN 80, Vertical outlet 48883 Show
    Design cover Oval, Lock & Lift 680225 Show
    Design cover KESSEL, Lock & Lift 680226 Show
    Design cover Cross, Lock & Lift 680235 Show
    Design cover Parade, Lock & Lift 680236 Show
    Design cover Festival, Lock & Lift 680237 Show
    Design cover Spot, Lock & Lift 680238 Show
    Design cover Slot, Lock & Lift 680239 Show
    Design cover Sticks, Lock & Lift 680240 Show
    Release key for Lock & Lift 680702 Show
    • Nominal size (DN) (nennweite): 80
    • Material of drain body (material_grundkoerper): Ecoguss
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • Socket version (stutzen_ausfuehrung): vertical
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Connection flange
