Backwater valve Staufix
DN 150, Floor slab, black, Type 2
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve.
- Optional rat protection flap for additional safety
- Flexible installation, various covers available for floor slab installation
- Alternatively available as a module set
| Item no. | 730150.10S |
|---|---|
| GTIN | 4026092076484 |
| Price group | 10 |
Backwater valve Staufix DN 150, Floor slab, black, Type 2

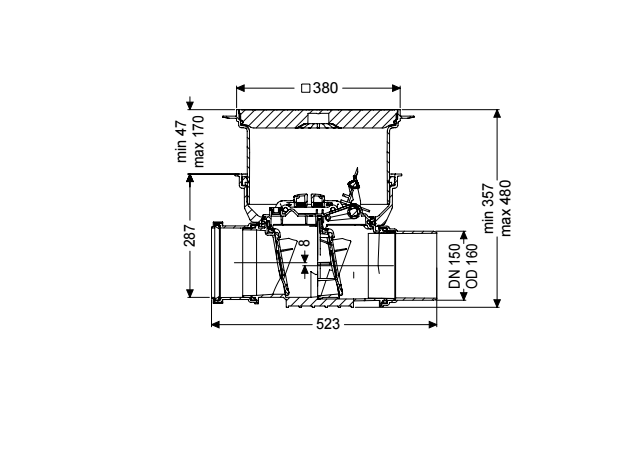

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Variant Stainless steel flap as rat protection: no Emergency closure: yes Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Dimensions Net weight: 8,42 kg Gross weight: 11 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 8 mm Installation depth: 341 - 464 mm Vertical adjustment: vertically adjustable upper section Width: 444 mm Length: 523 mm Packaging dimension: width: 486 mm Packaging dimension: height: 496 mm Packaging dimension: length: 586 mm Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Cover locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
| Audible alarm, opt./acoust. f. StaufixCo | 72222 | Show | |
| Radio receiver as switched socket | 72223 | Show | |
 | StaufixContr. lockable cover DN 90-100 | 72224 | Show |
 | StaufixContr. lockable cover DN125-200 | 72225 | Show |
 | Extension section deeper installation, with flange | 830070 | Show |
 | Extension section, flange & counterfl., | 830073 | Show |
 | Extension section Floor slab, for waterproof concrete | 830075 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Battery 3 V for control unit | 680665 | Show |
 | Seal Cover seal for Staufix, DN 125-200 | 686113 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Seal Lip seal, System 330 mm | 686115 | Show |
 | Staufix test funnel with seal | 70214 | Show |
 | Polymer backwater flap Ø 125/160 | 70232 | Show |
 | Flap housing with gasket Ø 125/160 | 70242 | Show |
 | Lockable cover, DN125-200, emergency clo | 72230 | Show |
 | Cover, watertight, tile-over | 830052 | Show |
 | Staufix Premium Spigot DN 150 | 83083 | Show |
 | Staufix Premium Socket DN 150 | 83087 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 150
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
floor slab installation
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
without sewage
- Backwater protection (rueckstauschutz): Type 2
- Stainless steel flap as rat protection (edelstahlklappe_rattenschutz): no
- Length (laenge): 523 mm
- Width (breite): 444 mm
