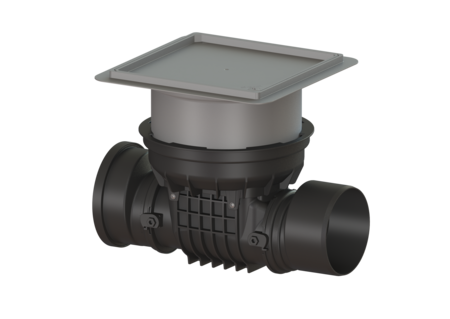

Backwater valve Staufix
DN 200, Floor slab, tileable, Type 2 R
PDF product data sheet
The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve.
- Optional rat protection flap for additional safety
- Flexible installation, various covers available for floor slab installation
- Alternatively available as a module set
| Item no. | 730200.10XR |
|---|---|
| GTIN | 4026092076576 |
| Price group | 10 |
Backwater valve Staufix DN 200, Floor slab, tileable, Type 2 R

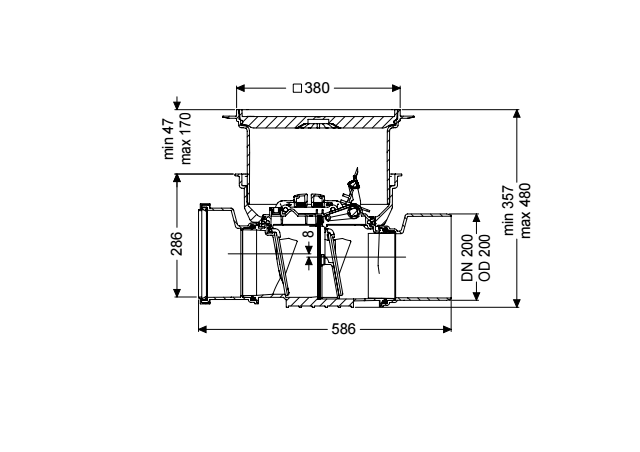

The backwater valve for wastewater without sewage is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves as an emergency closure to be closed by hand. Thanks to the modular KESSEL system, existing systems can easily be converted to the StaufixControl backwater valve. Type of wastewater: wastewater without sewage Installation situation: floor slab installation Version: Stainless steel flap as rat protection: yes Type of waterproofing layer: Waterproofing layer Emergency closure: yes Delivery state: Installation-ready (connection parts must be connected on site) Backwater protection: Type 2 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 200 Outer diameter (OD): 200 Note on nominal size: Hydraulics correspond to DN 150 Colour: black Standard: EN 13564 Dimensions: Length: 586 mm Width: 444 mm Cutout dimension, length: 750 mm Cutout dimension, width: 750 mm Tank: Installation depth: 341 - 464 mm Groundwater resistant from lower edge of base section: 3000 mm Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: tileable cover plate Cover material: Polymer Max. flooring height: 16 mm Load class: K 3 (EN 1253-1) Length: 366 mm Width: 366 mm Tightness: surface water resistant Locking: Lock & Lift Vertical drop between inlet and outlet: 8 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Remote signal generator for optical/acoustic. signal in the event of backwater | 72222 | |
|
Radio receiver as switched socket | 72223 | |
|
StaufixContr. lockable cover DN 90-100 | 72224 | |
|
StaufixContr. lockable cover DN125-200 | 72225 | |
|
Extension section deeper installation, with flange | 830070 | |
|
Extension section deeper installation, Flange/mating flange | 830073 | |
|
Extension section Floor slab, for waterproof concrete | 830075 |
| Title | Item no. | ||
|---|---|---|---|
|
Battery 3 V for control unit | 680665 | |
|
Seal Cover seal for Staufix, DN 125-200 | 686113 | |
|
Seal for cover plate, System 330 mm | 686114 | |
|
Seal Lip seal, System 330 mm | 686115 | |
|
Staufix test funnel with seal | 70214 | |
|
Polymer backwater flap Ø 125/160 | 70232 | |
|
Backwater fl, DN125/150, Staufix/Control | 70234 | |
|
Flap housing with gasket Ø 125/160 | 70242 | |
|
Lockable cover, DN125-200, emergency clo | 72230 | |
|
Cover, watertight, black | 830050 | |
|
Staufix Premium Spigot DN 200 | 83084 | |
|
Staufix Premium Socket DN 200 | 83088 |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance |
- Backwater protection (ATTR-151): Type 2
- Installation situation (ATTR-1):
floor slab installation
- Country of origin (ATTR-322): DE
- Nominal size (DN) (ATTR-118):
200
- Note on nominal size (ATTR-118B): Hydraulics correspond to DN 150
- Outer diameter (OD) (ATTR-147): 200
- Installation depth (ATTR-B2_VB): 341 MMT
- Vertical adjustment (ATTR-177): vertically adjustable upper section
- Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
- Length (ATTR-A6A): 586 MMT
- Width (ATTR-A6B): 444 MMT
- Cutout dimension, length (ATTR-160): 750 MMT
- Cutout dimension, width (ATTR-161): 750 MMT
- Volume (ATTR-320): 0.1 MTQ
- Packaging dimension: length (ATTR-325): 586 MMT
- Packaging dimension: width (ATTR-326): 486 MMT
- Packaging dimension: height (ATTR-327): 496 MMT
- Dimensions (ATTR-323): 586X486X496MM
- Number of packages (ATTR-321): 1
- Type of cover (ATTR-A21): tileable cover plate
- Load class (ATTR-A2B): K 3 (EN 1253-1)
- Tightness (ATTR-A2C): surface water resistant
- Locking (ATTR-A2D): Lock & Lift
- Cover material (ATTR-A2E):
Polymer
- Max. flooring height (ATTR-A2L): 16 MMT
- Length (ATTR-A2M): 366 MMT
- Width (ATTR-A2N): 366 MMT
- Type of waterproofing layer (ATTR-170): Waterproofing layer
- Emergency closure (ATTR-153): yes
- Stainless steel flap as rat protection (ATTR-155): yes
- Net weight (ATTR-A3A): 8.5 KGM
- Gross weight (ATTR-A3B): 11.1 KGM
- Groundwater resistant from lower edge of base section (ATTR-B12): 3,000 MMT
- Standard (ATTR-9): EN 13564
- CE marking (ATTR-A5B):
yes
- Number of mechanical backwater flaps (ATTR-154): 2
- External monitoring (ATTR-A8): LGA
- Declaration of Performance (DOP) (ATTR-292): 009-009
- Protection strategy (ATTR-311):
Central protection
- Type of wastewater (ATTR-6):
wastewater without sewage
- Position relative to sewer (ATTR-309):
Gradient to the sewer
- Function in the event of backwater (ATTR-312):
Protects in the event of backwater
- Colour (ATTR-102): black
- Note on type of wastewater (ATTR-187): Country-specific regulations related to the area of application can deviate
- Vertical drop between inlet and outlet (ATTR-176): 8 MMT
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Backwater valves
- Product type (M-ATTR-003): Backwater valve
- Product family (M-ATTR-004): Staufix
- Product name (M-ATTR-005): Staufix
