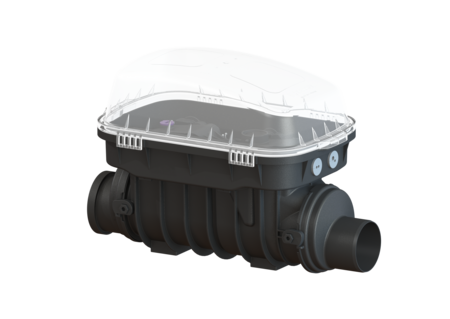

Controlfix clean out
DN 100, exposed
PDF product data sheet
The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station.
- Simple conversion to Staufix SWA
- Staufix FKA or Pumpfix F
- Fast
- toolless access for cleaning
- Available as a complete set or module set
| Item no. | 80100 |
|---|---|
| GTIN | 4026092002681 |
| Price group | 30 |
Controlfix clean out DN 100, exposed
The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. Type of wastewater: wastewater with and without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Colour: black Dimensions: Length: 486 mm Width: 350 mm Height: 422 mm Drain body: Socket version: including spigot and socket Coverage features: Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Length: 542 mm Width: 350 mm Height: 165 mm Locking: Clip closure Vertical drop between inlet and outlet: 9 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data |
- Installation situation (ATTR-1):
exposed drainage pipe
- Country of origin (ATTR-322): DE
- Nominal size (DN) (ATTR-118):
100
- Outer diameter (OD) (ATTR-147): 110
- Net weight (ATTR-A3A): 6 KGM
- Gross weight (ATTR-A3B): 9.0 KGM
- Delivery state (ATTR-189): installation-ready
- Length (ATTR-A6A): 486 MMT
- Width (ATTR-A6B): 350 MMT
- Height (ATTR-A6C): 422 MMT
- Volume (ATTR-320): 0.1 MTQ
- Packaging dimension: length (ATTR-325): 643.2 MMT
- Packaging dimension: width (ATTR-326): 350 MMT
- Packaging dimension: height (ATTR-327): 421.8 MMT
- Dimensions (ATTR-323): 643,2X350X421,8MM
- Number of packages (ATTR-321): 1
- Type of cover (ATTR-A21): Protective cover
- Colour of cover (ATTR-A2A): transparent
- Locking (ATTR-A2D): Clip closure
- Cover material (ATTR-A2E):
Polymer
- Length (ATTR-A2M): 542 MMT
- Width (ATTR-A2N): 350 MMT
- Height (ATTR-A2P): 165 MMT
- Socket version (ATTR-233): including spigot and socket
- Position relative to sewer (ATTR-309):
Gradient to the sewer
- Colour (ATTR-102): black
- Type of wastewater (ATTR-6):
wastewater with and without sewage
- Vertical drop between inlet and outlet (ATTR-176): 9 MMT
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Backwater valves
- Product type (M-ATTR-003): Clean out
- Product family (M-ATTR-004): Controlfix
- Product name (M-ATTR-005): Controlfix
