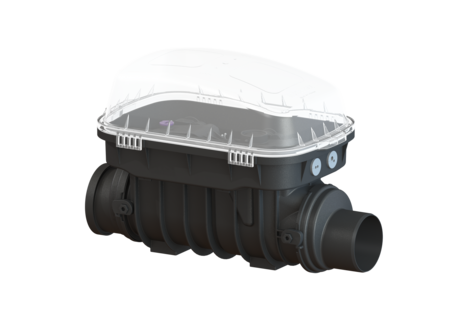

Controlfix clean out

DN 125, exposed

KESSEL Controlfix clean out, nominal size (DN) 125, transparent, wastewater for wastewater with and without sewage, locking Clip closure, exposed drainage pipe, type of cover Protective cover

  • Simple conversion to Staufix SWA
  • Fast, simple and toolless maintenance
  • Quick and toolless access for cleaning
Item no. 80125
GTIN 4026092002698
Price group 30

    Controlfix clean out DN 125, exposed
    The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. General characteristics Colour: black Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: for wastewater with and without sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Dimensions Net weight: 6 kg Gross weight: 11,5 kg Vertical drop between inlet and outlet: 9 mm Length: 486 mm Width: 350 mm Height: 422 mm Packaging dimension: length: 645,5 mm Packaging dimension: width: 350 mm Packaging dimension: height: 421,8 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Locking: Clip closure
      Title Item no.
      Title Item no.
      Title Item no.
    Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable 80093 Show
    Pumpfix F conversion kit DN 100-200, fr. 01/2011, exposed 80097 Show
    Cable prolongation set for pump 10 m 80891 Show
      Title Item no.
    Seal set 70318 Show
    Staufix Premium Controlfix cover 80011 Show
    Staufix Premium Controlfix cover 80012 Show
    FKA Staufix Protective cover 83031 Show
    Upper section 83032 Show
    Spigot DN 125, with seal 83082 Show
    Staufix Premium Socket DN 125 83086 Show
    • Nominal size (DN) (nennweite): 125
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): exposed drainage pipe
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Length (laenge): 486  mm
    • Width (breite): 350  mm
