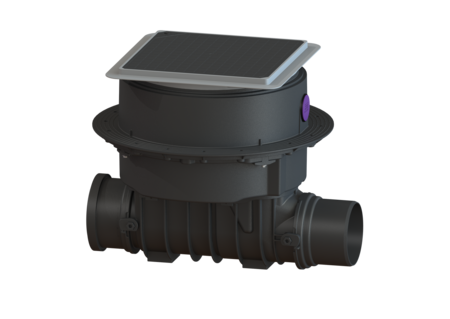

Controlfix clean out

DN 150, Floor slab, black

KESSEL Controlfix clean out, nominal size (DN) 150, black, wastewater for wastewater with and without sewage, locking Lock & Lift, floor slab installation, type of cover Cover plate

  • Simple conversion to Staufix SWA
  • Fast, simple and toolless maintenance
  • Quick and toolless access for cleaning
Item no. 80150S
GTIN 4026092004098
Price group 30

    Controlfix clean out DN 150, Floor slab, black
    The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. General characteristics Colour: black Nominal size (DN): 150 Outer diameter (OD): 160 mm Type of wastewater: for wastewater with and without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) Dimensions Net weight: 14 kg Gross weight: 17,32 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Vertical adjustment: vertically adjustable upper section Length: 486 mm Width: 590 mm Packaging dimension: length: 785 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Tank/drain body Socket version: including spigot and socket Coverage features Type of cover: Cover plate Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: L 15 (EN 1253-1) Tightness: surface water resistant
      Title Item no.
      Title Item no.
      Title Item no.
    Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable 80093 Show
    Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab 80098 Show
    Cable prolongation set for pump 10 m 80891 Show
    Extension section H: 200 mm 83070 Show
    Extension piece with flange&counterfl. 83073 Show
    Extension section H: 360 mm, with central flange 83075 Show
      Title Item no.
    Seal for upper section, from 07/2014 680150 Show
    Seal for cover plate, System 330 mm 686114 Show
    Seal set 70318 Show
    Staufix Premium Controlfix cover 80011 Show
    Staufix Premium Controlfix cover 80012 Show
    Cover plate 830050 Show
    Upper section system 400 830065 Show
    Spigot DN 150, with seal 83083 Show
    Staufix Premium Socket DN 150 83087 Show
    • Nominal size (DN) (nennweite): 150
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of wastewater (abwasserart_de): for wastewater with and without sewage
    • Type of cover (abdeckungsart): Cover plate
    • Length (laenge): 486  mm
    • Width (breite): 590  mm
    • (rueckstauschutz):
