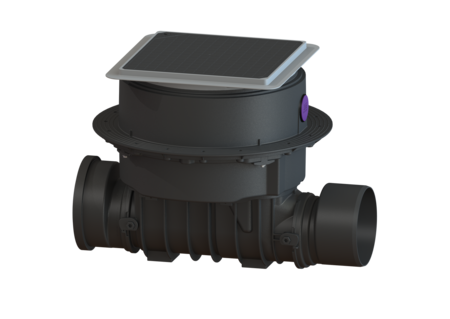

Controlfix clean out
DN 200, Floor slab, black
PDF product data sheet
The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station.
- Simple conversion to Staufix SWA
- Staufix FKA or Pumpfix F
- Fast
- toolless access for cleaning
- Available as a complete set or module set
| Item no. | 80200S |
|---|---|
| GTIN | 4026092046647 |
| Price group | 30 |
Controlfix clean out DN 200, Floor slab, black
The Premium clean out for faecal and faecal-free wastewater makes easy access to wastewater pipes possible for inspection and maintenance work. Thanks to the modular KESSEL system, existing systems can easily be converted to a Staufix SWA Premium backwater valve, Staufix FKA or Pumpfix F backwater pumping station. Type of wastewater: wastewater with and without sewage Installation situation: floor slab installation Version: Type of waterproofing layer: Waterproofing layer Delivery state: Installation-ready (connection parts must be connected on site) General characteristics: Nominal size (DN): 200 Outer diameter (OD): 200 Note on nominal size: Hydraulics correspond to DN 150 Colour: black Dimensions: Length: 486 mm Width: 590 mm Cutout dimension, length: 750 mm Cutout dimension, width: 750 mm Tank: Installation depth: 486 - 640 mm Groundwater resistant from lower edge of base section: 3,000 mm Drain body: Socket version: including spigot and socket Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Cover plate Cover material: Polymer Colour of cover: black Load class: L 15 (EN 1253-1) Length: 366 mm Width: 366 mm Tightness: surface water resistant Locking: Lock & Lift Vertical drop between inlet and outlet: 9 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Staufix FKA conversion kit DN 100-200, fr. 01/2011, 5 m cable | 80093 | |
|
Pumpfix F conversion kit DN 100-200, fr. 01/2011, Floor slab | 80098 | |
|
Cable prolongation set for pump 10 m | 80891 | |
|
Extension section H: 200 mm | 83070 | |
|
Extension section H: 234 mm, with flange and counter-flange | 83073 | |
|
Extension section H: 360 mm, with central flange | 83075 |
| Title | Item no. | ||
|---|---|---|---|
|
Seal for upper section, from 07/2014 | 680150 | |
|
Seal for cover plate, System 330 mm | 686114 | |
|
Dichtungsset I für Kessel-Staufix Premiu | 70318 | |
|
Staufix Premium Controlfix cover | 80011 | |
|
Staufix Premium Controlfix cover | 80012 | |
|
Cover, watertight, black | 830050 | |
|
Upper section System 400 | 830065 | |
|
Staufix Premium Spigot DN 200 | 83084 | |
|
Staufix Premium Socket DN 200 | 83088 |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data |
- Groundwater resistant from lower edge of base section (ATTR-B12): 3,000 MMT
- Installation situation (ATTR-1):
floor slab installation
- Country of origin (ATTR-322): DE
- Nominal size (DN) (ATTR-118):
200
- Note on nominal size (ATTR-118B): Hydraulics correspond to DN 150
- Outer diameter (OD) (ATTR-147): 200
- Net weight (ATTR-A3A): 14 KGM
- Gross weight (ATTR-A3B): 19.5 KGM
- Installation depth (ATTR-B2_VB): 486 MMT
- Vertical adjustment (ATTR-177): vertically adjustable upper section
- Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
- Length (ATTR-A6A): 486 MMT
- Width (ATTR-A6B): 590 MMT
- Cutout dimension, length (ATTR-160): 750 MMT
- Cutout dimension, width (ATTR-161): 750 MMT
- Volume (ATTR-320): 0.1 MTQ
- Packaging dimension: length (ATTR-325): 720.5 MMT
- Packaging dimension: width (ATTR-326): 590 MMT
- Packaging dimension: height (ATTR-327): 348 MMT
- Dimensions (ATTR-323): 720,5X590X348MM
- Number of packages (ATTR-321): 1
- Type of cover (ATTR-A21): Cover plate
- Colour of cover (ATTR-A2A): black
- Load class (ATTR-A2B): L 15 (EN 1253-1)
- Tightness (ATTR-A2C): surface water resistant
- Locking (ATTR-A2D): Lock & Lift
- Cover material (ATTR-A2E):
Polymer
- Length (ATTR-A2M): 366 MMT
- Width (ATTR-A2N): 366 MMT
- Type of waterproofing layer (ATTR-170): Waterproofing layer
- Socket version (ATTR-233): including spigot and socket
- Position relative to sewer (ATTR-309):
Gradient to the sewer
- Colour (ATTR-102): black
- Type of wastewater (ATTR-6):
wastewater with and without sewage
- Vertical drop between inlet and outlet (ATTR-176): 9 MMT
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Backwater valves
- Product type (M-ATTR-003): Clean out
- Product family (M-ATTR-004): Controlfix
- Product name (M-ATTR-005): Controlfix
