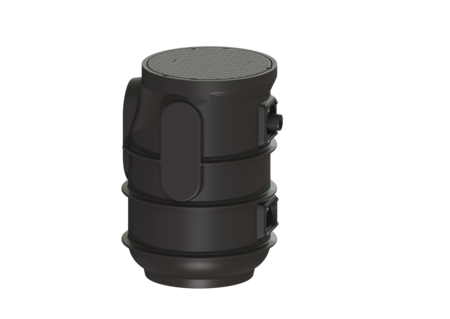

Pumping station Aquapump Small

Mono, Basic, GTF 600

The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability

  • Including backflow preventer for the pressure pipe
  • Including openings for inlet, ventilation and cable duct
  • Easy tool-free maintenance
Item no. 829810
GTIN 4026092092958
Price group 20

Pumping station Aquapump Small Mono, Basic, GTF 600
The pumping station without sewagel wastewater is suitable for underground installation and is equipped with a backflow preventer for the pressure pipe. The PE tank is resistant to domestic wastewater and includes a pedestrian class polymer cover plate. The pump with multi-vane impeller ensures maximum operating reliability. The components are pre-assembled for final assembly on site. Including openings for inlet. - tank made of PE, resistant to domestic wastewater - with a pedestrian class cover plate made of polymer - including backflow preventer for the pressure pipe - including openings for inlet, ventilation and cable duct - pump/s with multi-vane impeller for maximum operating reliability Variant Type of system: Single unit Installation: Wet installation Rim width: Float switch Backwater protection: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) System type: Mono Dimensions Net weight: 26 kg Gross weight: 32 kg Installation depth: 0 - 830 mm Width: 590 mm Height: 830 mm Length: 590 mm Packaging dimension: width: 700 mm Packaging dimension: height: 950 mm Packaging dimension: length: 800 mm Tank/drain body Pressure pipe connection (DN): 50 Pressure pipe connection (OD): 63 mm Number of inlets: 100 mm Pumping volume: 20 l Coverage features Type of cover: Round cover plate Colour of cover: black Width of cover: 600 mm Length of cover: 615 mm Cover locking: lockable Load class: up to 300 kg Pumping device Pump control: GTF 600 Number of pumps: 1 Weight: 6 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 2,9 A Length of mains cable for pump: 10 m Self-diagnosis system (SDS): I Insulation class: F Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 12 m³/h Max. pumping height: 8 m Speed: 2750 U/min Power P1: 0,65 kW Power P2: 0,4 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 30 mm Inspection window: 160 Switching level, float switch ON: 260 Control Motor protection switch: yes Level measurement instrument: Float switch Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
One-handed closure for backflow preventer 680018 Show
Seal for pressure pipe connection 680067 Show
Seal for upper section, from 07/2014 680150 Show
Pump connection with seal and flap 680475 Show
Pump connection Minilift, Aqualift S 680760 Show
Flap housing Mono, with pump connector 680761 Show
Turn fastener for pump connection lock 680762 Show
Cover plate round, incl. screws and seal 680801 Show
Impeller GTF 600, free passage 30 mm 680887 Show
Spiral housing GTF 600, free passage 30 mm 680888 Show
Pressure pipe DN 32, GTF 600 680961 Show
Replacement pump GTF 600 with float switch, 10 m 680963 Show
Pump hanger Mono, GTF 600 680967 Show
Bracket for ressure pipe, Mono 680969 Show
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Load class (belastungsklasse): up to 300 kg
  • Pump control (pumpe): GTF 600
  • Impeller type (laufrad_typ): Multi-vane impeller
  • (schaltgeraet):
