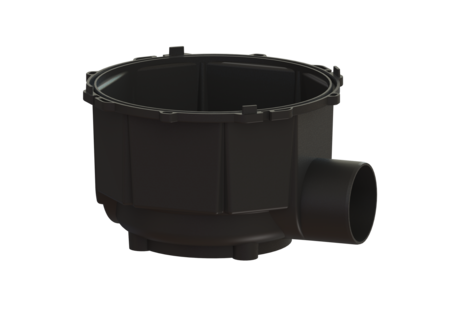

Drain body, yard/gutter drain

with outlet, DN 150, d: 450 mm

PDF product data sheet

The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap.

  • Variable solution for the connection to the sewer
  • For easy underground installation
Item no. 850010
GTIN 4026092002933
Price group 10

Drain body, yard/gutter drain with outlet, DN 150, d: 450 mm
The drain body for yard and gutter drains is made of polymer and, in this version, does not include an odour trap. General characteristics: Nominal size (DN): 150 Outer diameter (OD): 160 Dimensions: Length: 518 mm Width: 518 mm Height: 308 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Polymer Socket version: lateral
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
Odour trap for yard drains, DN 150 850142
  • Nominal size (DN) (ATTR-118): 150
  • Outer diameter (OD) (ATTR-147): 160
  • Country of origin (ATTR-322): DE
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Polymer
  • Socket version (ATTR-233): lateral
  • Length (ATTR-A6A): 518  MMT
  • Width (ATTR-A6B): 518  MMT
  • Height (ATTR-A6C): 308  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 450  MMT
  • Packaging dimension: width (ATTR-326): 450  MMT
  • Packaging dimension: height (ATTR-327): 308  MMT
  • Dimensions (ATTR-323): 450X450X308MM
  • Number of packages (ATTR-321): 0
  • Product class, temperature rating (ATTR-223): A
  • Complete article (ATTR-254): no
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Type of drainage (ATTR-260): Point drain
  • Type of drainage (ATTR-263): open channel
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Drain body, yard/gutter drain
  • Product family (M-ATTR-004): Yard/gutter drain
  • Temperature class (ATTR-253): A
