Yard drain

System 400, DN 100, D, 730 - 1080 mm

Back to table of variants PDF product data sheet

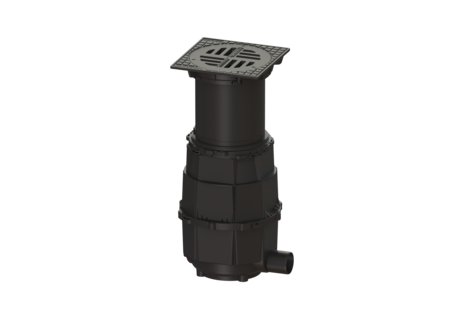

The polymer yard drain is used for point drainage and is equipped with a lip seal as well as a temporary protective cover.

Item no. 851102D
GTIN 4026092004333
Price group 10

    Yard drain System 400, DN 100, D, 730 - 1080 mm
    The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Variant System: 400 Heating: without Contents of sludge trap: yes Sealing water height: 100 mm Discharge rate (l/s) with 20 mm backwater: 4,5 General characteristics Colour: black Standard: EN 752 Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Net weight: 43 kg Gross weight: 49 kg Groundwater resistant from lower edge of base section: 500 mm Cutout dimension, width: 535 mm Cutout dimension, length: 585 mm Min. insertion depth: 55 mm Installation depth: 730 - 1080 mm Vertical adjustment: vertically adjustable upper section Packaging dimension: width: 535 mm Packaging dimension: height: 1080 mm Packaging dimension: length: 585 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer System: lateral Coverage features Type of cover: Round slotted cover Cover material: Grey iron Colour of cover: black Width of cover: 450 mm Length of cover: 450 mm Surface: EDM Load class: D 400 (EN 124) Rim length: 450 mm Rim material: 450 mm Shape of upper section: square Contents of sludge trap: yes Odour trap: included
