Yard drain

System 400, DN 150, A, 580-710 mm

Back to table of variants PDF product data sheet

The polymer yard drain is used for point drainage and is equipped with a lip seal as well as a temporary protective cover.

Item no. 851151A
GTIN 4026092004371
Price group 10

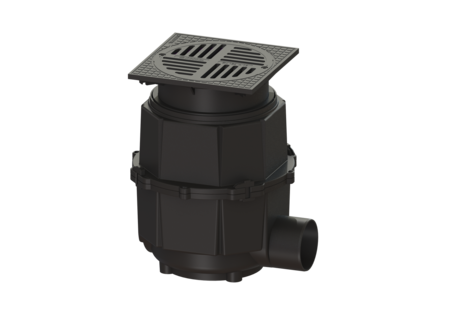

    Yard drain System 400, DN 150, A, 580-710 mm

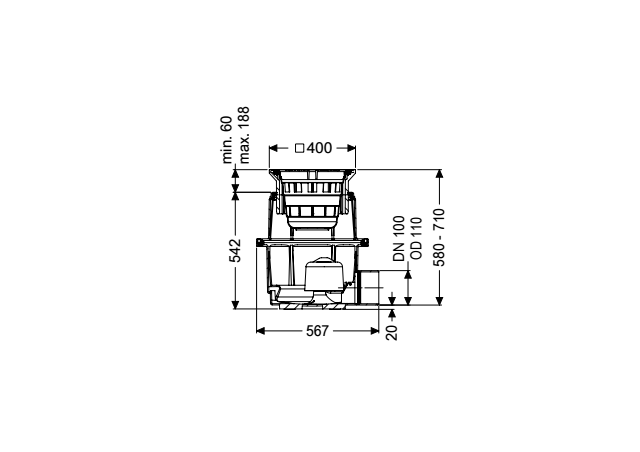

    The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Variant System: 400 Heating: without Contents of sludge trap: yes Waterproofing layer on the upper section: Connection flange Discharge rate (l/s) with 20 mm backwater: 4,5 General characteristics Colour: black Standard: EN 752 Nominal size (DN): 150 Outer diameter (OD): 160 mm Dimensions Vertical adjustment: 55 - 180 mm Net weight: 20 kg Gross weight: 20 kg Groundwater resistant from lower edge of base section: 500 mm Cutout dimension, width: 535 mm Cutout dimension, length: 585 mm Min. insertion depth: 55 mm Vertical installation: 55 - 185 Installation depth: 580 - 710 mm Vertical adjustment: vertically adjustable upper section Width: 500 mm Height: 580 mm Length: 563 mm Packaging dimension: width: 800 mm Packaging dimension: height: 610 mm Packaging dimension: length: 700 mm Tank/drain body Number of outlets: 1 Material of drain body: Polymer System: lateral Coverage features Type of cover: Slotted cover Cover material: Polymer Width of cover: 400 mm Length of cover: 400 mm Load class: A 15 (EN 124) Rim length: 400 mm Rim material: 400 mm Shape of upper section: square Contents of sludge trap: yes Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    		Hole saw for DN 100/125/150 500100 Show
    		Hole saw for DN 50/70/100 500101 Show
    Stainl. steel pressure flange system 400 83021 Show
    Membrane for System 400, Waterproof concrete 83022 Show
    Extension section System 400, Polymer 850101 Show
    Adapter d: 450 mm, with seal 850102 Show
    Adapter d: 358 mm, with seal 850103 Show
    Seal for pipe penetration, DN 50 850114 Show
    Seal for channel passage 75 mm 850116 Show
    Seal for channel passage 110 mm 850117 Show
    Seal for pipe penetration, DN 125 850118 Show
    Seal for pipe penetration, DN 150 850119 Show
    Cover plate Polymer, Load class A 850132 Show
    Lifting tool for System 400 odour trap 850143 Show
      Title Item no.
    Sludge bucket System 400, Polymer 850115 Show
    Slotted cover round, d: 362 mm, Polymer 850134 Show
    Odour trap for yard drains, DN 150 850142 Show
    • Nominal size (DN) (nennweite): 150
    • Material of drain body (material_grundkoerper): Polymer
    • Cover material (abdeckung_material): Polymer
    • System (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): A 15 (EN 124)
    • Installation depth (einbautiefe): 580  mm
    • Odour trap (geruchsverschluss): included
    • (form_Aufsatzstueck):
    • Contents of sludge trap (schlammeimer): yes
