Yard drain
System 400, DN 150, B, up to 1080 mm

PDF product data sheet

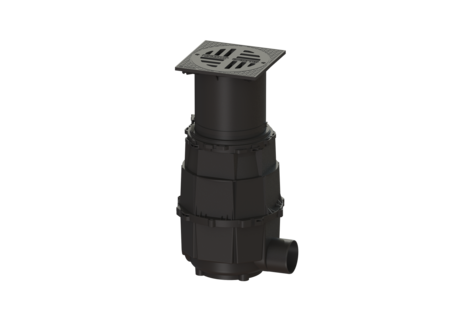

The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment.
- Different load classes available
- Height-adjustable complete system
- Easy underground installation
Item no. | 851152B |
---|---|
GTIN | 4026092004418 |
Price group | 10 |
Yard drain System 400, DN 150, B, up to 1080 mm
The polymer yard drain is used for point drainage and is resistant to aggressive wastewater. It is equipped with a sludge bucket and fuel resistant seals. The polymer upper section enables continuous height and level adjustment. Version: System: 400 Odour trap: included Sealing water height: 100 mm General characteristics: Nominal size (DN): 150 Colour: black Standard: EN 752 Dimensions: Cutout dimension, length: 585 mm Cutout dimension, width: 535 mm Min. insertion depth: 55 mm Tank: Number of outlets: 1 ST Installation depth: 730 - 1,080 mm Groundwater resistant from lower edge of base section: 500 mm Drain body: Material of drain body: Polymer Socket version: lateral Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Round slotted cover Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Length: 400 mm Width: 400 mm Surface: EDM Sludge bucket: yes Grating: Rim length: 400 mm Rim width: 400 mm Shape of upper section: square Discharge rate (l/s) with 20 mm backwater: 4.5 l/s
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
![]() |
Pressure sealing flange for upper section LW 400 in waterproof concrete | 83021 | |
![]() |
Drain body, yard/gutter drain closed, d: 450 mm | 850008 | |
![]() |
Extension section System 400, Polymer | 850101 | |
![]() |
Adapter d: 450 mm, with seal | 850102 | |
![]() |
Adapter d: 358 mm, with seal | 850103 | |
![]() |
Upper section vertically adjustable, Class A/B | 850120 | |
![]() |
Upper section vertically adjustable, Class D | 850121 |
Title | Item no. | ||
---|---|---|---|
![]() |
Drain body, yard/gutter drain with outlet, DN 150, d: 450 mm | 850010 | |
![]() |
Extension section System 400, Polymer | 850101 | |
![]() |
Adapter d: 358 mm, with seal | 850103 | |
![]() |
Connection wed Polymer, 4 each | 850111 | |
![]() |
Seal d: 368 mm | 850112 | |
![]() |
Seal d: 458 mm | 850113 | |
![]() |
Sludge bucket System 400, Polymer | 850115 | |
![]() |
Upper section vertically adjustable, Class A/B | 850120 | |
![]() |
Slotted cover round, d: 362 mm, Grey iron | 850135 | |
![]() |
Odour trap for yard drains, DN 150 | 850142 |
Catalog Page | |
---|---|
Manuals | |
CAD Data | |
BIM Data |
- Nominal size (DN) (ATTR-118):
150
- Complete article (ATTR-254): yes
- Electrical connection available (ATTR-256): no
- Connection to the BCS, BAC (ATTR-257): no
- Shape of upper section (ATTR-259): square
- Type of drainage (ATTR-260): Point drain
- Grating/channel shape (ATTR-261): round
- Type of drainage (ATTR-263): open channel
- Declaration of Performance (DOP) (ATTR-292): 009-083
- - (ATTR-340):
- Country of origin (ATTR-322): DE
- Rim length (ATTR-111B): 400 MMT
- Rim width (ATTR-111C): 400 MMT
- Discharge rate (l/s) with 20 mm backwater (ATTR-157): 4.5 LTS
- Installation depth (ATTR-B2_VB): 730 MMT
- Sealing water height (ATTR-128): 100 MMT
- Cutout dimension, length (ATTR-160): 585 MMT
- Cutout dimension, width (ATTR-161): 535 MMT
- Volume (ATTR-320): 0.3 MTQ
- Packaging dimension: length (ATTR-325): 585 MMT
- Packaging dimension: width (ATTR-326): 535 MMT
- Packaging dimension: height (ATTR-327): 1,080 MMT
- Dimensions (ATTR-323): 585X535X1080MM
- Number of packages (ATTR-321): 0
- Min. insertion depth (ATTR-328): 55 MMT
- Type of cover (ATTR-A21): Round slotted cover
- Colour of cover (ATTR-A2A): black
- Load class (ATTR-A2B): B 125 (EN 124)
- Cover material (ATTR-A2E): Grey iron
- Surface (ATTR-A2F): EDM
- Sludge bucket (ATTR-A2K): yes
- Length (ATTR-A2M): 400 MMT
- Width (ATTR-A2N): 400 MMT
- Odour trap (ATTR-115): included
- System (ATTR-244): 400
- Socket version (ATTR-233):
lateral
- Number of outlets (ATTR-B15B): 1 PCE
- Material of drain body (ATTR-232):
Polymer
- Net weight (ATTR-A3A): 47.5 KGM
- Gross weight (ATTR-A3B): 47.5 KGM
- Groundwater resistant from lower edge of base section (ATTR-B12): 500 MMT
- Wastewater quantity (ATTR-310):
High
- Standard (ATTR-9): EN 752
- Vertical adjustment (ATTR-177): vertically adjustable upper section
- Colour (ATTR-102): black
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Drains
- Product type (M-ATTR-003): Yard drain
- Product family (M-ATTR-004): Yard drains
