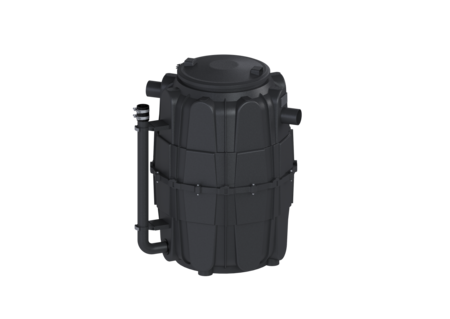

Grease separat. EasyClean Modular
free, NS 2, round, Direct disposal
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank (NS 0.5 with two tanks) made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty.
- Ideal where access is tight
- can be divided into several parts for insertion, for an insertion opening of max. 66 cm
- Low-maintenance operation
| Item no. | 93002.00/D1-R |
|---|---|
| Price group | 60 |
Grease separat. EasyClean Modular free, NS 2, round, Direct disposal
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty. Variant Sound absorption mat: two-piece chamber Disposal variant: Direct Nominal size (NS): 2 Disposal system: Disposal connection Type of disposal: manual General characteristics Material: PE Standard: EN 1825: 2004 Installation situation: free-standing installation Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Dimensions Net weight: 57 kg Gross weight: 68 kg Set-up area, height: 1395 mm Required access area, width: 1020 mm Required access area, height: 690 mm Required access area, length: 1100 mm Packaging dimension: width: 1000 mm Packaging dimension: height: 1500 mm Packaging dimension: length: 1300 mm Tank/drain body Outlet nominal size (DN): 100 Inlet nominal size (DN): 100 Coverage features Type of cover: Cover Cover locking: Quick-release closure Tightness: odour-tight Wastewater contents Separator contents: 400 l Hose: 200 l
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Manuals | |
|---|---|
| Declaration of Performance |
- Material (material):
PE
- Disposal system (entsorgungseinrichtung):
Disposal connection
- Installation situation (einbausituation):
free-standing installation
- Nominal size (NS) (nenngroesse): 2
