Grease separat. EasyClean Modular

free, NS 3, Standard, 2-part

PDF product data sheet

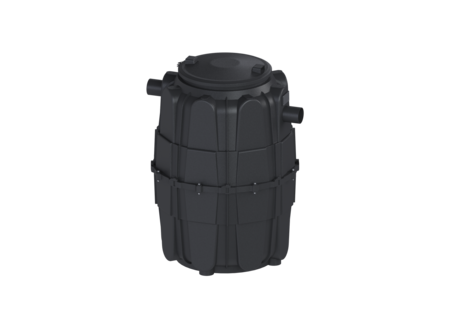

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank (NS 0.5 with two tanks) made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty.

  • Ideal where access is tight
  • can be divided into several parts for insertion, for an insertion opening of max. 66 cm
  • Low-maintenance operation
Item no. 93003-R
GTIN 4026092071243
Discount group 3

Grease separat. EasyClean Modular free, NS 3, Standard, 2-part
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank (NS 0.5 with two tanks) made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. Manual disposal is carried out with the tank open. 20 year polyethylene warranty. Version: Type of disposal: manual with suction hose Disposal variant: Standard Refill inlet in accordance with DIN 1988: no Nominal size (NS): 3 Inspection window: no Shredder-Mix-System: no SonicControl: no Delivery state: Installation-ready (connection parts must be connected on site) Installation situation: free-standing set-up General characteristics: Material: PE Standard: EN 1825: 2004, DIN 4040-100 Dimensions: Set-up area, height: 1,395 mm Required access area, length: 1,100 mm Required access area, width: 1,020 mm Required access area, height: 690 mm Height tank bottom up to centre section: 650 mm Height centre section to top edge of tank: 690 mm Tank: Inlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 Outlet nominal size (OD): 110 Distance pipe bottom inlet to tank bottom: 1,090 mm Distance pipe bottom outlet to tank bottom: 1,020 mm Chamber system: two-piece chamber Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS Coverage features: Type of cover: Cover Cover material: Polymer Colour of cover: black Tightness: odour-tight Locking: Quick-release closure Wastewater contents: Separator contents: 300 l Total volume: 600 l Contents of sludge trap: 300 l Storage quantity of grease: 120 l Control: Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
Sampling system DN 100/150, Vertical outlet 915870
Sampling system DN 100/150, Horizontal outlet 915871
  Title Item no.
  • Net weight (ATTR-A3A): 60  KGM
  • Storage quantity of grease (ATTR-208): 120  LTR
  • Total volume (ATTR-209): 600  LTR
  • Chamber system (ATTR-B8): two-piece chamber
  • Nominal size (NS) (ATTR-197): 3
  • Disposal variant (ATTR-198): Standard
  • Type of disposal (ATTR-199): manual with suction hose
  • Shredder-Mix-System (ATTR-201): no
  • SonicControl (ATTR-202): no
  • Inspection window (ATTR-203): no
  • Refill inlet in accordance with DIN 1988 (ATTR-204): no
  • Contents of sludge trap (ATTR-206): 300  LTR
  • Separator contents (ATTR-207): 300  LTR
  • Set-up area, height (ATTR-A7C): 1,395  MMT
  • Required access area, length (ATTR-217): 1,100  MMT
  • Required access area, width (ATTR-218): 1,020  MMT
  • Required access area, height (ATTR-219): 690  MMT
  • Height tank bottom up to centre section (ATTR-220): 650  MMT
  • Height centre section to top edge of tank (ATTR-222): 690  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 1,200  MMT
  • Packaging dimension: width (ATTR-326): 800  MMT
  • Packaging dimension: height (ATTR-327): 150  MMT
  • Dimensions (ATTR-323): 1020X1020X1395MM
  • Number of packages (ATTR-321): 1
  • Control unit (ATTR-S2): no
  • Connection inlet/outlet sockets (ATTR-B14B): PE-HD pipes in accordance with DIN 19537, HT pipes in accordance with DIN 19560, PP or AS
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 110  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 1,090  MMT
  • Outlet nominal size (DN) (ATTR-B15CA): 100
  • Outlet nominal size (OD) (ATTR-B15CB): 110
  • Distance pipe bottom outlet to tank bottom (ATTR-B15D): 1,020  MMT
  • Type of cover (ATTR-A21): Cover
  • Colour of cover (ATTR-A2A): black
  • Tightness (ATTR-A2C): odour-tight
  • Locking (ATTR-A2D): Quick-release closure
  • Cover material (ATTR-A2E): Polymer
  • Diameter (ATTR-A107): 630  MMT
  • Gross weight (ATTR-A3B): 60  KGM
  • Declaration of Performance (DOP) (ATTR-292): 009-024
  • Material (ATTR-101): PE
  • Standard (ATTR-9): EN 1825: 2004
  • Installation situation (ATTR-1): free-standing set-up
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Separator technology
  • Product type (M-ATTR-003): Grease separator
  • Product family (M-ATTR-004): EasyClean
  • Product name (M-ATTR-005): EasyClean Modular
