Grease separat. EasyClean Modular

free, NS 3, round, Direct disposal

PDF product data sheet

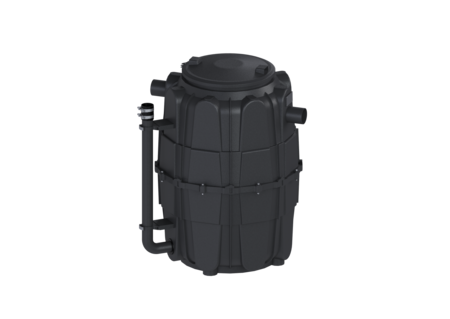

The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty.

  • Ideal where access is tight
  • can be divided into 3 parts for insertion, for an insertion opening of max. 66 cm
  • Direct disposal with the tank closed
Item no. 93003.00/D1-R
Discount group 3

Grease separat. EasyClean Modular free, NS 3, round, Direct disposal
The separator for greasy wastewater is suitable for free-standing set-up in frost-protected rooms and comes without metallic components in the tank. Thanks to the modular design, the separator can be inserted even where access is extremely tight. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap. A service access cover with odour-tight cover and quick-release closures makes easy access possible for cleaning and maintenance work. A direct disposal pipe socket is available for odour-reduced manual disposal. 20 year polyethylene warranty. Version: Disposal system: Disposal connection Disposal variant: Direct Nominal size (NS): 3 Delivery state: Installation-ready (connection parts must be connected on site) Scope of delivery: Storz-B coupling R 2 1/2" for disposal vehicle connection Installation situation: free-standing set-up General characteristics: Material: PE Standard: EN 1825: 2004, DIN 4040-100 Dimensions: Set-up area, height: 1,395 mm Required access area, length: 1,020 mm Required access area, width: 1,100 mm Required access area, height: 690 mm Tank: Inlet nominal size (DN): 100 mm Outlet nominal size (DN): 100 Chamber system: two-piece chamber Coverage features: Type of cover: Cover Tightness: odour-tight Locking: Quick-release closure Wastewater contents: Separator contents: 300 l Contents of sludge trap: 300 l
  Title Item no.
  Title Item no.
  Title Item no.
Sampling system DN 100/150, Vertical outlet 915870
Sampling system DN 100/150, Horizontal outlet 915871
  Title Item no.
  • Scope of delivery (ATTR-234): Storz-B coupling R 2 1/2" for disposal vehicle connection
  • Net weight (ATTR-A3A): 60  KGM
  • Chamber system (ATTR-B8): two-piece chamber
  • Nominal size (NS) (ATTR-197): 3
  • Disposal variant (ATTR-198): Direct
  • Contents of sludge trap (ATTR-206): 300  LTR
  • Separator contents (ATTR-207): 300  LTR
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Outlet nominal size (DN) (ATTR-B15CA): 100
  • Type of cover (ATTR-A21): Cover
  • Tightness (ATTR-A2C): odour-tight
  • Locking (ATTR-A2D): Quick-release closure
  • Set-up area, height (ATTR-A7C): 1,395  MMT
  • Required access area, length (ATTR-217): 1,020  MMT
  • Required access area, width (ATTR-218): 1,100  MMT
  • Required access area, height (ATTR-219): 690  MMT
  • Number of packages (ATTR-321): 0
  • Gross weight (ATTR-A3B): 60  KGM
  • Declaration of Performance (DOP) (ATTR-292): 009-024
  • Installation situation (ATTR-1): free-standing set-up
  • Disposal system (ATTR-200): Disposal connection
  • Material (ATTR-101): PE
  • Standard (ATTR-9): EN 1825: 2004
  • CE marking (ATTR-A5B): no
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Separator technology
  • Product type (M-ATTR-003): Grease separator
  • Product family (M-ATTR-004): EasyClean
  • Product name (M-ATTR-005): EasyClean Modular
