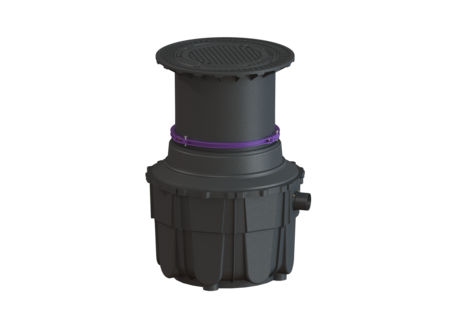

EasyOil oil/fuel separator

ground, LW 800, NS 1.5, Class II, B

Back to table of variants PDF product data sheet

The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty. Note: Approval must be obtained from the authorities responsible before ordering.

  • Permanent leak tightness up to ground level
  • Resistant to and suitable for up to 100 % share of E 10 and biodiesel (FAME)
  • Optionally with backwater valve according to DIN 13564
Item no. 99601.016B
GTIN 4026092030967
Price group 60

    EasyOil oil/fuel separator ground, LW 800, NS 1.5, Class II, B
    The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty. Note: Approval must be obtained from the authorities responsible before ordering. Installation situation: underground installation Version: Type of disposal: manual with suction hose Coalescence insert: no Nominal size (NS): 1.5 Load-bearing capacity (DIN 19901): E2 Delivery state: Installation-ready (connection parts must be connected on site) Separator class: II Range of applications for light liquids: from 0.85 to 0.95 g/cm3 General characteristics: Material: PE Dimensions: Required access area, length: 1,091 mm Required access area, width: 1,012 mm Excess depth: 50 mm Tank: Inlet nominal size (DN): 100 Inlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 Outlet nominal size (OD): 110 mm Distance pipe bottom inlet to tank bottom: 508 mm Distance pipe bottom outlet to tank bottom: 461 mm Installation depth: 518 - 942 mm Clear width of tank (LW): 800 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Vertical adjustment: vertically adjustable upper section, can be tilted by 5 degrees Coverage features: Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Length: 648 mm Width: 648 mm Height: 95 mm Tightness: odour-tight and surface water resistant Locking: unlocked Wastewater contents: Total volume: 230 l Contents of sludge trap: 130 l Storage quantity of light liquid: 70.5 l Control: Control unit: no
      Title Item no.
      Title Item no.
      Title Item no.
    Sampling chamber LW 1000, DN 100, Class B 9151010B Show
    Extension section System 400, H: 600 mm, can be shortened 915402 Show
    Sampling chamber LW 400, DN 100/150, Load class A 915880A Show
    Sampling chamber LW 400, DN 100/150, Class B 915880B Show
    Sampling chamber d: 450 mm, DN 100, Load class A 915881A Show
    Sampling chamber d: 450 mm, DN 100, Class B 915881B Show
    Extension section d: 600 mm, Extension 500 mm 917460 Show
      Title Item no.
    Clamping ring for upper sections d: 600 mm 680276 Show
    Seal for upper section LW 600 680277 Show
    Cover plate Class B, grey iron, unlocked 680321 Show
    Upper section d: 630 mm, surface water resistant 680324 Show
    Outlet structure for oil/fuel separator NS 1.5 680333 Show
    Adapter Plate with socket 680334 Show
    Seal for outlet sockets 680335 Show
    • Separator class (ATTR-240): II
    • Country of origin (ATTR-322): DE
    • Total volume (ATTR-209): 230  LTR
    • Storage quantity of light liquid (ATTR-210): 70.5  LTR
    • Excess depth (ATTR-215): 50  MMT
    • Net weight (ATTR-A3A): 108  KGM
    • Installation depth (ATTR-B2_VB): 518  MMT
    • Nominal size (NS) (ATTR-197): 1.5
    • Type of disposal (ATTR-199): manual with suction hose
    • Coalescence insert (ATTR-205): no
    • Load-bearing capacity (DIN 19901) (ATTR-305): E2
    • Type of cover (ATTR-A21): Cover plate
    • Colour of cover (ATTR-A2A): black
    • Load class (ATTR-A2B): B 125 (EN 124)
    • Tightness (ATTR-A2C): odour-tight and surface water resistant
    • Locking (ATTR-A2D): unlocked
    • Cover material (ATTR-A2E): Grey iron
    • Length (ATTR-A2M): 648  MMT
    • Width (ATTR-A2N): 648  MMT
    • Height (ATTR-A2P): 95  MMT
    • Contents of sludge trap (ATTR-206): 130  LTR
    • Required access area, length (ATTR-217): 1,091  MMT
    • Required access area, width (ATTR-218): 1,012  MMT
    • Volume (ATTR-320): 1.7  MTQ
    • Packaging dimension: length (ATTR-325): 1,200  MMT
    • Packaging dimension: width (ATTR-326): 1,000  MMT
    • Packaging dimension: height (ATTR-327): 1,450  MMT
    • Dimensions (ATTR-323): 1200X1100X1450MM
    • Number of packages (ATTR-321): 1
    • Clear width of tank (LW) (ATTR-B14): 800  MMT
    • Connection inlet/outlet sockets (ATTR-B14B): PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS
    • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
    • Inlet nominal size (OD) (ATTR-B1CB): 110  MMT
    • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 508  MMT
    • Outlet nominal size (DN) (ATTR-B15CA): 100
    • Outlet nominal size (OD) (ATTR-B15CB): 110
    • Distance pipe bottom outlet to tank bottom (ATTR-B15D): 461  MMT
    • Control unit (ATTR-S2): no
    • Gross weight (ATTR-A3B): 119  KGM
    • Note on operation / installation (ATTR-236): Vor Bestellung ist die Genehmigung bei der zuständigen Behörde einzuholen.
    • Declaration of Performance (DOP) (ATTR-292): 009-016
    • Installation situation (ATTR-1): underground installation
    • Material (ATTR-101): PE
    • Vertical adjustment (ATTR-177): vertically adjustable upper section, can be tilted by 5 degrees
    • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
    • Range of applications for light liquids (ATTR-248): from 0.85 to 0.95 g/cm3
    • Brand (M-ATTR-001): KESSEL
    • Product group (M-ATTR-002): Separator technology
    • Product type (M-ATTR-003): Oil/fuel separators
    • Product family (M-ATTR-004): EasyOil
    • Product name (M-ATTR-005): EasyOil ground
