EasyOil oil/fuel separator

ground, LW 800, NS 1.5, Class II, D

PDF product data sheet

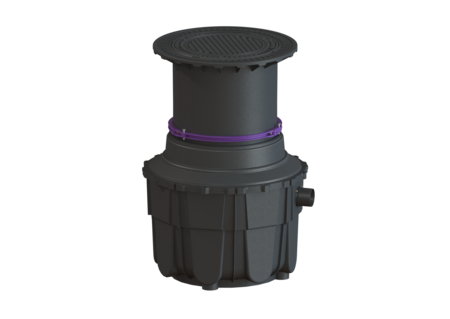

The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty. Note: Approval must be obtained from the authorities responsible before ordering.

  • Permanent leak tightness up to ground level
  • Resistant to and suitable for up to 100 % share of E 10 and biodiesel (FAME)
  • Optionally with backwater valve according to DIN 13564
Item no. 99601.016D
GTIN 4026092030974
Discount group 3

EasyOil oil/fuel separator ground, LW 800, NS 1.5, Class II, D
The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty. Note: Approval must be obtained from the authorities responsible before ordering. Version: Type of disposal: manual with suction hose Coalescence insert: no Nominal size (NS): 1.5 Load-bearing capacity (DIN 19901): E4 Delivery state: Installation-ready (connection parts must be connected on site) Separator class: II Range of applications for light liquids: from 0.85 to 0.95 g/cm3 Installation situation: underground installation General characteristics: Material: PE Dimensions: Required access area, length: 1,091 mm Required access area, width: 1,012 mm Excess depth: 50 mm Tank: Inlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Outlet nominal size (DN): 100 Outlet nominal size (OD): 110 Distance pipe bottom inlet to tank bottom: 508 mm Distance pipe bottom outlet to tank bottom: 461 mm Installation depth: 518 - 942 mm Clear width of tank (LW): 800 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Vertical adjustment: vertically adjustable upper section, can be tilted by 5 degrees Coverage features: Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: D 400 (EN 124) Length: 680 mm Width: 680 mm Height: 50 mm Tightness: odour-tight and surface water resistant Locking: unlocked Wastewater contents: Total volume: 230 l Contents of sludge trap: 130 l Storage quantity of light liquid: 70.5 l Control: Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
Sampling chamber LW 1000, DN 100, Class D 9151010D
Extension section System 400, H: 600 mm, can be shortened 915402
Sampling chamber LW 400, DN 100/150, Class D 915880D
Sampling chamber d: 450 mm, DN 100, Class D 915881D
Extension section d: 600 mm, Extension 500 mm 917460
  Title Item no.
Clamping Ring for upper section 680276
Joint seal 680277
Upper section, cl. B 680324
Outlet part NS 1,5 oil separator 680333
Adapter plate NS 1,5 oil separator 680334
Adapter seal NS 1,5 oil separator 680335
Cast iron separatorcover cl. D 916803
  • Separator class (ATTR-240): II
  • Country of origin (ATTR-322): DE
  • Total volume (ATTR-209): 230  LTR
  • Storage quantity of light liquid (ATTR-210): 70.5  LTR
  • Excess depth (ATTR-215): 50  MMT
  • Net weight (ATTR-A3A): 150  KGM
  • Installation depth (ATTR-B2_VB): 518  MMT
  • Nominal size (NS) (ATTR-197): 1.5
  • Type of disposal (ATTR-199): manual with suction hose
  • Coalescence insert (ATTR-205): no
  • Load-bearing capacity (DIN 19901) (ATTR-305): E4
  • Type of cover (ATTR-A21): Cover plate
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): D 400 (EN 124)
  • Tightness (ATTR-A2C): odour-tight and surface water resistant
  • Locking (ATTR-A2D): unlocked
  • Cover material (ATTR-A2E): Grey iron
  • Length (ATTR-A2M): 680  MMT
  • Width (ATTR-A2N): 680  MMT
  • Height (ATTR-A2P): 50  MMT
  • Contents of sludge trap (ATTR-206): 130  LTR
  • Required access area, length (ATTR-217): 1,091  MMT
  • Required access area, width (ATTR-218): 1,012  MMT
  • Volume (ATTR-320): 1.7  MTQ
  • Packaging dimension: length (ATTR-325): 1,100  MMT
  • Packaging dimension: width (ATTR-326): 1,050  MMT
  • Packaging dimension: height (ATTR-327): 1,500  MMT
  • Dimensions (ATTR-323): 1200X1100X1450MM
  • Number of packages (ATTR-321): 0
  • Clear width of tank (LW) (ATTR-B14): 800  MMT
  • Connection inlet/outlet sockets (ATTR-B14B): PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 110  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 508  MMT
  • Outlet nominal size (DN) (ATTR-B15CA): 100
  • Outlet nominal size (OD) (ATTR-B15CB): 110
  • Distance pipe bottom outlet to tank bottom (ATTR-B15D): 461  MMT
  • Control unit (ATTR-S2): no
  • Gross weight (ATTR-A3B): 161  KGM
  • Note on operation / installation (ATTR-236): Vor Bestellung ist die Genehmigung bei der zuständigen Behörde einzuholen.
  • Declaration of Performance (DOP) (ATTR-292): 009-016
  • Installation situation (ATTR-1): underground installation
  • Material (ATTR-101): PE
  • Vertical adjustment (ATTR-177): vertically adjustable upper section, can be tilted by 5 degrees
  • Delivery state (ATTR-189): Installation-ready (connection parts must be connected on site)
  • Range of applications for light liquids (ATTR-248): from 0.85 to 0.95 g/cm3
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Separator technology
  • Product type (M-ATTR-003): Oil/fuel separators
  • Product family (M-ATTR-004): EasyOil
  • Product name (M-ATTR-005): EasyOil ground
