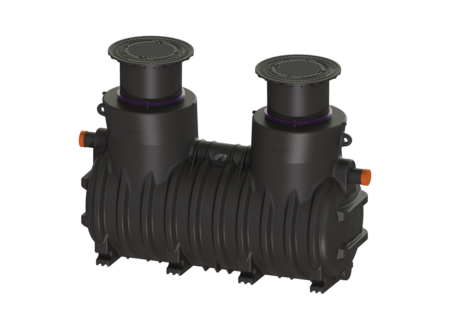

EasyOil oil/fuel separator

NS 10, Class II, 2600 l, D, In/outlet PE

PDF product data sheet

The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty.

Item no. 99610.15DEX
Discount group 3

EasyOil oil/fuel separator NS 10, Class II, 2600 l, D, In/outlet PE
The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty. Version: Type of disposal: manual with suction hose Coalescence insert: no Nominal size (NS): 10 Load-bearing capacity (DIN 19901): E4 Separator class: II Dimensions: Max. length: 3,162 mm Required access area, length: 2,910 mm Required access area, width: 1,200 mm T-DSC: 155 mm DSC: 700 - 1,500 mm Excess depth: 100 mm Tank: Inlet nominal size (DN): 150 mm Inlet nominal size (OD): 160 mm Outlet nominal size (DN): 150 Outlet nominal size (OD): 160 Distance pipe bottom inlet to tank bottom: 1,110 mm Distance pipe bottom outlet to tank bottom: 1,070 mm Installation depth: 840 - 1,240 mm Groundwater resistant from lower edge of base section: 1,320 mm Clear width of entry (LW): 600 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Coverage features: Type of cover: Cover plate Cover material: Grey iron Colour of cover: black Load class: D 400 (EN 124) Length: 680 mm Width: 680 mm Height: 50 mm Tightness: odour-tight and surface water resistant Locking: unlocked Wastewater contents: Total volume: 2,600 l Contents of sludge trap: 1,500 l Storage quantity of light liquid: 267 l Control: Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Separator class (ATTR-240): II
  • Country of origin (ATTR-322): DE
  • Total volume (ATTR-209): 2,600  LTR
  • Storage quantity of light liquid (ATTR-210): 267  LTR
  • Excess depth (ATTR-215): 100  MMT
  • Net weight (ATTR-A3A): 680  KGM
  • Installation depth (ATTR-B2_VB): 840  MMT
  • Control unit (ATTR-S2): no
  • Type of cover (ATTR-A21): Cover plate
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): D 400 (EN 124)
  • Tightness (ATTR-A2C): odour-tight and surface water resistant
  • Locking (ATTR-A2D): unlocked
  • Cover material (ATTR-A2E): Grey iron
  • Length (ATTR-A2M): 680  MMT
  • Width (ATTR-A2N): 680  MMT
  • Height (ATTR-A2P): 50  MMT
  • Required access area, length (ATTR-217): 2,910  MMT
  • Required access area, width (ATTR-218): 1,200  MMT
  • Max. length (ATTR-216): 3,162  MMT
  • T-DSC (ATTR-212): 155  MMT
  • DSC (ATTR-213_VB): 700  MMT
  • Volume (ATTR-320): 7.9  MTQ
  • Packaging dimension: length (ATTR-325): 2,860  MMT
  • Packaging dimension: width (ATTR-326): 1,200  MMT
  • Packaging dimension: height (ATTR-327): 2,300  MMT
  • Dimensions (ATTR-323): 2860X1200X2300MM
  • Number of packages (ATTR-321): 0
  • Contents of sludge trap (ATTR-206): 1,500  LTR
  • Clear width of entry (LW) (ATTR-B13): 600  MMT
  • Connection inlet/outlet sockets (ATTR-B14B): PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS
  • Inlet nominal size (DN) (ATTR-B1CA): 150  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 160  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 1,110  MMT
  • Outlet nominal size (DN) (ATTR-B15CA): 150
  • Outlet nominal size (OD) (ATTR-B15CB): 160
  • Distance pipe bottom outlet to tank bottom (ATTR-B15D): 1,070  MMT
  • Groundwater resistant from lower edge of base section (ATTR-B12): 1,320  MMT
  • Nominal size (NS) (ATTR-197): 10
  • Type of disposal (ATTR-199): manual with suction hose
  • Coalescence insert (ATTR-205): no
  • Load-bearing capacity (DIN 19901) (ATTR-305): E4
  • Gross weight (ATTR-A3B): 680  KGM
