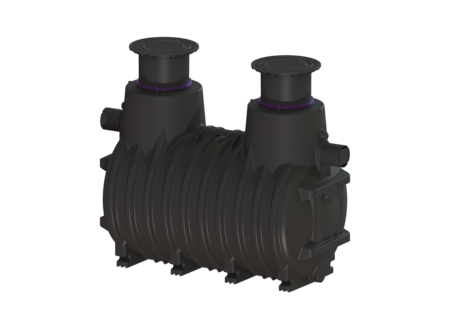

EasyOil oil/fuel separator

ground, NS 20, Class II, 5800 l, B

The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. On-site connection to inlet and outlet with PE-HD pipes according to DIN 19537, PVC pipes according to DIN 19534, PP or AS on factory stainless steel pipe sockets possible. When selecting the appropriate seals and pipe materials, the applicable standards must be observed. 20 year polyethylene warranty.

    • Permanent leak tightness up to ground level
    • Resistant to and suitable for up to 100 % share of biodiesel (FAME)
    • Suitable for filling stations with high-performance filling pumps, E10 and biodiesel fuels
    Item no. 99620.80BEX
    Price group 60

      EasyOil oil/fuel separator ground, NS 20, Class II, 5800 l, B
      The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL. 20 year polyethylene warranty. Variant Nominal size (NS): 20 Type of disposal: manual with suction hose Coalescence insert: no General characteristics Separator class: II Dimensions Net weight: 595 kg Gross weight: 595 kg Load-bearing capacity (DIN 19901): 700 - 1.800 Installation depth: 870 - 1250 mm Required access area, width: 1760 mm Required access area, length: 3110 mm Width: 1760 mm Height: 2275 mm Length: 3105 mm Packaging dimension: width: 1760 mm Packaging dimension: height: 2300 mm Packaging dimension: length: 3060 mm Tank/drain body Distance pipe bottom outlet to tank bottom: 1600 mm Distance pipe bottom inlet to tank bottom: 1630 mm Outlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 Inlet nominal size (DN): 200 mm Inlet nominal size (DN): 200 Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Coverage features Cover material: Grey iron Colour of cover: black Load class: B 125 (EN 124) Wastewater contents Total volume: 5800 l Hose: 4000 l Sealing water height: 470 l Control Max. permissible switching frequency: no
        Title Item no.
        Title Item no.
        Title Item no.
        Title Item no.
      Test Reports and Certificates
      • Nominal size (NS) (nenngroesse): 20
      • Load class (belastungsklasse): B 125 (EN 124)
      • Installation depth (einbautiefe): 870  mm
      • Total volume (gesamtvolumen): 5,800  l
