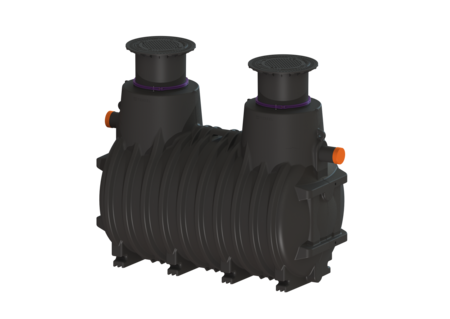

EasyOil oil/fuel separator

ground, NS 20, Class II, 5800 l, D

PDF product data sheet

The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty.

Item no. 99620.80DEX
Discount group 3

EasyOil oil/fuel separator ground, NS 20, Class II, 5800 l, D
The separator for light liquids is suitable for installation in the ground. The collecting tank made of permanently resistant polymer (PE) is equipped with an integrated sludge trap and an automatic closure device. One or more surface water resistant covers makes easy access possible for cleaning and maintenance work. A load distribution slab must be installed on site for load class D. The reinforcement drawings are available from KESSEL AG. 20 year polyethylene warranty. Version: Type of disposal: manual with suction hose Coalescence insert: no Nominal size (NS): 20 Load-bearing capacity (DIN 19901): E4 Separator class: II Dimensions: Required access area, length: 3,110 mm Required access area, width: 180 mm T-DSC: 870 mm Excess depth: 130 mm Tank: Inlet nominal size (OD): 200 mm Outlet nominal size (DN): 200 Outlet nominal size (OD): 200 Distance pipe bottom inlet to tank bottom: 1,630 mm Distance pipe bottom outlet to tank bottom: 1,600 mm Connection inlet/outlet sockets: PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS Coverage features: Load class: D 400 (EN 124) Wastewater contents: Total volume: 5,800 l Contents of sludge trap: 4,000 l Storage quantity of light liquid: 470 l Control: Control unit: no
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Separator class (ATTR-240): II
  • Total volume (ATTR-209): 5,800  LTR
  • Storage quantity of light liquid (ATTR-210): 470  LTR
  • Excess depth (ATTR-215): 130  MMT
  • Net weight (ATTR-A3A): 850  KGM
  • Control unit (ATTR-S2): no
  • Load class (ATTR-A2B): D 400 (EN 124)
  • Required access area, length (ATTR-217): 3,110  MMT
  • Required access area, width (ATTR-218): 180  MMT
  • T-DSC (ATTR-212): 870  MMT
  • Volume (ATTR-320): 12.4  MTQ
  • Packaging dimension: length (ATTR-325): 3,060  MMT
  • Packaging dimension: width (ATTR-326): 1,760  MMT
  • Packaging dimension: height (ATTR-327): 2,300  MMT
  • Number of packages (ATTR-321): 0
  • Contents of sludge trap (ATTR-206): 4,000  LTR
  • Connection inlet/outlet sockets (ATTR-B14B): PE-HD pipes in accordance with DIN 19537, PVC-KG pipes in accordance with DIN 19534, PP or AS
  • Inlet nominal size (OD) (ATTR-B1CB): 200  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 1,630  MMT
  • Outlet nominal size (DN) (ATTR-B15CA): 200
  • Outlet nominal size (OD) (ATTR-B15CB): 200
  • Distance pipe bottom outlet to tank bottom (ATTR-B15D): 1,600  MMT
  • Nominal size (NS) (ATTR-197): 20
  • Type of disposal (ATTR-199): manual with suction hose
  • Coalescence insert (ATTR-205): no
  • Load-bearing capacity (DIN 19901) (ATTR-305): E4
  • Gross weight (ATTR-A3B): 850  KGM
