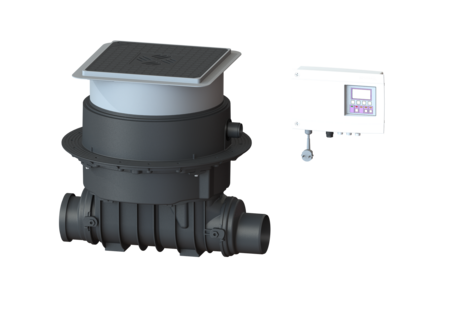

Backwater lifting station Ecolift
DN 125, Floor slab, black
The backwater lifting station for faecal and non-faecal wastewater is equipped with one pump and one motor-driven closure system. The pipe cross-section is normally open and the water drains to the sewer via natural fall. Backwater is detected by an optical probe, which causes the motor-driven closure system to close automatically. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater above the backwater level and into the sewer. Connection hole in the drain body for installation in the ground, incl. seal for pressure pipe and cable conduit. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface.
- Hybrid function: uses the natural fall to the sewer - pump is only used in case of backwater
- Quiet and energy-saving
- Double safety due to backwater flap and pressure loop
| Item no. | 21125S |
|---|---|
| GTIN | 4026092046814 |
| Price group | 20 |
Backwater lifting station Ecolift DN 125, Floor slab, black
The backwater lifting station for faecal and non-faecal wastewater is equipped with one pump and one motor-driven closure system. The pipe cross-section is normally open and the water drains to the sewer via natural fall. Backwater is detected by an optical probe, which causes the motor-driven closure system to close automatically. During the backwater phase, the water drains via a pressure pipe, which carries the wastewater above the backwater level and into the sewer. Connection hole in the drain body for installation in the ground, incl. seal for pressure pipe and cable conduit. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Variant Emergency closure: yes Passage seal for conduit pipe (DN): 50 Rim width: Control unit Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 General characteristics Colour: black Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Inlet max. scoring (DN): Z-53.2-487 Motor type: KSM 140 Protection class (pump): IP 68 (3m/48h) Dimensions Net weight: 28 kg Gross weight: 33,5 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 750 mm Cutout dimension, length: 750 mm Vertical drop between inlet and outlet: 9 mm Installation depth: 516 - 669 mm Vertical adjustment: vertically adjustable upper section Width: 590 mm Length: 645 mm Packaging dimension: width: 615 mm Packaging dimension: height: 550 mm Packaging dimension: length: 785 mm Tank/drain body Nominal pressure (PN): 6 Pressure pipe connection (OD): 40 mm System: including spigot and socket Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Cover locking: Lock & Lift Load class: L 15 (EN 1253-1) Odour trap: Multistop Pumping device Pump control: SPZ 1000 Number of pumps: 1 Weight: 10 kg Connection type: coded plug Rated current: 5,2 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,97 Protection class control unit: IP 68 (3m/48h) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Control Standby power: 5 W Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class probe: IP 54 Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: yes GSM interface: no USB interface: no Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
| Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show | |
 | Clearance code for potential-free contact | 80077 | Show |
 | 10 m probe cable extension set | 80889 | Show |
 | Cable extension set for motor 10 m | 80890 | Show |
 | Cable prolongation set for pump 10 m | 80891 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension piece with flange&counterfl. | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
| Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Cover Ecolift outlet side | 21056 | Show |
 | Pump cover inlet side | 28054 | Show |
 | Vent for Pumpfix Premium | 28060 | Show |
 | Active carbon filter | 28061 | Show |
 | Control unit Comfort 230V, from 01/2011 | 28071 | Show |
 | KTP1000 cutting assembly replacement set | 28075 | Show |
 | Replacement pump AqualiftF/Pumpfix F | 28351 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
 | Flap holder for motor-driven and mechanical flap | 680101 | Show |
 | Pressure pipe connection Ecolift, installation in floor slab | 680105 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Drain connection DN 70, with seal | 680215 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Gasket set (Pumpfix, Ecolift) | 70319 | Show |
 | Motor-driven backwater flap Premium | 80038 | Show |
 | Insert part f. motor-driven flap Premium | 80039 | Show |
 | Staufix FKA drive motor (KSM 140) 5m | 80076 | Show |
 | Spare part set optical probe | 80888 | Show |
 | Adapter set optical probe | 80892 | Show |
 | Cover plate 366 x 366 mm w. flat drain body, Multistop, black | 830046 | Show |
 | Upper section System 400 | 830065 | Show |
 | Staufix Premium Spigot DN 125 | 83082 | Show |
 | Staufix Premium Socket DN 125 | 83086 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Approval | |
| Test Reports and Certificates | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 125
- Type of wastewater (abwasserart_de):
with sewage
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241795
- Installation situation (einbausituation):
floor slab installation
- Type of cover (abdeckungsart): Cover plate with slotted cover
- Length (laenge): 645 mm
- Width (breite): 590 mm
