Floor drains

High performance. Absolutely hygienic. Incredibly durable: You can rely on our floor drains from the Ferrofix range. This makes them all-rounders for trade and industry.

There is no room for compromise in areas where there are special rules concerning hygiene. Thanks to the stainless steel grade 1.4301 (1.4571 on request) used, the floor drains in the Ferrofix product range are suitable for even the most demanding applications, such as in restaurants.

With the two modular systems 125 and 200, we offer you a wealth of possible combinations for our floor drains. The Ferrofix is also available on request as an extremely flat customised version made of 304 stainless steel – ideal for renovation projects. With low installation depths ranging from 100 to 107 mm, the renovation versions are particularly compact. The one-piece drains are supplied with an optional connection rim or glued flange.

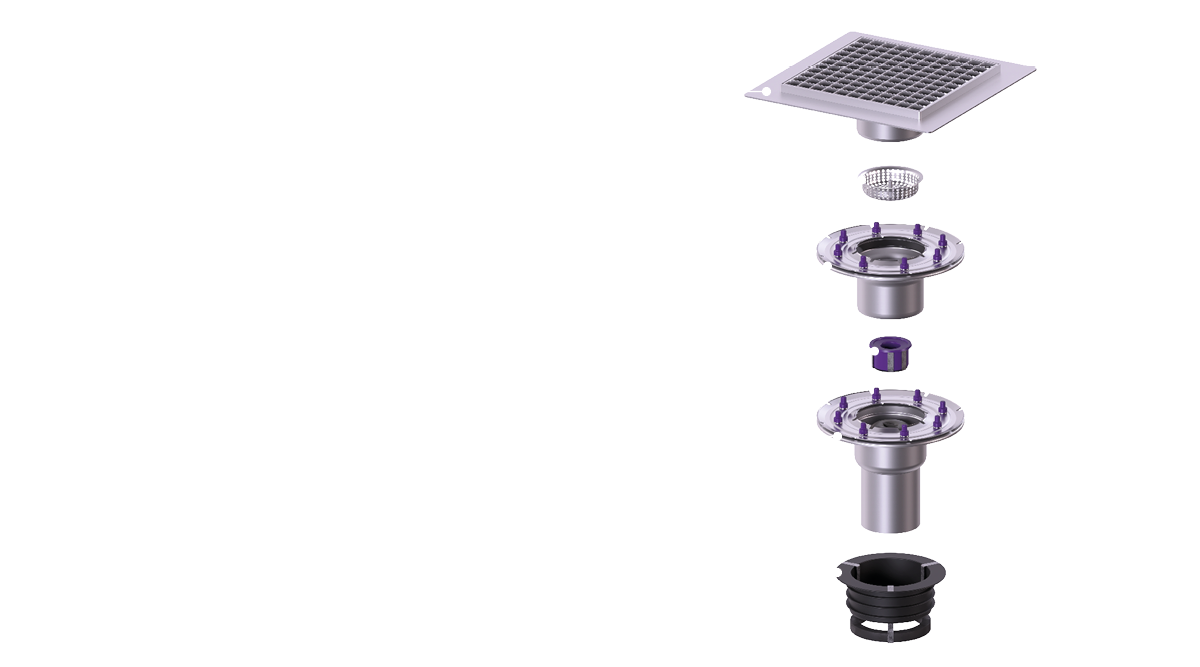

The design at a glance

Only the interaction of the individual elements ensures reliable and safe building drainage. Here we show you which components make up a Ferrofix in detail.

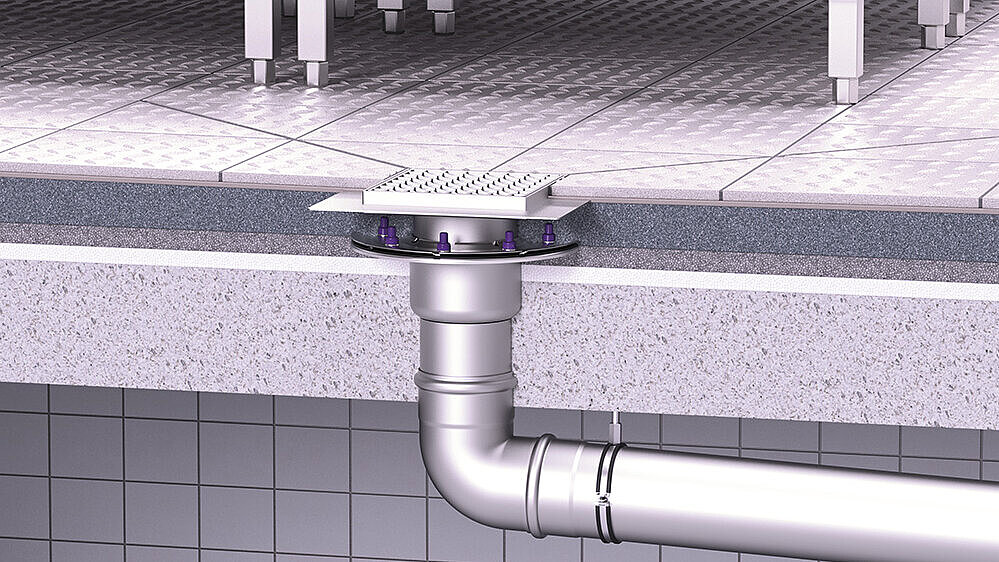

The Ferrofix modular system

Are there any special requirements in terms of fire or noise protection? Is a special shape required? Does the cover have to meet certain requirements due to operational safety? The answer to all these questions is Ferrofix. Thanks to the modular system, the process technology can be put together flexibly.

The right solution for every eventuality

Each property has its own characteristics, each application has different requirements. Thanks to various customisation possibilities, the floor drains adapt perfectly to their task. An anti-slip grated cover, sludge bucket or fire protection insert? You will always find what you are looking for in the KESSEL range.

More scope for adjustments

As an option, we also offer our Ferrofix channels, trays and floor drains with the Variofix stainless steel outlet socket. It offers flexibility for the installation of channels and floor trays as deviations of up to 5 millimetres per socket in any direction, can be compensated for.

More information



Ferrofix System 125 project drain


Vertical outlet

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
54210.20 L 15 (EN 1253-1) 70 included Connection flange 54210.20
Show
54210.21 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54210.21
Show
54210.52 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54210.52
Show
54210.61 L 15 (EN 1253-1) 70 included Connection flange 54210.61
Show
54230.20 L 15 (EN 1253-1) 100 included Connection flange 54230.20
Show
54230.21 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54230.21
Show
54230.52 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54230.52
Show
54230.61 L 15 (EN 1253-1) 100 included Connection flange 54230.61
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
54410.20 L 15 (EN 1253-1) 70 included Connection flange 54410.20
Show
54410.21 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54410.21
Show
54410.52 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54410.52
Show
54410.61 L 15 (EN 1253-1) 70 included Connection flange 54410.61
Show
54430.20 L 15 (EN 1253-1) 100 included Connection flange 54430.20
Show
54430.21 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54430.21
Show
54430.52 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54430.52
Show
54430.61 L 15 (EN 1253-1) 100 included Connection flange 54430.61
Show

Horizontal outlet

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
54400.20 L 15 (EN 1253-1) 70 included Connection flange 54400.20
Show
54400.21 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54400.21
Show
54400.52 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54400.52
Show
54400.61 L 15 (EN 1253-1) 70 included Connection flange 54400.61
Show
54420.20 L 15 (EN 1253-1) 100 included Connection flange 54420.20
Show
54420.21 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54420.21
Show
54420.52 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54420.52
Show
54420.61 L 15 (EN 1253-1) 100 included Connection flange 54420.61
Show

  Load classNominal size (DN)Odour trapWaterproofing layer on the upper section Item no.
54200.20 L 15 (EN 1253-1) 70 included Connection flange 54200.20
Show
54200.21 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54200.21
Show
54200.52 L 15 (EN 1253-1) 70 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54200.52
Show
54200.61 L 15 (EN 1253-1) 70 included Connection flange 54200.61
Show
54220.20 L 15 (EN 1253-1) 100 included Connection flange 54220.20
Show
54220.21 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54220.21
Show
54220.52 L 15 (EN 1253-1) 100 included Enclosed sealing collar to be glued (bd) according to DIN 18534 54220.52
Show
54220.61 L 15 (EN 1253-1) 100 included Connection flange 54220.61
Show

Ferrofix System 125 drain body


Vertical outlet

  Nominal size (DN)Odour trap Item no.
54410 70 included 54410
Show
54430 100 included 54430
Show

  Nominal size (DN)Odour trap Item no.
54210 70 included 54210
Show
54230 100 included 54230
Show

Horizontal outlet

  Nominal size (DN)Odour trap Item no.
54400 70 included 54400
Show
54420 100 included 54420
Show

  Nominal size (DN)Odour trap Item no.
54300 70 included 54300
Show

  Nominal size (DN)Odour trap Item no.
54200 70 included 54200
Show
54220 100 included 54220
Show

Ferrofix System 185 upper section

With glued flange 15 mm

  Load classType of coverLengthWidthCover material Item no.
55130 L 15 / M 125 (EN 1253-1) Slotted cover 206  mm 206  mm Stainless steel 14301 55130
Show
55131 L 15 / M 125 (EN 1253-1) Slotted cover 300  mm 300  mm Stainless steel 14301 55131
Show
55136 L 15 / M 125 (EN 1253-1) Ladder grating 206  mm 206  mm Stainless steel 14301 55136
Show
55137 L 15 / M 125 (EN 1253-1) Ladder grating 300  mm 300  mm Stainless steel 14301 55137
Show
55144 L 15 (EN 1253-1) Slotted cover  mm 250  mm Stainless steel 14301 55144
Show

With glued flange 6 mm

  Load classType of coverLengthWidthCover material Item no.
55132 L 15 / M 125 (EN 1253-1) Slotted cover 230  mm 230  mm 55132
Show
55133 L 15 / M 125 (EN 1253-1) Slotted cover 300  mm 300  mm 55133
Show
55138 L 15 / M 125 (EN 1253-1) Ladder grating 230  mm 230  mm 55138
Show
55139 L 15 / M 125 (EN 1253-1) Ladder grating 300  mm 300  mm 55139
Show
55145 L 15 (EN 1253-1) Slotted cover 250  mm 250  mm 55145
Show

With connection flange

  Load classType of coverLengthWidthCover material Item no.
55134 L 15 / M 125 (EN 1253-1) Slotted cover 206  mm 206  mm Stainless steel 14301 55134
Show
55135 L 15 / M 125 (EN 1253-1) Slotted cover 300  mm 300  mm Stainless steel 14301 55135
Show
55140 L 15 / M 125 (EN 1253-1) Ladder grating 206  mm 206  mm Stainless steel 14301 55140
Show
55141 L 15 / M 125 (EN 1253-1) Ladder grating 300  mm 300  mm Stainless steel 14301 55141
Show
55142 L 15 (EN 1253-1) Hygiene upper section 250  mm 250  mm Stainless steel 14301 55142
Show
55143 L 15 (EN 1253-1) Hygiene upper section 250  mm 250  mm Stainless steel 14301 55143
Show
55146 L 15 (EN 1253-1) Slotted cover 250  mm Stainless steel 14301 55146
Show

Ferrofix System 185 drain body


lateral outlet

  Nominal size (DN)Odour trapContents of sludge trap Item no.
55105 100 included 55105
Show

  Nominal size (DN)Odour trapContents of sludge trap Item no.
55115 100 included 55115
Show

  Nominal size (DN)Odour trapContents of sludge trap Item no.
55125 100 included 55125
Show

outlet

  Nominal size (DN)Odour trapContents of sludge trap Item no.
55110 100 included 55110
Show

  Nominal size (DN)Odour trapContents of sludge trap Item no.
55100 100 included 55100
Show

  Nominal size (DN)Odour trapContents of sludge trap Item no.
55120 100 included 55120
Show
