Lifting station Aqualift F Mono

Comfort, SPF 1500-S1

The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover.

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Including sound absorption mat
Item no. 11604
GTIN 4026092071021
Price group 20

Lifting station Aqualift F Mono Comfort, SPF 1500-S1

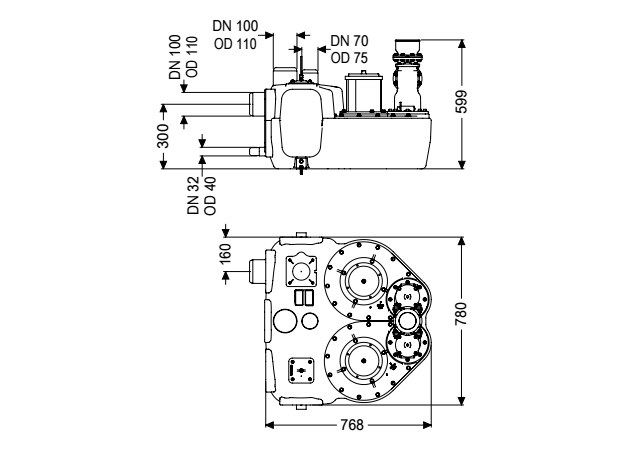

The lifting station for faecal and faecal-free wastewater is equipped with two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: duo pump Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Tested sound insulation as per test report: yes Rim width: Control unit Backwater protection: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Dimensions Net weight: 96 kg Gross weight: 102 kg Width: 780 mm Height: 539 mm Length: 773 mm Packaging dimension: width: 780 mm Packaging dimension: height: 539 mm Packaging dimension: length: 773 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance pipe bottom inlet to tank bottom: 245 mm Distance from centre of inlet pipe to tank bottom: 300 mm Number of inlets: 150 mm Inlet nominal size (DN): 110 mm Inlet nominal size (DN): 100 Inlet type: 2 Pumping volume: 50 l Tank volume: 120 l Pumping device Pump control: SPF 1500 Number of pumps: 2 Weight: 27 kg Connection type: Direct connection Rated current: 2,7 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,77 Protection class control unit: IP 68 (3m/48h) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 40 m³/h Max. pumping height: 8 m Speed: 1415 U/min Power P1: 1,4 kW Power P2: 1,1 kW Operating mode: S1 Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe with pressure monitor Type of level measurement: pneumatic Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Retrofit kit Alarm float switch, Aqualift F and F Duo 28015 Show
Compressor set for air bubbling 28048 Show
Flexible coupling DN 80, L: 200 mm 28662 Show
Elastic union joint for hoses Ø 110 28663 Show
Shut-off valve DN 80, Polymer, horizontal 28682 Show
Shut-off valve DN 100, Polymer, horizontal 28683 Show
Shut-off valve DN 100, Polymer 28698 Show
Shut-off valve DN 150, Polymer 28699 Show
Flange joint DN 100, for polymer fittings 28712 Show
Flange joint DN 80, for polymer fittings 28713 Show
Flange adapter DN 80, for polymer fitting 28714 Show
Shut-off valve DN 80, Polymer, vert 28715 Show
Shut-off valve DN 80, Polymer, vertical with flange 28716 Show
TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
  Title Item no.
Pressure switch Duo 28046 Show
Replacement set pump flange 28051 Show
Pump motor SPF 1500 / 400 V S1 28065 Show
Sealing gasket set DN 70, DN 100 28608 Show
Elastic union joint for hoses Ø 110 28663 Show
Replacement set Duoflap housing 28677 Show
Comfort control unit 400V, Aqualift Duo, 2x2.5-4.0 A 28757 Show
Battery 9 V block 680034 Show
Cleaning cover screwed, 160x140 mm 680044 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Immersion pipe pressure monitor, Duo, 10m,up to 12/2009 680049 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Flap set Rolling ring, flap, flap holder 680053 Show
Immersion pipe Duo, 5 m, from 01/2010 680056 Show
Flap housing for Duo systems, without shut-off valve 680061 Show
Impeller SPF 1400/1500, Aqualift lifting stations 680643 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Max. permissible switching frequency (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump control (pumpe): SPF 1500
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): without shut-off valve
