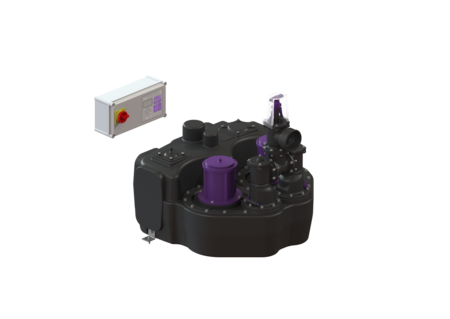

Lifting station Aqualift F Duo

Comfort, SPF 3000-S1, Gate valve

PDF product data sheet

The lifting station for faecal and faecal-free wastewater is equipped with two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. The station is controlled by a user-friendly control unit, which can be optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages can be output via a GSM interface (Comfort control unit).

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Control unit with self-diagnosis system
Item no. 11609
GTIN 4026092071076
Discount group 5

Lifting station Aqualift F Duo Comfort, SPF 3000-S1, Gate valve
The lifting station for faecal and faecal-free wastewater is equipped with two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. The station is controlled by a user-friendly control unit, which can be optionally integrated in the building management system via a potential-free contact or alarm and collective fault messages can be output via a GSM interface (Comfort control unit). Version: Shut-off valve: Shut-off valve made of polymer Type of system: Twin pump station Pump control: Control unit Backflow preventer: integrated Sound absorption mat: yes Delivery state: Installation-ready (electrical components, connection parts must be connected on site) Installation situation: free-standing set-up Type of wastewater: wastewater with sewage General characteristics: Colour: black Standard: EN 12050-1 Dimensions: Length: 773 mm Width: 780 mm Height: 788 mm Tank: Number of inlets: 2 ST Inlet nominal size (DN): 100 mm Inlet nominal size (OD): 110 mm Inlet max. scoring (DN): 150 mm Distance pipe bottom inlet to tank bottom: 245 mm Distance from centre of outlet pipe to tank bottom: 590 mm Distance from centre of inlet pipe to tank bottom: 300 mm Connection for manual diaphragm pump (DN): 32 Tank volume: 120 l Pressure pipe connection: horizontal Pressure pipe connection (DN): 100 mm Pressure pipe connection (OD): 110 mm Venting connection (DN): 70 mm Pumping volume: 50 l Free passage: 40 mm Pumping device: Pump: SPF 3000 Number of pumps: 2 Max. pumping capacity: 47 m3/h Max. pumping height: 16 m Operating mode: S1 Power P1: 3.2 kW Power P2: 2.7 kW Speed: 2,890 U/min Max. temperature (permanent) of conveyed material: 40 °C Connection type: Direct connection Weight: 26 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 5.4 A Protection class (pump): IP 68 (3m/48h) Protection class: I Type of pump connection cable: H07RN-F 7G 1.5 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.77 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 5,000 Std Insulation class: F Max. permissible switching frequency: 20 1/h Control: Control unit: Comfort Operating voltage: 400 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes GSM interface: yes Potential-free contact: yes Type of fuse required (electrical protection): 3 x C 20 A Motor protection switch: yes Protection class control unit: IP 54 Length of mains cable for control unit: 0 m Type of level measurement: pneumatic Level measurement instrument: Immersion pipe with pressure monitor Alarm sensor: Immersion pipe

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162
Retrofit kit Alarm float switch, Aqualift F and F Duo 28015
Compressor set for air bubbling 28048
Flexible coupling DN 80, L: 200 mm 28662
Elastic union joint for hoses Ø 110 28663
Shut-off valve DN 80, Polymer, horizontal 28682
Shut-off valve DN 100, Polymer, horizontal 28683
Shut-off valve DN 100, Polymer 28698
Shut-off valve DN 150, Polymer 28699
Flange joint DN 100, for polymer fittings 28712
Flange joint DN 80, for polymer fittings 28713
Flange adapter DN 80, for polymer fitting 28714
Shut-off valve DN 80, Polymer, vert 28715
Shut-off valve DN 80, Polymer, vertical with flange 28716
TeleControl GSM modem for Comfort control units 230V/400V 28792
  Title Item no.
Pressure switch Duo 28046
Replacement set pump flange 28051
Pump motor SPF 3000 / 400 V S1 28064
Gasket set fro pressure switch 28608
Elastic union joint for hoses Ø 110 28663
Replacement set Duoflap housing 28677
Shut-off valve DN 100, Polymer, horizontal 28683
Comfort control unit 400V, Aqualift Duo, 2x4.0-6.3 A 28758
Battery 9 Volt Block 680034
Inspection cover 680044
Seal for pump flange 680045
Clip angle 680046
Screws (14 p.) 680047
Submersible pipe with 10 m cable 680049
Pump flange "F" SPF 1400-4500 680050
Flange seal for SPF 1400-4500 680052
Gasket,s.s. non-return flap with housing 680053
KESSEL Replacement Part submersible pipe 680056
Clap housing 680061
Impeller for SPF 3000 Aqualift 680642
  • TÜV test mark (ATTR-376): ID 1111241940
  • Country of origin (ATTR-322): DE
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): Freestanding pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for three-phase current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Grey iron
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 3/N/PE 400V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278): Star
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): MS
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 1,600  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Start-up current (ATTR-285): 41  AMP
  • Vertical installation (ATTR-286): yes
  • Operating mode, twin systems (ATTR-287): redundant
  • Pump (ATTR-4): SPF 3000
  • Number of pumps (ATTR-181): 2
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 7G 1.5 mm2
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S1
  • Power P1 (ATTR-F4): 3.2  KWT
  • Power P2 (ATTR-F5): 2.7  KWT
  • Speed (ATTR-F2): 2,890  UMIN
  • Rated current (ATTR-N5): 5.4  AMP
  • Max. pumping capacity (ATTR-F7): 47  MQH
  • Max. pumping height (ATTR-F8): 16  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Direct connection
  • Protection class (pump) (ATTR-125): IP 68 (3m/48h)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 26  KGM
  • Cos phi - power factor (ATTR-192): 0.8
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 5,000  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000
  • Shut-off valve (ATTR-A1): Shut-off valve made of polymer
  • Pressure pipe connection (ATTR-B7): horizontal
  • Type of system (ATTR-2): Twin pump station
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Control unit
  • Sound absorption mat (ATTR-185): yes
  • Retaining bracket for the lift protection (ATTR-186): yes
  • Control unit (ATTR-S2): Comfort
  • Self-diagnosis system (SDS) (ATTR-S5): yes
  • Battery buffering (ATTR-S6): yes
  • Multi-line display (ATTR-S7): yes
  • Log book function (ATTR-S8): yes
  • GSM interface (ATTR-S10): yes
  • Potential-free contact (ATTR-S11): yes
  • Length of mains cable for control unit (ATTR-S12): 0  MTR
  • Operating voltage (ATTR-S13): 400  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Protection class control unit (ATTR-S4): IP 54
  • Alarm sensor (ATTR-S1): Immersion pipe
  • Type of level measurement (ATTR-7A): pneumatic
  • Level measurement instrument (ATTR-7B): Immersion pipe with pressure monitor
  • Type of fuse required (electrical protection) (ATTR-S17): 3 x C 20 A
  • Motor protection switch (ATTR-172): yes
  • Length (ATTR-A6A): 773  MMT
  • Width (ATTR-A6B): 780  MMT
  • Height (ATTR-A6C): 788  MMT
  • Volume (ATTR-320): 0.5  MTQ
  • Packaging dimension: length (ATTR-325): 773  MMT
  • Packaging dimension: width (ATTR-326): 780  MMT
  • Packaging dimension: height (ATTR-327): 788  MMT
  • Dimensions (ATTR-323): 773X780X788MM
  • Number of packages (ATTR-321): 0
  • Number of inlets (ATTR-B1B): 2  PCE
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Inlet nominal size (OD) (ATTR-B1CB): 110  MMT
  • Distance from centre of inlet pipe to tank bottom (ATTR-B6): 300  MMT
  • Distance pipe bottom inlet to tank bottom (ATTR-B1D): 245  MMT
  • Inlet max. scoring (DN) (ATTR-B1E): 150  MMT
  • Distance from centre of outlet pipe to tank bottom (ATTR-B15E): 590  MMT
  • Venting connection (DN) (ATTR-B4): 70  MMT
  • Connection for manual diaphragm pump (DN) (ATTR-B4B): 32
  • Pressure pipe connection (DN) (ATTR-B17): 100  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 110  MMT
  • Tank volume (ATTR-B9): 120  LTR
  • Pumping volume (ATTR-B10): 50  LTR
  • Reaction to fire (ATTR-306): Class E to EN 13501-1
  • Standard (ATTR-9): EN 12050-1
  • CE marking (ATTR-A5B): yes
  • Installation situation (ATTR-1): free-standing set-up
  • Free passage (ATTR-180): 40  MMT
  • Delivery state (ATTR-189): Installation-ready (electrical components, connection parts must be connected on site)
  • Declaration of Performance (DOP) (ATTR-292): 009-011
  • Wastewater quantity (ATTR-310): Medium
  • Type of wastewater (ATTR-6): wastewater with sewage
  • Declaration of conformity (ATTR-303): 009-011-D
  • Colour (ATTR-102): black
  • External monitoring (ATTR-A8): LGA
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Lifting station
  • Product family (M-ATTR-004): Aqualift
  • Product name (M-ATTR-005): Aqualift F
