The Universal basement drain
DN 100, Black grating, Backwater protection
PDF product data sheet

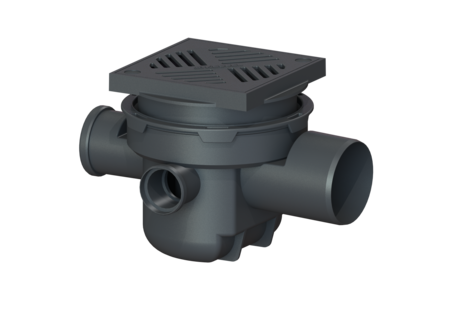

The basement drain with three standard inlets (2x DN 50 / 1x DN 70) for faecal-free wastewater is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand.
- Flexible installation: vertically adjustable upper section rotatable
- tiltable
- vertically adjustable
- standard inlets
- Integrated backwater protection
- Flexible planning thanks to three fixed
| Item no. | 27611 |
|---|---|
| GTIN | 4026092007822 |
| Price group | 10 |
The Universal basement drain DN 100, Black grating, Backwater protection
The basement drain with three standard inlets (2x DN 50 / 1x DN 70) for faecal-free wastewater is equipped with two mechanical flaps which close automatically in the event of backwater. One flap serves at the same time as an emergency closure to be closed by hand. Type of wastewater: wastewater without sewage Installation situation: floor slab installation Version: Odour trap: included Emergency closure: yes Delivery state: installation-ready Backwater protection: Type 5 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Colour: black Standard: EN 1253, EN 13564 Dimensions: Length: 380 mm Width: 300 mm Cutout dimension, length: 400 mm Cutout dimension, width: 320 mm Tank: Installation depth: 216 - 276 mm Drain body: Socket version: lateral Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Slotted cover Cover material: Polymer Colour of cover: black Load class: K 3 (EN 1253-1) Sludge bucket: yes Grating: Grid size, width: 188 mm Grid size, height: 25 mm Grid size, length: 188 mm
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
|
Extension section with pressure sealing flange, Mating flange | 27298 | |
|
Adapter DN 100/70 | 27602 | |
|
Upper section, stainl. steel grid/rim | 48954 | |
|
Extension section Pressure sealing flange, Mating flange | 48958 | |
|
Variofix upper section System 200, Slotted cover, 304 SST, K 3 | 48968 | |
|
Extension section System 200, H: 175 mm | 48988 | |
|
Upper section Class B, Round slotted grating, d: 230 mm | 67985 |
| Catalog Page | |
|---|---|
| Manuals | |
| CAD Data | |
| Declaration of Performance |
- Installation depth (ATTR-B2_VB): 216 MMT
- Declaration of Performance (DOP) (ATTR-292): 009-004
- Nominal size (DN) (ATTR-118):
100
- - (ATTR-340):
- Country of origin (ATTR-322): DE
- Net weight (ATTR-A3A): 2.7 KGM
- Gross weight (ATTR-A3B): 3.0 KGM
- Length (ATTR-A6A): 380 MMT
- Width (ATTR-A6B): 300 MMT
- Cutout dimension, length (ATTR-160): 400 MMT
- Cutout dimension, width (ATTR-161): 320 MMT
- Volume (ATTR-320): 0.0 MTQ
- Packaging dimension: length (ATTR-325): 380 MMT
- Packaging dimension: width (ATTR-326): 295 MMT
- Packaging dimension: height (ATTR-327): 257 MMT
- Dimensions (ATTR-323): 380X300X270MM
- Number of packages (ATTR-321): 1
- Type of cover (ATTR-A21): Slotted cover
- Colour of cover (ATTR-A2A): black
- Load class (ATTR-A2B): K 3 (EN 1253-1)
- Cover material (ATTR-A2E):
Polymer
- Sludge bucket (ATTR-A2K): yes
- Odour trap (ATTR-115): included
- Emergency closure (ATTR-153): yes
- Socket version (ATTR-233):
lateral
- Grid size, length (ATTR-113A): 188 MMT
- Grid size, width (ATTR-113B): 188 MMT
- Grid size, height (ATTR-113C): 25 MMT
- Colour (ATTR-102): black
- Type of wastewater (ATTR-6):
wastewater without sewage
- Standard (ATTR-9): EN 1253
- CE marking (ATTR-A5B):
yes
- Installation situation (ATTR-1):
floor slab installation
- Backwater protection (ATTR-151): Type 5
- Number of mechanical backwater flaps (ATTR-154): 2
- Vertical adjustment (ATTR-177): vertically adjustable upper section
- Delivery state (ATTR-189): installation-ready
- Outer diameter (OD) (ATTR-147): 110
- Brand (M-ATTR-001): KESSEL
- Product group (M-ATTR-002): Drains
- Product type (M-ATTR-003): Basement drain
- Product family (M-ATTR-004): The Universal
- Product name (M-ATTR-005): The Universal
