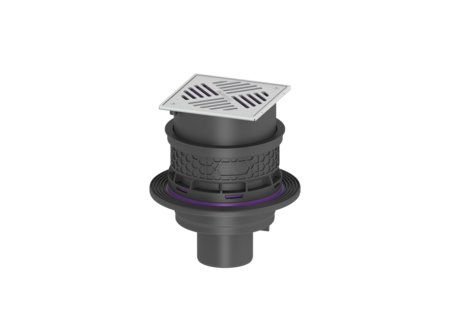

Universal Plus basement drain
vert., SST, Backw. valve, Waterpr.concr.
In combination with an upper section, the polymer Universal Plus drain body is used for drainage of non-faecal wastewater and is equipped with a removable backwater valve with two backwater flaps, a one hand-lockable emergency closure and a sludge bucket. Including temporary protective cover.
- Sustainable due to use of recycled material
- Inlets above the floor slab, no penetration required
- Vertical outlet for easy installation and easy access to the main drainage pipe
| Item no. | 27641 |
|---|---|
| GTIN | 4026092096871 |
| Price group | 10 |
Universal Plus basement drain vert., SST, Backw. valve, Waterpr.concr.
The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable backwater valve with two backwater flaps and a one hand-lockable emergency closure. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Variant Contents of sludge trap: yes Emergency closure: yes Waterproof flange: Pre-assembled at the factory Sealing water height: 60 mm Discharge rate (l/s) with 10 mm backwater: 1,6 Discharge rate (l/s) with 20 mm backwater: 1,7 Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation Backwater protection: Type 5 Dimensions Net weight: 3,76 kg Gross weight: 4,17 kg Diameter: 295 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Vertical installation: 23 - 80 Installation depth: 285 - 340 mm Vertical adjustment: vertically adjustable upper section Height: 270 mm Packaging dimension: width: 344 mm Packaging dimension: height: 353 mm Packaging dimension: length: 344 mm Tank/drain body System: vertical Coverage features Type of cover: Slotted cover made of stainless steel Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 200 mm Height of cover: 25 mm Length of cover: 200 mm Load class: K 3 (EN 1253-1) Contents of sludge trap: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Double flap backwater valve | 27603 | Show |
 | Sludge basket, polymer | 27604 | Show |
 | Slotted cover 187 x 187 mm, SST, Class K 3 | 27643 | Show |
 | Universal Plus basement drain vert., backwater valve, Waterpr.concr. | 27650 | Show |
 | Upper section, stainl. steel grid/rim | 48954 | Show |
 | Seal for basement drain System 200, D: 175 mm | 681036 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material): Stainless steel 14301
- Installation situation (einbausituation):
floor slab installation
- Type of wastewater (abwasserart_de):
without sewage
- System (stutzen_ausfuehrung):
vertical
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Backwater protection (rueckstauschutz): Type 5
- (verriegelung):
- Odour trap (geruchsverschluss):
- (wu-flansch):
