Universal Plus basement drain
ver.,Variofix,Backw.valve,Waterpr.concr.

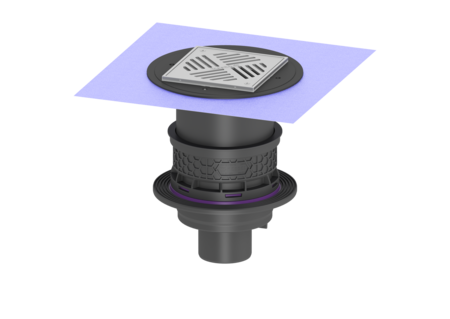

KESSEL Universal Plus basement drain, silver, odour trap, backwater protection Type 5, socket vertical, 2 mechanical backwater flaps, installation depth 309 - 408 mm, yes, floor slab installation
- Sustainable due to use of recycled material
- Inlets above the floor slab, no penetration required
- Vertical outlet for easy installation and easy access to the main drainage pipe
Item no. | 27651 |
---|---|
GTIN | 4026092096888 |
Price group | 10 |
Universal Plus basement drain ver.,Variofix,Backw.valve,Waterpr.concr.
The polymer Universal Plus basement drain is used for drainage of non-faecal wastewater and is equipped with a removable backwater valve with two backwater flaps and a one hand-lockable emergency closure. Including temporary protective cover. The drain is pressure-waterproof up to 0.6 bar (MFPA Leipzig tested) and radon-tight (IAF Radioökologie GmbH tested). Variant Emergency closure: yes Waterproof flange: Pre-assembled at the factory Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Water exposure class in accordance to DIN 18534-1 (up to and including): W3-I Sealing water height: 60 mm Discharge rate (l/s) with 10 mm threshold: 1,6 Discharge rate (l/s) with 20 mm threshold: 1,7 Mechanical backwater flaps: 2 General characteristics Colour: black Standard: EN 1253 Nominal size (DN): 100 Type of wastewater: without sewage Installation situation: floor slab installation Backwater protection: Type 5 ATEX: no Dimensions Net weight: 4,37 kg Gross weight: 4,88 kg Diameter: 295 mm Cutout dimension, width: 310 mm Cutout dimension, length: 310 mm Adjustment range: 12 - 28 Installation depth: 309 - 408 mm Type of height adjustability: vertically adjustable upper section Height: 270 mm Packaging dimension: length: 443 mm Packaging dimension: width: 338 mm Packaging dimension: height: 466 mm Tank/drain body Socket version: vertical Coverage features Type of cover: Slotted cover made of stainless steel Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 200 mm Height of cover: 25 mm Length of cover: 200 mm Load class: K 3 (EN 1253-1)
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section with pressure sealing flange, mating fl. | 27298 | Show | |
Backwater valve | 27603 | Show | |
Slotted cover 187 x 187 mm, SST, Class K 3 | 27643 | Show | |
Universal Plus basement drain vert., backwater valve, Waterpr.concr. | 27650 | Show | |
Installation adhesive 2C installation mortar | 48650 | Show | |
Waterproofing membrane for joint sealing, liquid | 48651 | Show | |
Variofix upper section System 200, slotted cover, 304 SST, K 3 | 48968 | Show | |
Seal for basement drain System 200, D: 175 mm | 681036 | Show |
Manuals | |
---|---|
CAD Data | |
Declaration of Performance |
- Nominal size (DN) (nennweite): 100
- Cover material (abdeckung_material): Stainless steel 14301
- Installation situation (einbausituation): floor slab installation
- Type of wastewater (abwasserart_de): without sewage
- Socket version (stutzen_ausfuehrung): vertical
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Backwater protection (rueckstauschutz): Type 5
- (verriegelung):
- Odour trap (geruchsverschluss):
- (wu-flansch):
