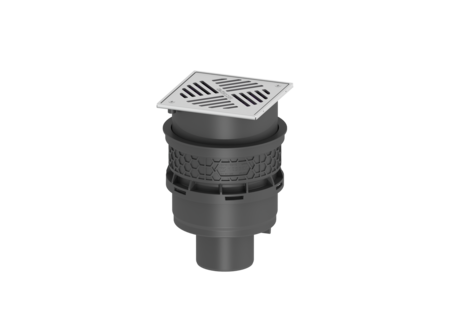

Universal Plus basement drain

vertical, SST, Backwater valve

PDF product data sheet

The polymer Universal Plus basement drain is equipped with a removable backwater valve with two backwater flaps, one hand-lockable emergency closure and a sludge bucket.

Item no. 27671
GTIN 4026092096925
Discount group 1

Universal Plus basement drain vertical, SST, Backwater valve
The polymer Universal Plus basement drain is equipped with a removable backwater valve with two backwater flaps, one hand-lockable emergency closure and a sludge bucket. Version: Emergency closure: yes Sealing water height: 60 mm Installation situation: floor slab installation Type of wastewater: wastewater without sewage Backwater protection: Type 5 Number of mechanical backwater flaps: 2 General characteristics: Nominal size (DN): 100 Colour: black Standard: EN 1253, EN 13564 Dimensions: Height: 270 mm Cutout dimension, length: 310 mm Cutout dimension, width: 310 mm Diameter: 235 mm Tank: Installation depth: 285 - 340 mm Drain body: Socket version: vertical Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Slotted cover made of stainless steel Cover material: 304 stainless steel Colour of cover: silver Load class: K 3 (EN 1253-1) Length: 200 mm Width: 200 mm Height: 25 mm Sludge bucket: yes Discharge rate (l/s) with 20 mm backwater: 1.7 l/s
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
  • Standard (ATTR-9): EN 1253
  • Backwater protection (ATTR-151): Type 5
  • Number of mechanical backwater flaps (ATTR-154): 2
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 1.7  LTS
  • Installation depth (ATTR-B2_VB): 285  MMT
  • Declaration of Performance (DOP) (ATTR-292): 009-225
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Wastewater quantity (ATTR-310): Medium
  • Overall height (ATTR-313): min. 130 mm
  • Net weight (ATTR-A3A): 3.2  KGM
  • Gross weight (ATTR-A3B): 3.8  KGM
  • Sealing water height (ATTR-128): 60  MMT
  • Height (ATTR-A6C): 270  MMT
  • Diameter (ATTR-107): 235  MMT
  • Cutout dimension, length (ATTR-160): 310  MMT
  • Cutout dimension, width (ATTR-161): 310  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 368  MMT
  • Packaging dimension: width (ATTR-326): 368  MMT
  • Packaging dimension: height (ATTR-327): 266  MMT
  • Dimensions (ATTR-323): 368X368X266MM
  • Number of packages (ATTR-321): 0
  • Type of cover (ATTR-A21): Slotted cover made of stainless steel
  • Colour of cover (ATTR-A2A): silver
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Cover material (ATTR-A2E): 304 stainless steel
  • Sludge bucket (ATTR-A2K): yes
  • Length (ATTR-A2M): 200  MMT
  • Width (ATTR-A2N): 200  MMT
  • Height (ATTR-A2P): 25  MMT
  • Emergency closure (ATTR-153): yes
  • Socket version (ATTR-233): vertical
  • Colour (ATTR-102): black
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Installation situation (ATTR-1): floor slab installation
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Nominal size (DN) (ATTR-118): 100
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Basement drain
  • Product family (M-ATTR-004): Universal Plus
  • Product name (M-ATTR-005): Universal Plus
