Aqualift S Compact lift stat.

Mono, GTF 500, resistant, Floor slab

280500SC
280500SC

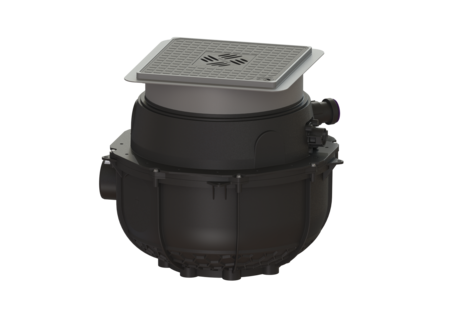

KESSEL Aqualift S Compact lift stat. Mono, wastewater without sewage, floor slab installation, with a submersible GTF 500 resistant pump, level measurement Float switch, type of cover Cover plate with slotted cover, black

  • Space-saving due to installation in floor slab with integrated drainage function
  • Easy retrofitting from Mono to Duo possible
  • Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
Item no. 280500SC
GTIN 4026092082607
Price group 20

Aqualift S Compact lift stat. Mono, GTF 500, resistant, Floor slab
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: Single unit Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Float switch Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) System type: Mono Dimensions Net weight: 16,17 kg Gross weight: 19,45 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 590 mm Packaging dimension: width: 590 mm Packaging dimension: height: 675 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 16 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Locking: Lock & Lift Load class: K 3 (EN 1253-1) Pumping device Pump: GTF 500 resistant Number of pumps: 1 Connection type: Schuko (earthed contact) 2-pin Rated current: 2,7 A Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 10 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Control Level measurement instrument: Float switch Type of level measurement: mechanical Mains frequency: 50 Hz Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Type of fuse required (electrical protection): C 16 A
  Title Item no.
  Title Item no.
  Title Item no.
27126 Adapter DN 50/70 27126 Show
27602 Adapter DN 100/70 27602 Show
28040 Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
28048 Compressor set for air bubbling 28048 Show
28062 Pressure pipe set with 5 m pressure hose, DA 50 mm 28062 Show
28086 Adapter for pressure pipe connection, DN 32, PE 28086 Show
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Show
39007 Inlet socket DN 70, with seal, Threaded ring 39007 Show
39100 Inlet socket DN 100, with seal, Threaded ring 39100 Show
48500 Odour trap Multistop, System 125 48500 Show
48550 Odour trap Megastop 48550 Show
48700 Hair filter Polymer, for System 125 bathroom drains 48700 Show
500101 Hole saw for DN 50/70/100 500101 Show
680696 Odour trap for The Ultraflat 79 680696 Show
680795 Drain body for cover plate for odour trap 50 mm, black 680795 Show
680796 Drain body for cover plate for Multistop, black 680796 Show
680797 Drain body for cover plate for odour trap 50 mm, grey 680797 Show
680798 Drain body for cover plate for Multistop, grey 680798 Show
80889 Cable accessories Extension for probe 80889 Show
80891 Cable accessories Extension for pump 80891 Show
830050 Cover plate surface water resistant, black 366x366mm 830050 Show
830052 Cover plate surface water resistant, tileable 830052 Show
83070 Extension section H: 200 mm 83070 Show
83073 Extension section H: 234 mm, with flange and mating flange 83073 Show
83075 Extension section H: 360 mm, with central flange 83075 Show
83077 Waterproof concrete install. kit OD: 40 mm, for building contractors 83077 Show
850114 Seal for pipe penetration, DN 50 850114 Show
850116 Seal for pipe penetration, DN 70 850116 Show
850117 Seal for pipe penetration, DN 100 850117 Show
  Title Item no.
39005 Inlet socket DN 50, with seal, Threaded ring 39005 Show
60101S Slotted cover 138x138 mm, Polymer 60101S Show
67007 Locking key for Ecoguss slotted gratings,Lock & Lift 67007 Show
680018 One-handed closure for backflow preventer 680018 Show
680150 Seal for upper section, from 07/2014 680150 Show
680475 Pump connection with seal and flap 680475 Show
680758 Pressure pipe connection with seal and screws 680758 Show
680760 Pump connection Minilift, Aqualift S 680760 Show
680761 Flap housing Mono, with pump connector 680761 Show
680762 Turn fastener for pump connection lock 680762 Show
680765 Replacement pump GTF 500 resistant, with float switch 680765 Show
680767 Multi-vane impeller for GTF 500 680767 Show
680768 Spiral housing for GTF 500 680768 Show
Screw set for intake cage, GTF 500 680769 Show
680770 Intake cage for GTF 500 680770 Show
680771 Pump hanger for Aqualift S Compact, Mono, GTF 500 680771 Show
680792 Pressure pipe connection for GTF 500, Aqualift S Compact 680792 Show
686114 Seal for cover plate, System 330 mm 686114 Show
830053 Cover plate black with slotted cover 830053 Show
830065 Upper section system 400 Lockable, silver-grey 830065 Show
  • Cover material (abdeckung_material): Polymer
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): floor slab installation
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • Type of cover (abdeckungsart): Cover plate with slotted cover
  • Load class (belastungsklasse): K 3 (EN 1253-1)
  • Pump (pumpe): GTF 500 resistant
  • (ausfuehrung):
