Aqualift S Compact lift stat.
Duo, GTF500, resist, Floor sl, tileable

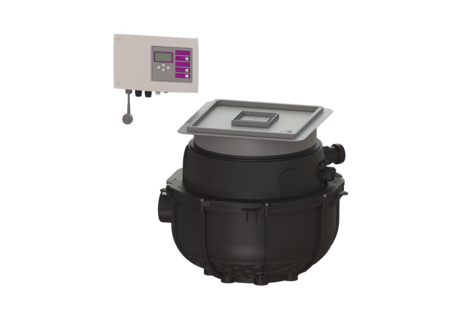

KESSEL Aqualift S Compact lift stat. Duo, wastewater without sewage, floor slab installation, with 2 submersible GTF 500 resistant pumps, level measurement Immersion pipe, type of cover tileable cover plate, silver grey
- Space-saving due to installation in floor slab with integrated drainage function
- Easy retrofitting from Mono to Duo possible
- Quiet operation, as the pump installation does not cause any structure-borne sound emissions.
| Item no. | 280530XC |
|---|---|
| GTIN | 4026092082713 |
| Price group | 20 |
Aqualift S Compact lift stat. Duo, GTF500, resist, Floor sl, tileable
The ready to plug in lifting station for faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an open pump tank. One-handed closures enable easy removal of the integrated components. The system for installation in the floor slab is preassembled for final installation on site. Variant Type of system: duo pump Resistant: Resistant to waste water containing salt, softener and condensate Pump control: Control unit Backflow preventer: integrated General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: floor slab installation Delivery state: Installation-ready (connection parts must be connected on site) System type: Duo Dimensions Net weight: 19,28 kg Gross weight: 20,78 kg Groundwater resistant from lower edge of base section: 3000 mm Installation depth: 490 - 620 mm Type of height adjustability: vertically adjustable upper section Length: 617 mm Width: 585 mm Packaging dimension: length: 600 mm Packaging dimension: width: 600 mm Packaging dimension: height: 480 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Inlet nominal size (DN): 100 mm Pumping volume: 20 l Coverage features Type of cover: tileable cover plate Cover material: Polymer Colour of cover: silver grey Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Load class: K 3 (EN 1253-1) Max. flooring height: 16 mm Pumping device Pump: GTF 500 resistant Number of pumps: 2 Connection type: coded plug Protection class (pump): IP 68 (3m) Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 10 m³/h Max. pumping height: 8 m Speed: 2800 U/min Power P1: 0,6 kW Power P2: 0,36 kW Operating mode: S1 Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 10 mm Length of mains cable for pump: 5 m Rated current: 2,7 A Control Control unit: Comfort Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Type of fuse required (control unit): C 16 A
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Basic alarm unit with electronic probe | 20222 | Show |
 | Basic alarm unit with optical probe | 20223 | Show |
 | Adapter DN 50/70 | 27126 | Show |
 | Adapter DN 100/70 | 27602 | Show |
 | Retrofit kit Alarm float switch | 28016 | Show |
 | Pressure pipe set 5 m pressure hose, DA 40 mm | 28040 | Show |
 | Compressor set for air bubbling | 28048 | Show |
| Pressure pipe set with 5 m pressure hose, DA 50 mm | 28062 | Show |
 | Adapter for pressure pipe connection, DN 32, PE | 28086 | Show |
 | TeleControl GSM modem for Comfort control units 230V/400V | 28792 | Show |
 | Aerial with magnetic base for TeleControl Modem, Cable 2.5 m | 28793 | Show |
 | Extension cable for aerial with magnetic base, L: 2 m | 28794 | Show |
 | Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Inlet socket DN 70, with seal, Threaded ring | 39007 | Show |
 | Inlet socket DN 100, with seal, Threaded ring | 39100 | Show |
 | Odour trap Multistop, System 125 | 48500 | Show |
 | Odour trap Megastop | 48550 | Show |
 | Hair filter Polymer, for System 125 bathroom drains | 48700 | Show |
 | Hole saw for DN 50/70/100 | 500101 | Show |
 | Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | Show |
 | Odour trap for The Ultraflat 79 | 680696 | Show |
 | Drain body for cover plate for odour trap 50 mm, black | 680795 | Show |
 | Drain body for cover plate for Multistop, black | 680796 | Show |
 | Drain body for cover plate for odour trap 50 mm, grey | 680797 | Show |
 | Drain body for cover plate for Multistop, grey | 680798 | Show |
 | Potential-free contact Additio. circuit board for control units | 80072 | Show |
 | Potential-free contact Extension set for control units Basic | 80074 | Show |
 | Cable accessories Extension for probe | 80889 | Show |
 | Cable accessories Extension for pump | 80891 | Show |
 | Cover plate surface water resistant, black 366x366mm | 830050 | Show |
 | Cover plate surface water resistant, tileable | 830052 | Show |
 | Extension section H: 200 mm | 83070 | Show |
 | Extension section H: 234 mm, with flange and mating flange | 83073 | Show |
 | Extension section H: 360 mm, with central flange | 83075 | Show |
 | Waterproof concrete install. kit OD: 40 mm, for building contractors | 83077 | Show |
| Waterproof concrete install. kit OD: 50 mm, for building contractors | 83079 | Show |
 | Seal for pipe penetration, DN 50 | 850114 | Show |
 | Seal for pipe penetration, DN 70 | 850116 | Show |
 | Seal for pipe penetration, DN 100 | 850117 | Show |
Assembly Drawing
| Title | Item no. | ||
|---|---|---|---|
 | Splash guard set for optical probe | 28706 | Show |
 | Control unit Comfort Duo, 230 V | 28746 | Show |
| Inlet socket DN 50, with seal, Threaded ring | 39005 | Show |
 | Locking key for Ecoguss slotted gratings,Lock & Lift | 67007 | Show |
 | One-handed closure for backflow preventer | 680018 | Show |
 | Battery 9 V block | 680034 | Show |
| Pressure hose Sold by the metre, 6x4 mm 100 | 680071 | Show |
 | Seal for upper section, from 07/2014 | 680150 | Show |
 | Cover tileable, Lock & Lift, ABS | 680224 | Show |
 | Pump connection with seal and flap | 680475 | Show |
 | Release key for Lock & Lift | 680702 | Show |
 | Pressure pipe connection with seal and screws | 680758 | Show |
 | Pump connection Minilift L, Aqualift S | 680760 | Show |
 | Turn fastener for pump connection lock | 680762 | Show |
 | Replacement pump GTF 500 resistant, without float switch | 680774 | Show |
 | Immersion pipe level measurement for Aqualift S Compact | 680776 | Show |
 | Fixing for immersion pipe for Aqualift S, Fastening clip, Screw | 680777 | Show |
 | Fixing for sensor for Aqualift S, Fastening clip, Screw | 680778 | Show |
 | Pump hanger for Aqualift S Compact, Duo, GTF 500 | 680779 | Show |
 | Flap housing Duo, with pump connector | 680781 | Show |
 | Seal for cover plate, System 330 mm | 686114 | Show |
 | Spare part set, optical probe 5 m cable | 80888 | Show |
 | Adapter Set optical probe | 80892 | Show |
 | Cover plate Tileable with drainage function | 830054 | Show |
 | Upper section system 400 Lockable, silver-grey | 830065 | Show |
| Data Sheet | |
|---|---|
| Manuals | |
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de): without sewage
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- TÜV test mark (pruefzeichen):
ID 1111241937
- Installation situation (einbausituation):
floor slab installation
- Type of cover (abdeckungsart): tileable cover plate
- Load class (belastungsklasse): K 3 (EN 1253-1)
- Pump (pumpe): GTF 500 resistant
- (ausfuehrung):
