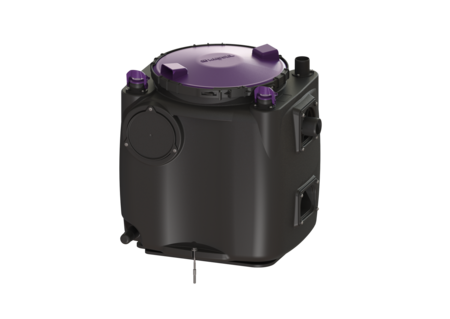

Lifting station Aqualift S 100

Mono, GTF 600, Free-standing set-up

PDF product data sheet

Lifting station for faecal-free wastewater, free-standing set-up, preassembled for final installation on site. - With odour-tight cover and quick-release closure for easy maintenance - Tank made of PE, resistant to aggressive wastewater - Including backflow preventer for the pressure pipe - Including socket DN 100 for inlet and sampling - Pump/s with multi-vane impeller for maximum operating reliability

  • 1. With odour-tight cover and quick-release closure for easy maintenance
  • 2. Tank made of PE, resistant to aggressive wastewater
  • 3. Including backflow preventer for the pressure pipe
Item no. 28511
GTIN 4026092092880
Price group 20
Back to table of variants

Lifting station Aqualift S 100 Mono, GTF 600, Free-standing set-up

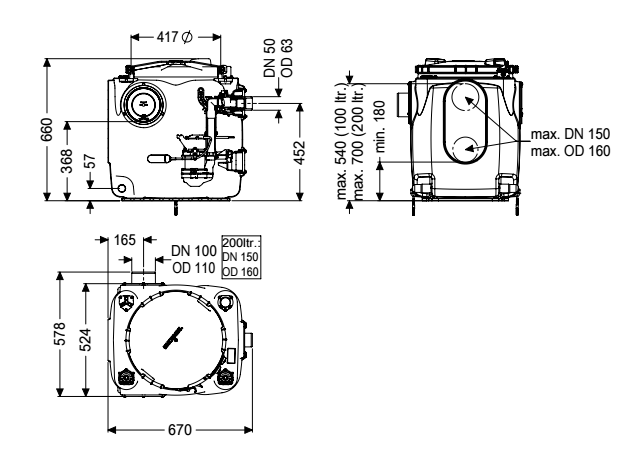

Lifting station for faecal-free wastewater, free-standing set-up, preassembled for final installation on site. - With odour-tight cover and quick-release closure for easy maintenance - Tank made of PE, resistant to aggressive wastewater - Including backflow preventer for the pressure pipe - Including socket DN 100 for inlet and sampling - Pump/s with multi-vane impeller for maximum operating reliability Type of wastewater: wastewater without sewage Installation situation: free-standing set-up Version: Type of system: Single station Pump control: Float switch Backflow preventer: integrated Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) General characteristics: Colour: black Standard: EN 12050-2 Dimensions: Length: 670 mm Width: 530 mm Height: 650 mm Tank: Inlet nominal size (DN): 100 Tank volume: 120 l Pumping volume: 25 l Pressure pipe connection (DN): 50 mm Pressure pipe connection (OD): 63 mm Coverage features: Type of cover: Cover Cover material: Polymer Colour of cover: violet Tightness: odour-tight Locking: Quick-release closure Free passage: 10 mm Pumping device: Pump: GTF 600 Number of pumps: 1 Max. pumping capacity: 12 m3/h Max. pumping height: 8 m Operating voltage: 230 V Mains frequency: 50 Hz Operating mode: S1 Power P1: 0.65 kW Power P2: 0.4 kW Speed: 2,750 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: Schuko (earthed contact) 2-pin Weight: 6 kg Impeller type: Multi-vane impeller Length of mains cable for pump: 5 m Rated current: 2.9 A Protection class (pump): IP 68 (3m) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Insulation class: F Control: Operating voltage: 230 V Motor protection switch: yes Type of level measurement: mechanical
  Title Item no.
  Title Item no.
  Title Item no.
Hole saw for DN 100/125/150 500100
Hole saw for DN 50/70/100 500101
10 m probe cable extension set 80889
Cable prolongation set for pump 10 m 80891
Seal for pipe penetration, DN 50 850114
Seal for channel passage 75 mm 850116
Seal for channel passage 110 mm 850117
Seal for pipe penetration, DN 125 850118
Seal for pipe penetration, DN 150 850119
  Title Item no.
One-handed closure for backflow preventer 680018
Seal for pressure pipe connection 680067
Cover with seal 680076
Seal for upper section, from 07/2014 680150
Cover d: 420 mm, up to 03/2004 680326
Pump connection with seal and flap 680475
Pump connection Minilift, Aqualift S 680760
Flap housing Mono, with pump connector 680761
Turn fastener for pump connection lock 680762
Impeller GTF 600, free passage 30 mm 680887
Spiral housing GTF 600, free passage 30 mm 680888
Pump hanger Mono, GTF 600 680967
Bracket for ressure pipe, Mono 680969
Clamp fastener for cover 450 mm 680975
Replacement pump GTF 600 with float switch for Aqualift S 100/200, 5m 680976
Dummy cover for Aqualift S 100/200 lifting station 680980
Cable gland for Aqualift S 100/200 680981
Venting socket DN 50 for Aqualift S 100 lifting station 680982
Pressure pipe DN 32 for Aqualift S 100 GTF 600 680983
Connection adapter for Aqualift S 100/200 locking device 680985
Inlet socket DN 100 for Aqualift S 100/200 680986
Sound absorption mat for Aqualift S 100 lifting station 680990
  • Wastewater quantity (ATTR-310): Medium
  • Type of wastewater (ATTR-6): wastewater without sewage
  • Free passage (ATTR-180): 10  MMT
  • TÜV test mark (ATTR-376): ID 1111241937
  • Country of origin (ATTR-322): DE
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): submersible pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Startup circuit for three-phase connection or three-phase current (ATTR-278):
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Number of operating pumps (ATTR-281): 1
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 800  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4): GTF 600
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Multi-vane impeller
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Operating mode (ATTR-10): S1
  • Power P1 (ATTR-F4): 0.7  KWT
  • Power P2 (ATTR-F5): 0.4  KWT
  • Speed (ATTR-F2): 2,750  UMIN
  • Operating voltage (ATTR-131): 230  VLT
  • Mains frequency (ATTR-N4): 50  HTZ
  • Rated current (ATTR-N5): 2.9  AMP
  • Max. pumping capacity (ATTR-F7): 12  MQH
  • Max. pumping height (ATTR-F8): 8  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): Schuko (earthed contact) 2-pin
  • Protection class (pump) (ATTR-125): IP 68 (3m)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 6  KGM
  • Insulation class (ATTR-193): F
  • Type of system (ATTR-2): Single station
  • Backflow preventer (ATTR-165): integrated
  • Pump control (ATTR-134): Float switch
  • Operating voltage (ATTR-S13): 230  VLT
  • Type of level measurement (ATTR-7A): mechanical
  • Motor protection switch (ATTR-172): yes
  • Inlet nominal size (DN) (ATTR-B1CA): 100  MMT
  • Pressure pipe connection (DN) (ATTR-B17): 50  MMT
  • Pressure pipe connection (OD) (ATTR-B18): 63  MMT
  • Tank volume (ATTR-B9): 120  LTR
  • Pumping volume (ATTR-B10): 25  LTR
  • Type of cover (ATTR-A21): Cover
  • Colour of cover (ATTR-A2A): violet
  • Tightness (ATTR-A2C): odour-tight
  • Locking (ATTR-A2D): Quick-release closure
  • Cover material (ATTR-A2E): Polymer
  • Length (ATTR-A6A): 670  MMT
  • Width (ATTR-A6B): 530  MMT
  • Height (ATTR-A6C): 650  MMT
  • Volume (ATTR-320): 0.4  MTQ
  • Packaging dimension: length (ATTR-325): 800  MMT
  • Packaging dimension: width (ATTR-326): 700  MMT
  • Packaging dimension: height (ATTR-327): 779  MMT
  • Dimensions (ATTR-323): 800X700X779MM
  • Number of packages (ATTR-321): 1
  • Installation situation (ATTR-1): free-standing set-up
  • Declaration of Performance (DOP) (ATTR-292): 009-210
  • Declaration of conformity (ATTR-303): 009-210-D
  • Colour (ATTR-102): black
  • Standard (ATTR-9): EN 12050-2
  • CE marking (ATTR-A5B): yes
  • Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Lifting stations
  • Product type (M-ATTR-003): Lifting station
  • Product family (M-ATTR-004): Aqualift
  • Product name (M-ATTR-005): Aqualift S
  • - (ATTR-370):
