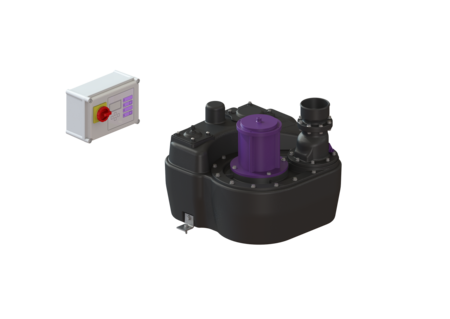

Lifting station Aqualift F Mono

Mono, Comfort, SPF 3000-S3

The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover.

  • Different performance classes available
  • Pressure sensor for reliable pneumatic level measurement
  • Including sound absorption mat
Item no. 28752
GTIN 4026092054529
Price group 20

Lifting station Aqualift F Mono Mono, Comfort, SPF 3000-S3

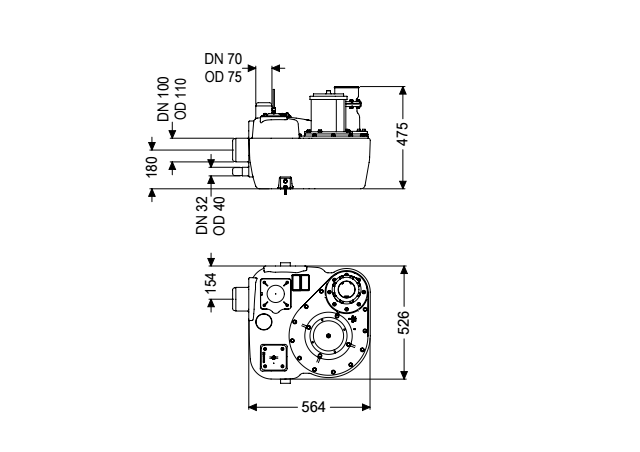

The lifting station for faecal and faecal-free wastewater is equipped with a submersible pump and a backflow preventer. The collection tank made of permanently resistant polymer (PE) offers universal connection options and has a screwed access cover. Variant Type of system: Single unit Shut-off valve: without shut-off valve Retaining bracket for the lift protection: yes Tested sound insulation as per test report: yes Rim width: Control unit Backwater protection: integrated Pressure pipe connection: vertical General characteristics Colour: black Standard: EN 12050-1 Type of wastewater: with sewage Installation situation: free-standing installation Delivery state: Installation-ready (electrical components, connection parts must be connected on site) System type: Mono Dimensions Net weight: 48,1 kg Gross weight: 49,4 kg Width: 525 mm Height: 539 mm Length: 564 mm Packaging dimension: width: 530 mm Packaging dimension: height: 570 mm Packaging dimension: length: 645 mm Tank/drain body Pressure pipe connection (DN): 100 Pressure pipe connection (OD): 110 mm Connection for manual diaphragm pump (DN): 32 Venting connection (DN): 70 Distance pipe bottom inlet to tank bottom: 125 mm Distance from centre of inlet pipe to tank bottom: 180 mm Number of inlets: 150 mm Inlet nominal size (DN): 110 mm Inlet nominal size (DN): 100 Inlet type: 1 Pumping volume: 20 l Tank volume: 50 l Pumping device Pump control: SPF 3000 Number of pumps: 1 Weight: 24 kg Connection type: Direct connection Rated current: 5,4 A Length of mains cable for pump: 5 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,89 Protection class control unit: IP 68 (3m/48h) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 47 m³/h Max. pumping height: 16 m Speed: 2845 U/min Power P1: 3,2 kW Power P2: 2,7 kW Operating mode: S3 - 50 % Type of pump connection cable: H07RN-F 7G 1.5 mm² Impeller type: Multi-vane impeller Free passage: 40 mm Control Motor protection switch: yes Alarm sensor: Immersion pipe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class probe: IP 54 Operating voltage: 400 V Connection type: Direct connection Potential-free contact: yes GSM interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort
  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162 Show
Retrofit kit Alarm float switch, Aqualift F and F Duo 28015 Show
Compressor set for air bubbling 28048 Show
Flexible coupling DN 80, L: 200 mm 28662 Show
Elastic union joint for hoses Ø 110 28663 Show
Shut-off valve DN 80, Polymer, horizontal 28682 Show
Shut-off valve DN 100, Polymer, horizontal 28683 Show
Shut-off valve DN 100, Polymer 28698 Show
Shut-off valve DN 150, Polymer 28699 Show
Flange joint DN 100, for polymer fittings 28712 Show
Flange joint DN 80, for polymer fittings 28713 Show
Flange adapter DN 80, for polymer fitting 28714 Show
Shut-off valve DN 80, Polymer, vert 28715 Show
Shut-off valve DN 80, Polymer, vertical with flange 28716 Show
TeleControl GSM modem for Comfort control units 230V/400V 28792 Show
  Title Item no.
Pump motor SPF 3000 / 400 V S3 28027 Show
Pressure switch Mono 28045 Show
Replacement set pump flange 28051 Show
Sealing gasket set DN 70, DN 100 28608 Show
Elastic union joint for hoses Ø 110 28663 Show
Flap housing set Mono, DN 100 28676 Show
Flange adapter DN 80, for polymer fitting 28714 Show
Comfort control unit 400V, Aqualift Mono, 4.0-6.3 A 28756 Show
Battery 9 V block 680034 Show
Cleaning cover screwed, 160x140 mm 680044 Show
Seal Pump flange 680045 Show
Attachment bracket with screws (2 ea.) 680046 Show
Screw set galvanised, 14 each 680047 Show
Immersion pipe Mono, 10 m cable 680048 Show
Pump flange SPF 1400 - SPF 4500 680050 Show
Seal for SPF 1400 - SPF 4500 680052 Show
Flap set Rolling ring, flap, flap holder 680053 Show
Immersion pipe Mono, 5 m hose 680055 Show
Flap housing for Mono systems, without shut-off valve 680060 Show
Impeller SPF 3000, for Aqualift lifting stations 680642 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): with sewage
  • Max. permissible switching frequency (schaltgeraet): Comfort
  • TÜV test mark (pruefzeichen): ID 1111241940
  • Installation situation (einbausituation): free-standing installation
  • Pump control (pumpe): SPF 3000
  • Impeller type (laufrad_typ): Multi-vane impeller
  • Shut-off valve (absperreinrichtung): without shut-off valve
