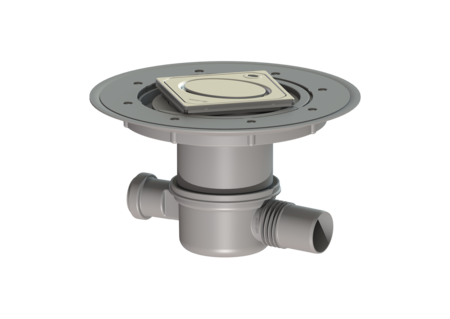

The Superflat bathroom drain

Back to table of variants PDF product data sheet

The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap.

  • Movable outlet socket
  • Lip seal fixed on the drain body
  • Side inlet via odour trap
Item no. 42701.50
GTIN 4026092028605
Price group 10

    The Superflat bathroom drain
    The Superflat bathroom drain is suitable for indoor floor drainage. The drain made of PP is equipped with a secure, reliably installed seal as well as a removable odour trap. Variant Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Sealing water height: 30 mm Discharge rate (l/s) with 20 mm backwater: 0,8 General characteristics Nominal size (DN): 50 Outer diameter (OD): 50 mm Dimensions Vertical adjustment: 10 - 23 mm Net weight: 1,35 kg Gross weight: 1,59 kg Cutout dimension, width: 180 mm Cutout dimension, length: 260 mm Vertical adjustment: vertically adjustable upper section Width: 312 mm Length: 312 mm Packaging dimension: width: 193 mm Packaging dimension: height: 314 mm Packaging dimension: length: 393 mm Tank/drain body Number of outlets: 1 Inlet nominal size (DN): 40 Inlet type: 1 Material of drain body: PP Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 95 mm Length of cover: 95 mm Surface: Polished SST Frame material: Stainless steel 14301 Cover locking: placed Load class: K 3 (EN 1253-1) Rim length: 132 mm Rim material: 132 mm Shape of upper section: square Upper section material: PP Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/40 27118 Show
    Adapter DN 50/70 27126 Show
    Extension section System 100, H: 161 mm 27146 Show
    Sludge bucket d: 110 mm 27168 Show
    Extension section System 100, with pressure sealing flange 27198 Show
    Extension section System 100, with glued flange 27199 Show
    Odour trap Multistop, System 100 43500 Show
    Hair filter Polymer, for System 100 bathroom drains 43700 Show
    Membrane 500 x 500 mm 43710 Show
    Membrane EPDM, 500 x 500 mm 43730 Show
    KESSEL System 100 glue flange 47900 Show
    		Installation adhesive 2C installation mortar 48650 Show
      Title Item no.
    Slotted cover 95x95 mm, SST 27151 Show
    • Nominal size (DN) (nennweite): 50
    • Material of drain body (material_grundkoerper): PP
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): PP
    • Type of cover (abdeckungsart): Slotted cover
