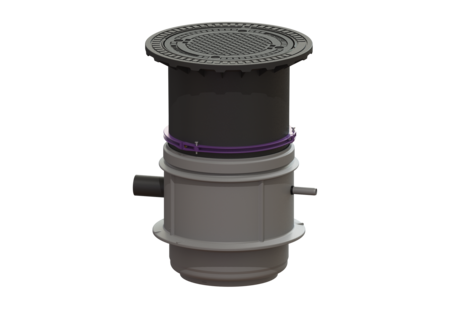

Pumping station Aquapump Medium

Mono, GTF 1200, 800-1200 mm, D

Back to table of variants PDF product data sheet

The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily.

  • Maximum safety
  • LW 600 chamber system suitable for underground installation
  • Preconfigured in the factory
Item no. 827810D
GTIN 4026092045701
Price group 60

Pumping station Aquapump Medium Mono, GTF 1200, 800-1200 mm, D

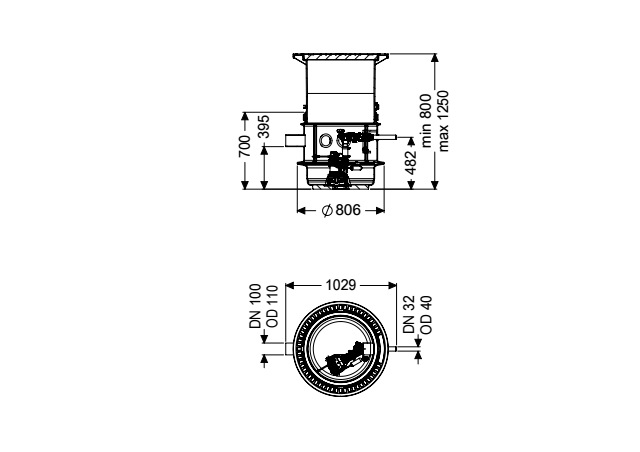

The pumping station without sewage wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank is an LW 600 chamber system made of permanently resistant polymer (PE-LLD) with open pump tank and universal connection options. Quick-release closures enable the integrated components to be removed easily. Variant Type of system: Single unit Passage seal for conduit pipe (DN): 100 Passage seal for ventilation pipe (DN): 100 Installation: Wet installation Rim width: Float switch Backwater protection: integrated Pressure pipe connection: horizontal Sound absorption mat: LW 600 General characteristics Colour: black Standard: EN 12050-2 Type of wastewater: without sewage Installation situation: underground installation Delivery state: Modular set for assembly on site System type: Mono Dimensions Net weight: 152 kg Gross weight: 164 kg Groundwater resistant from lower edge of base section: 2000 mm Diameter: 680 mm Installation depth: 800 - 1250 mm Vertical adjustment: vertically adjustable upper section Width: 806 mm Length: 806 mm Packaging dimension: width: 800 mm Packaging dimension: height: 1220 mm Packaging dimension: length: 1200 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 100 Venting connection (DN): 100 Distance from centre of outlet pipe to tank bottom: 482 mm Distance pipe bottom inlet to tank bottom: 400 mm Distance from centre of inlet pipe to tank bottom: 455 mm Inlet nominal size (DN): 160 mm Inlet nominal size (DN): 150 Inlet type: 1 Clear width of tank (LW): 600 mm Clear width of entry (LW): 600 mm Coverage features Type of cover: Round cover plate Cover material: Grey iron with concrete filling Colour of cover: black Width of cover: 680 mm Height of cover: 50 mm Length of cover: 680 mm Cover locking: unlocked Load class: D 400 (EN 124) Pumping device Pump control: GTF 1200 Number of pumps: 1 Weight: 10 kg Connection type: Schuko (earthed contact) 2-pin Rated current: 6,2 A Length of mains cable for pump: 10 m Self-diagnosis system (SDS): I Insulation class: F Cos phi - power factor: 0,98 Protection class control unit: IP 68 (3m) DSC: integrated Max. temperature (permanent) of conveyed material: 40 °C Max. pumping capacity: 15,5 m³/h Max. pumping height: 9 m Speed: 2650 U/min Power P1: 1,4 kW Power P2: 0,84 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): C 16 A Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Multi-vane impeller Control Level measurement instrument: Float switch Type of level measurement: mechanical Operating voltage: 230 V Connection type: Schuko (earthed contact) 2-pin Length of mains cable for control unit: 1,4 m
  Title Item no.
  Title Item no.
  Title Item no.
  Title Item no.
One-handed closure for backflow preventer 680018 Show
Cover plate Class D, grey cast iron 680059 Show
Seal for pressure pipe connection 680067 Show
Clamping ring for upper sections d: 600 mm 680276 Show
Pump stand for pumping stations 680362 Show
Spiral housing for passage 30 mm 680363 Show
Impeller for passage 30 mm 680366 Show
Riser 800-1250 mm, from 02/2016 680449 Show
Backflow preventer with non-return flap 680457 Show
Pump connection for pumping stations, from 01/2016 680476 Show
Pump connection Mono, suitable for pumping stations 680479 Show
Seal set Non-return flap, seals 680490 Show
Replacement pump Aquadive GTF1200 with float switch, 10 m 680594 Show
One-handed closure for threaded connection 680698 Show
Sensor clamp for level sensor & subm. press. switch 680729 Show
Seal for channel passage 110 mm 850117 Show
Seal for upper section 860116 Show
  • CE marking (ce_kennzeichnung): yes
  • Type of wastewater (abwasserart_de): without sewage
  • TÜV test mark (pruefzeichen): ID 1111241937
  • Installation situation (einbausituation): underground installation
  • Load class (belastungsklasse): D 400 (EN 124)
  • Pump control (pumpe): GTF 1200
  • Installation depth (einbautiefe): 800  mm
  • Impeller type (laufrad_typ): Multi-vane impeller
  • (schaltgeraet):
  • Inlet nominal size (DN) (zulauf_nennweite_dn): 150  mm
