EasyClean ground Standard grease separator

The uncomplicated solution for underground installation

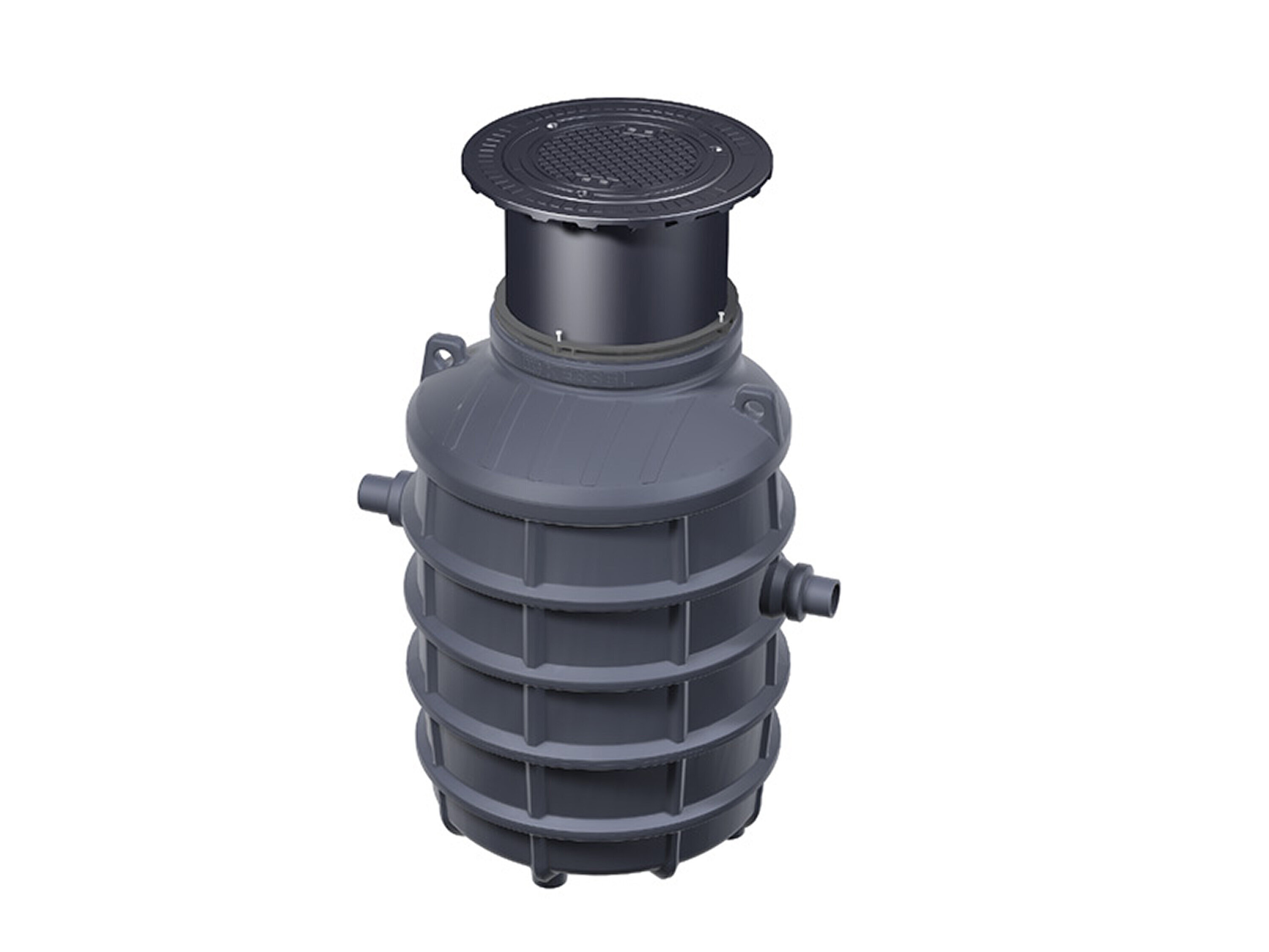

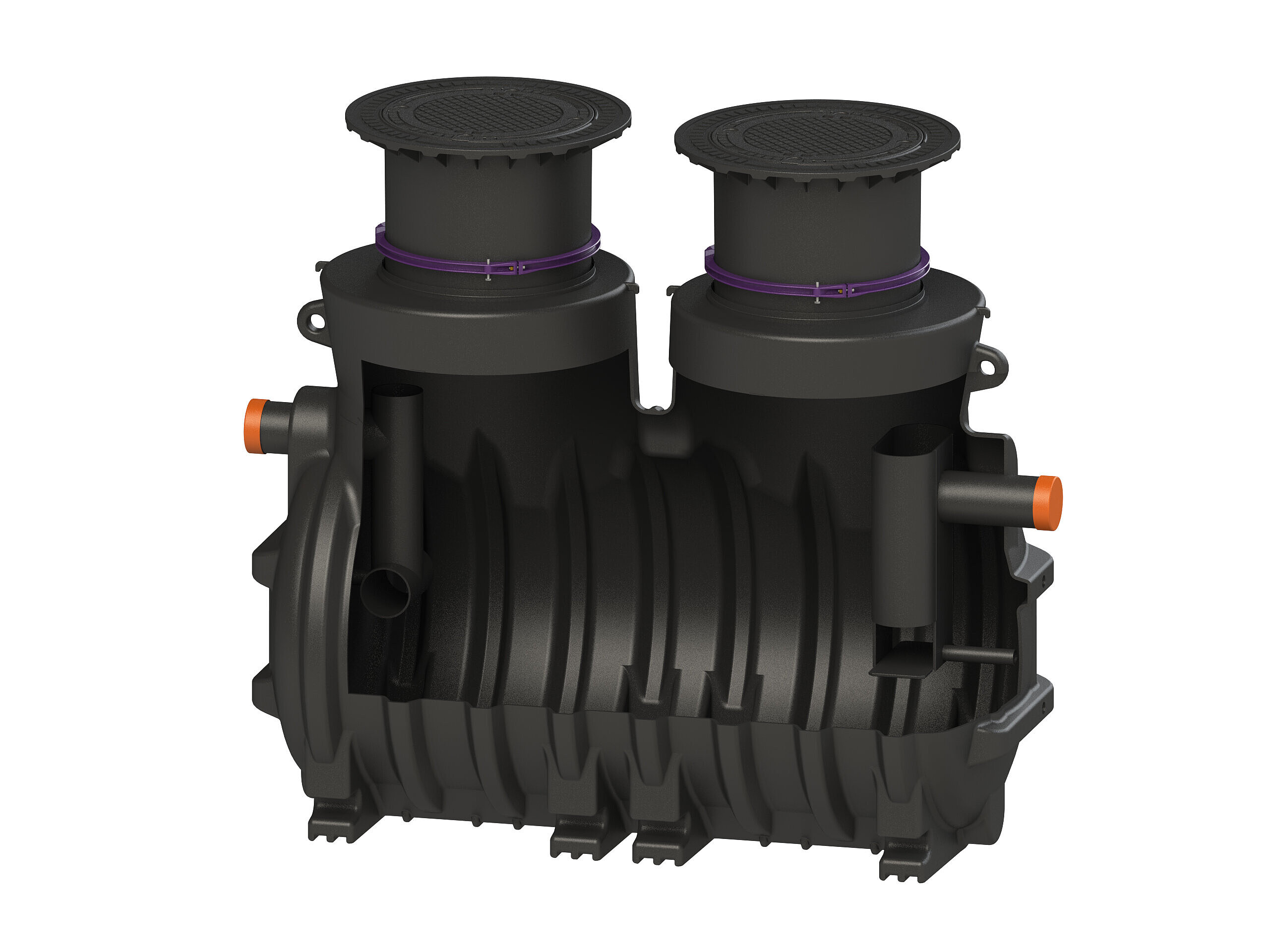

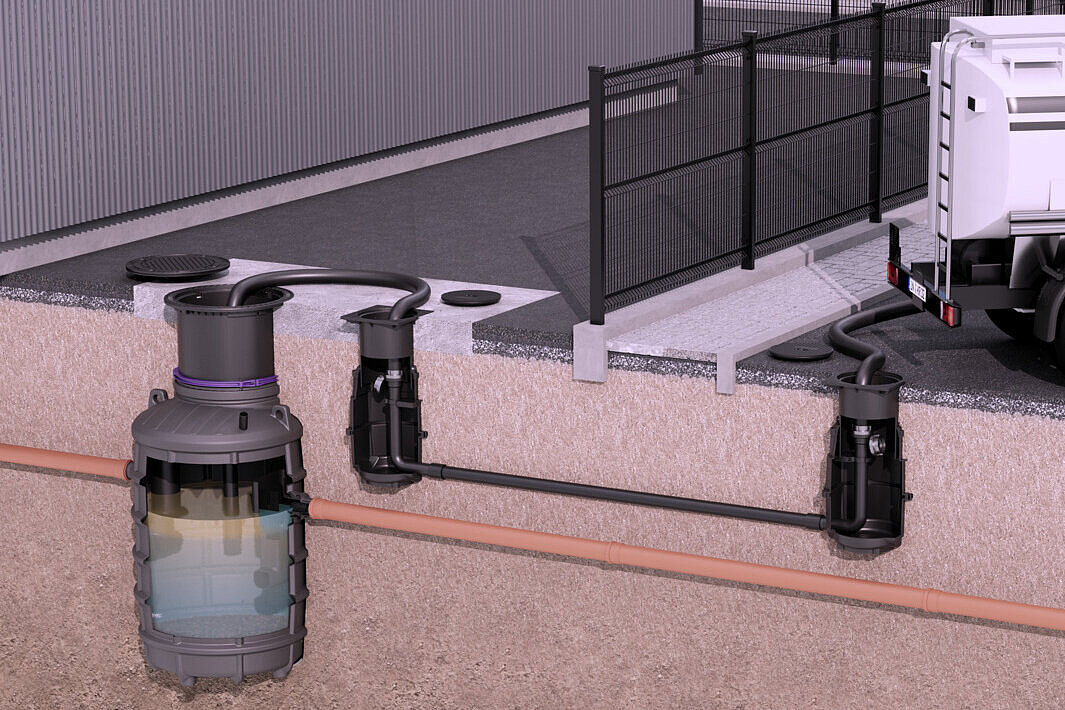

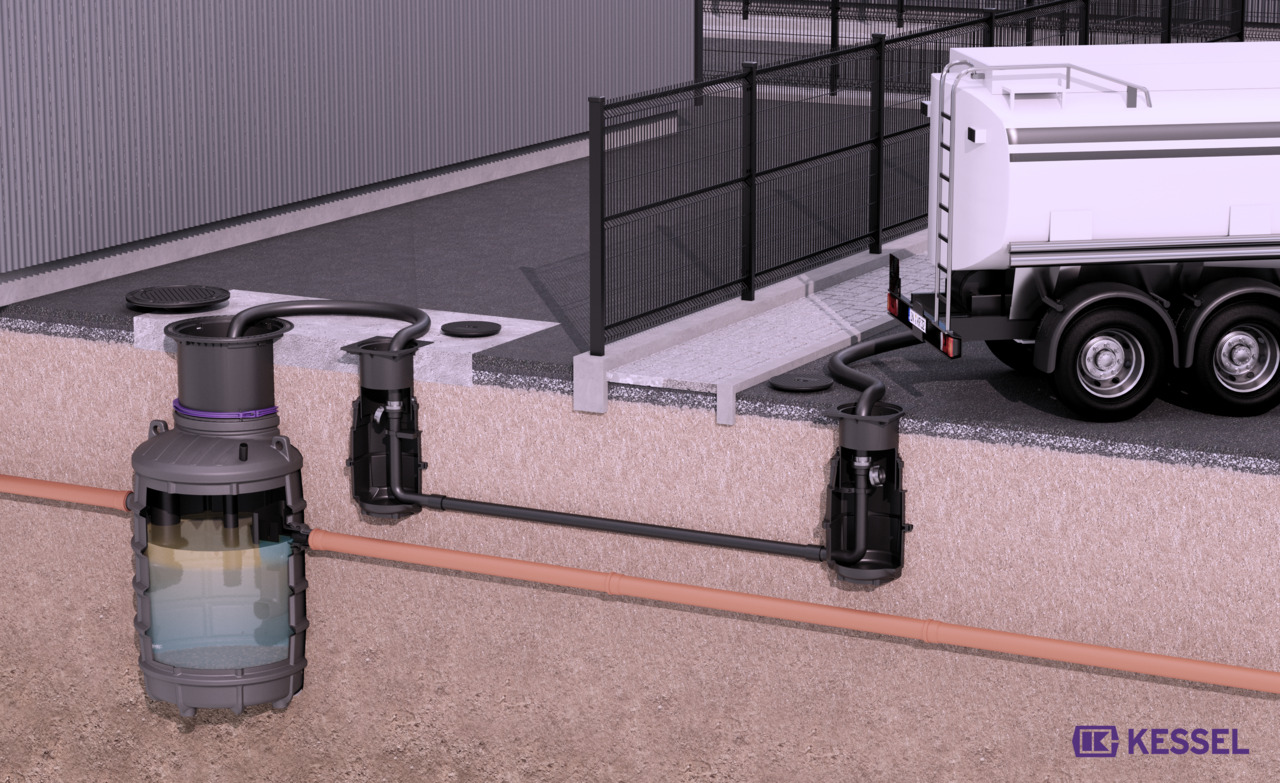

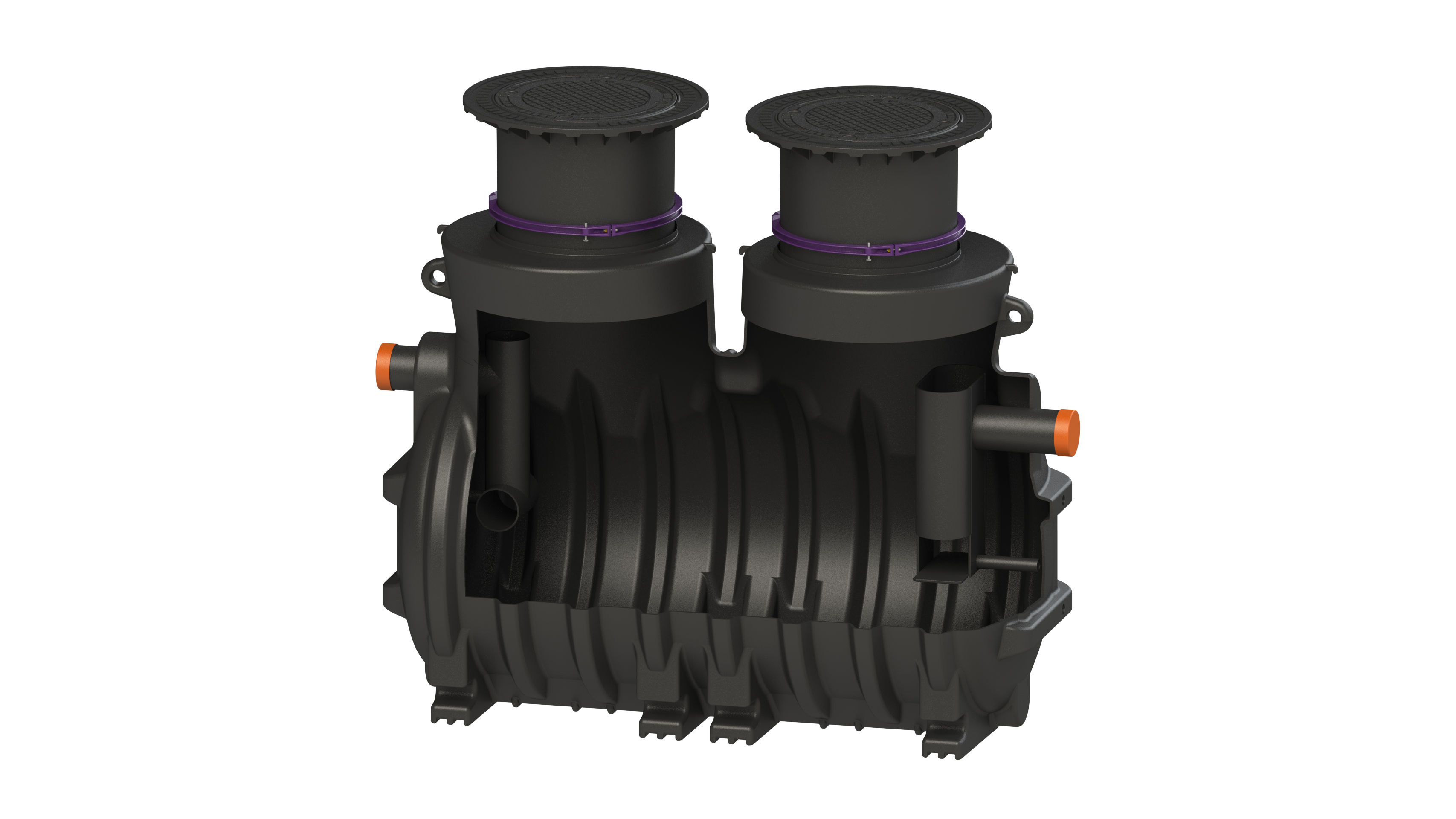

The grease separator EasyClean ground Standard is the basic version of the EasyClean ground series. The odour-tight domed covers of the grease separator have to be opened for emptying and cleaning. Extraction and rinsing of the grease separator take place manually. It is preferably cleaned with hot water through the maintenance openings.

The EasyClean ground Standard grease separator is available for load classes A/B and D as well as in nominal sizes NS 1 to NS 10, which are sufficient for most businesses such as restaurants and hotels. In addition, we also offer individual solutions for specific requirements and installation situations.

Advantages  Article overview

Basic version

The EasyClean ground Standard is the basic version of our EasyClean ground grease separator family. It includes all the essential functions.

The KESSEL range includes further grease separators with other advantages.

Variable installation depths

Individual installation depths, continuous adaptation to the ground level and compensation for the ground covering settling are possible thanks to the telescopic polymer upper sections.

SonicControl

The SonicControl automatic layer thickness measuring device with ultrasound sensor precisely monitors the temperature and thickness of the grease layer in grease separators. Owners/operating companies can verify the actual quantity of grease produced to the relevant authorities and optimise the necessary disposal cycles outside of standard requirements.

More information

100 % corrosion-free – 20-year guarantee

Our grease separators are made of polyethylene. That makes them resistant to aggressive fatty acids and they are therefore particularly durable. Trust in KESSEL quality: In addition to the statutory provision, we provide a 20-year warranty with regard to the leak tightness, fitness for purpose and structural stability of tanks and upper sections.

Important: Stricter limit values!

When grease separators are used, the wastewater at the outlet has a residual value of lipophilic materials of about 300 mg/L. If the municipalities specify a limit value below 300 mg/L, biological grease treatment with a Bifena unit is necessary.

BIFENA biological grease treatment

EasyClean ground Standard

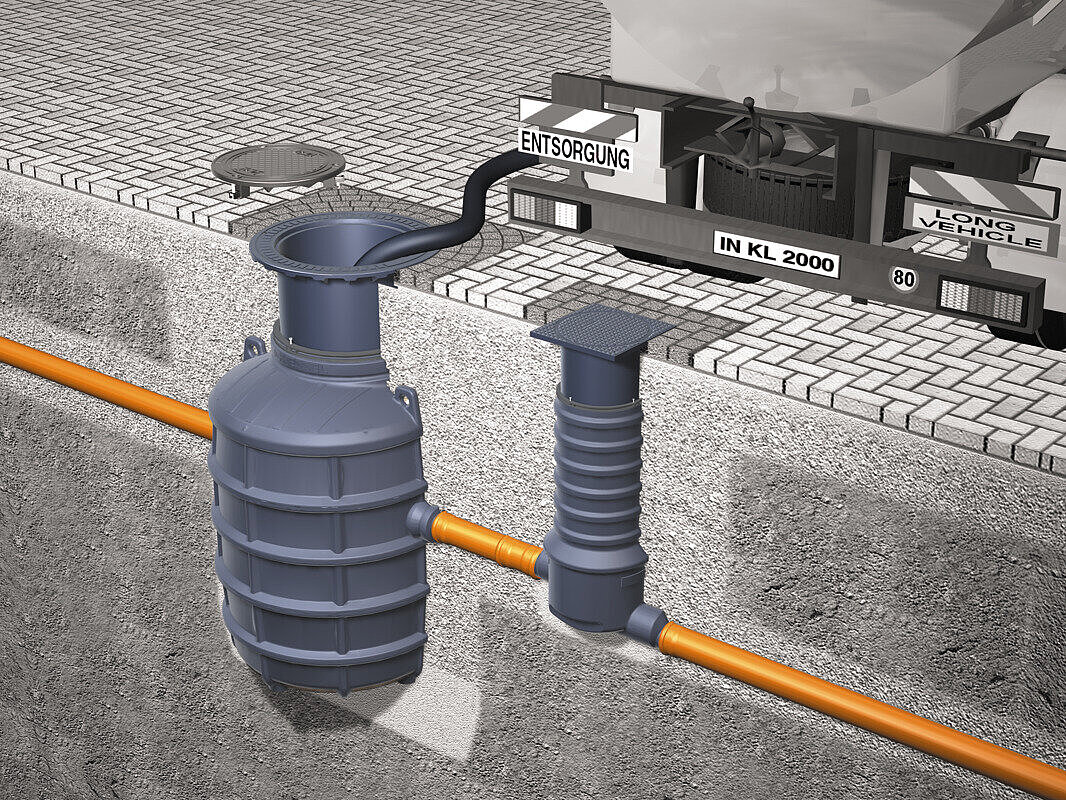

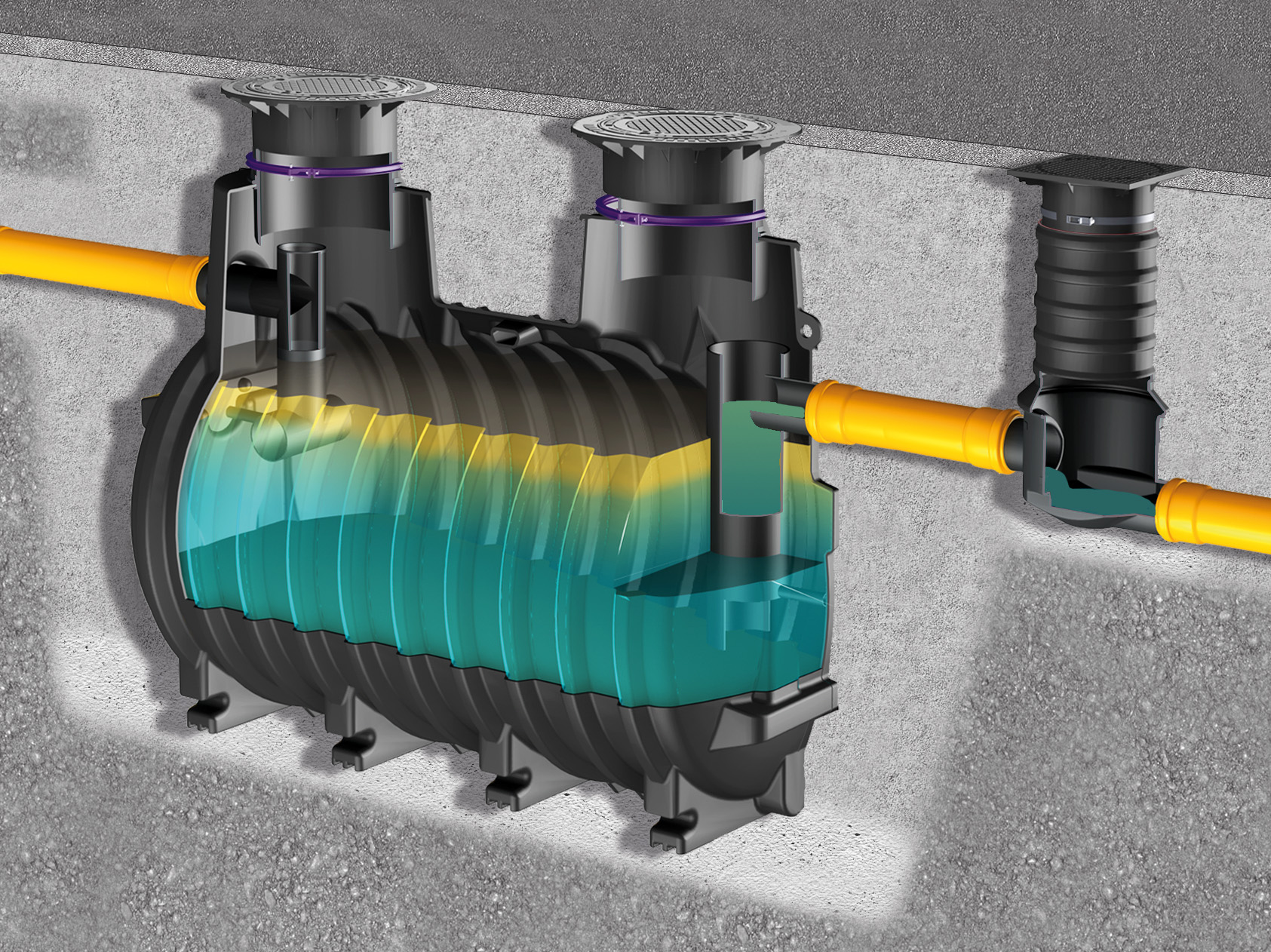

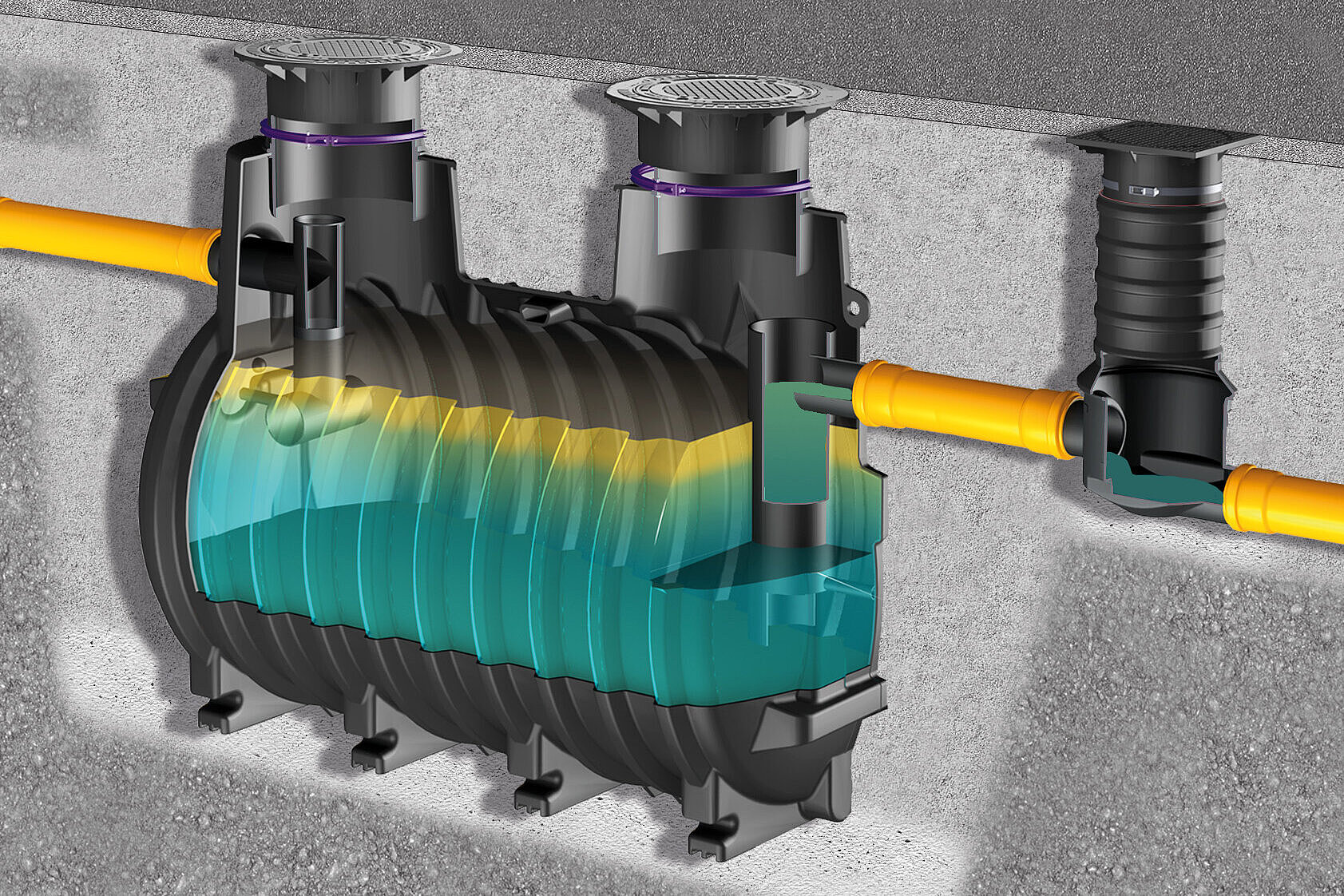

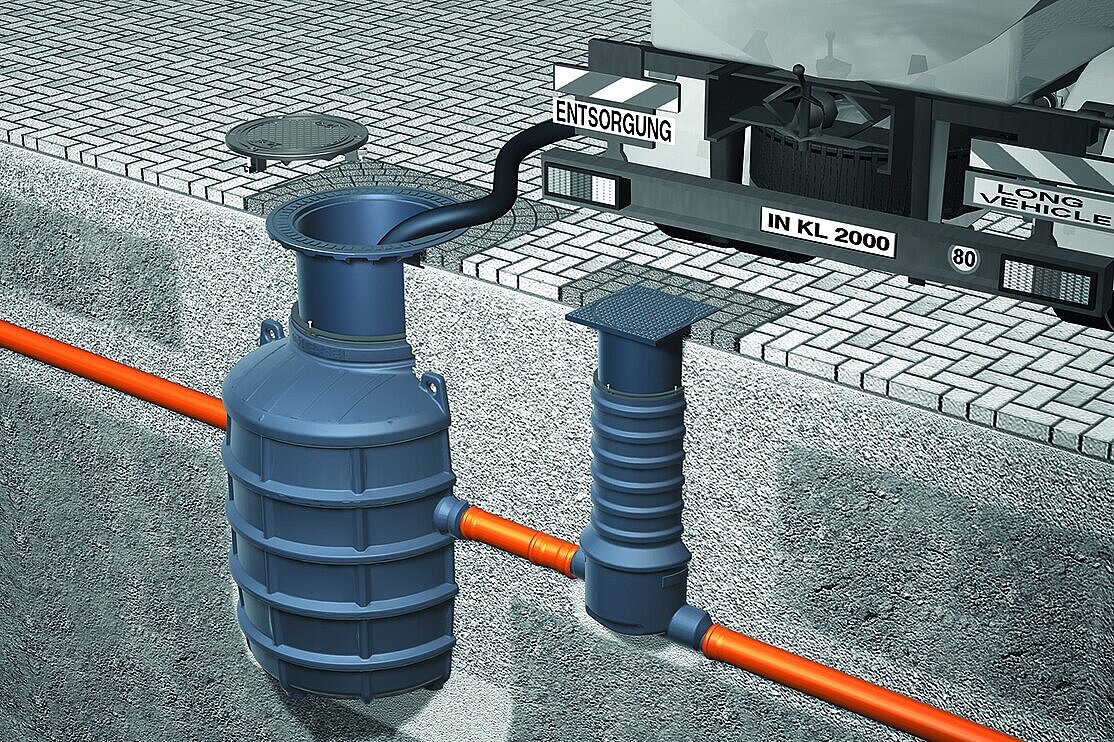

Installation in the ground, frost-free depth 1200 mm

  Load classInstallation depthNominal size (NS)Gross weight Item no.
93001/120B B 125 (EN 124) 800  mm 1 112  kg 93001/120B
Show
93002/120B B 125 (EN 124) 800  mm 2 120  kg 93002/120B
Show
93004/120B B 125 (EN 124) 800  mm 4 130  kg 93004/120B
Show
93007/120B B 125 (EN 124) 740  mm 7 325  kg 93007/120B
Show
93010/120B B 125 (EN 124) 740  mm 10 345  kg 93010/120B
Show
93015/120B B 125 (EN 124) 765  mm 15 455  kg 93015/120B
Show
93020/120B B 125 (EN 124) 765  mm 20 473  kg 93020/120B
Show
93925/120B B 125 (EN 124) 800  mm 25 666  kg 93925/120B
Show
93930/120B B 125 (EN 124) 800  mm 30 722  kg 93930/120B
Show
93935/120B B 125 (EN 124) 650  mm 35 685  kg 93935/120B
Show

  Load classInstallation depthNominal size (NS)Gross weight Item no.
93001/120D D 400 (EN 124) 800  mm 1 135  kg 93001/120D
Show
93002/120D D 400 (EN 124) 800  mm 2 140  kg 93002/120D
Show
93004/120D D 400 (EN 124) 800  mm 4 152  kg 93004/120D
Show
93007/120D D 400 (EN 124) 740  mm 7 395  kg 93007/120D
Show
93010/120D D 400 (EN 124) 740  mm 10 415  kg 93010/120D
Show
93015/120D D 400 (EN 124) 765  mm 15 576  kg 93015/120D
Show
93020/120D D 400 (EN 124) 765  mm 20 601  kg 93020/120D
Show
93925/120D D 400 (EN 124) 800  mm 25 718  kg 93925/120D
Show
93930/120D D 400 (EN 124) 800  mm 30 730  kg 93930/120D
Show
93935/120D D 400 (EN 124) 650  mm 35 735  kg 93935/120D
Show

Note on installation depth: Installation in the ground, frost-free depth 800 mm

  Load classInstallation depthNominal size (NS)Gross weight Item no.
93001/80B B 125 (EN 124) 550  mm 1 106  kg 93001/80B
Show
93002/80B B 125 (EN 124) 550  mm 2 113  kg 93002/80B
Show
93004/80B B 125 (EN 124) 550  mm 4 123  kg 93004/80B
Show

  Load classInstallation depthNominal size (NS)Gross weight Item no.
93001/80D D 400 (EN 124) 550  mm 1 120  kg 93001/80D
Show
93002/80D D 400 (EN 124) 550  mm 2 135  kg 93002/80D
Show
93004/80D D 400 (EN 124) 550  mm 4 140  kg 93004/80D
Show

Note on installation depth: Version for deeper installation

  Load classInstallation depthNominal size (NS)Gross weight Item no.
93007/170B B 125 (EN 124) 1,120  mm 7 396  kg 93007/170B
Show
93010/170B B 125 (EN 124) 1,120  mm 10 420  kg 93010/170B
Show
93015/170B B 125 (EN 124) 1,130  mm 15 517  kg 93015/170B
Show
93020/170B B 125 (EN 124) 1,130  mm 20 572  kg 93020/170B
Show
93925/170B B 125 (EN 124) 1,155  mm 25 744  kg 93925/170B
Show
93930/170B B 125 (EN 124) 1,155  mm 30 740  kg 93930/170B
Show
93935/170B B 125 (EN 124) 1,005  mm 35 642  kg 93935/170B
Show

  Load classInstallation depthNominal size (NS)Gross weight Item no.
93007/170D D 400 (EN 124) 1,120  mm 7 479.3  kg 93007/170D
Show
93010/170D D 400 (EN 124) 1,120  mm 10 510  kg 93010/170D
Show
93015/170D D 400 (EN 124) 1,130  mm 15 661  kg 93015/170D
Show
93020/170D D 400 (EN 124) 1,130  mm 20 701  kg 93020/170D
Show
93925/170D D 400 (EN 124) 1,155  mm 25 692  kg 93925/170D
Show
93930/170D D 400 (EN 124) 1,155  mm 30 691  kg 93930/170D
Show
93935/170D D 400 (EN 124) 1,005  mm 35 691  kg 93935/170D
Show

Not found the right product?

In addition to our standard grease separators we also develop individual solutions on request for special requirements in terms of form, function and dimensioning.

Customised solutions
