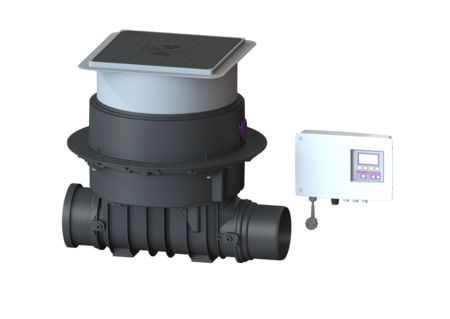

Backwater pumping station, Pumpfix F

DN 150, Floor slab, black

PDF product data sheet

The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface.

  • Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
  • Flexible installation, different covers with drain function available for installation in the floor slab
  • Quiet and energy-saving
Item no. 24150S
GTIN 4026092046562
Discount group 6

Backwater pumping station, Pumpfix F DN 150, Floor slab, black
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Version: Odour trap: Multistop Emergency closure: yes Pump control: Control unit Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Installation situation: floor slab installation Type of wastewater: wastewater with sewage Number of motor-driven backwater flaps: 1 General characteristics: Nominal size (DN): 150 Outer diameter (OD): 160 Colour: black Approval: Z-53.2-388 Dimensions: Length: 656 mm Width: 590 mm Cutout dimension, length: 750 mm Cutout dimension, width: 750 mm Tank: Installation depth: 486 - 640 mm Groundwater resistant from lower edge of base section: 3000 mm Drain body: Socket version: including spigot and socket Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Drainage function: yes Load class: L 15 (EN 1253-1) Length: 366 mm Width: 366 mm Locking: Lock & Lift Pumping device: Pump: SPZ 1000 Number of pumps: 1 Max. pumping capacity: 11.5 m3/h Max. pumping height: 10 m Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.69 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Macerator Length of mains cable for pump: 5 m Rated current: 5.2 A Protection class (pump): IP 68 (3m/48h) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.97 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 5,000 Std Insulation class: F Max. permissible switching frequency: 20 1/h Vertical drop between inlet and outlet: 9 mm Motor type: KSM 140 Protection class motor: IP 68 (3m/48h) Protection class probe: IP 68 (3m/48h) Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: optical Level measurement instrument: optical probe Alarm sensor: optical probe

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162
Clearance code for potential-free contact 80077
10 m probe cable extension set 80889
Cable extension set for motor 10 m 80890
Cable prolongation set for pump 10 m 80891
Extension section H: 200 mm 83070
Extension section H: 234 mm, with flange and counter-flange 83073
Extension section H: 360 mm, with central flange 83075
  Title Item no.
Pump cover inlet side 28054
Pumpfix F Premium Komf. Cover outlet s. 28056
Vent for Pumpfix Premium 28060
Active carbon filter 28061
Pumpfix F Control Unit Komfort - IP 54 28071
KTP1000 cutting assembly replacement set 28075
Replacement pump AqualiftF/Pumpfix F 28351
Slotted cover 138x138 mm, Polymer 60101S
Plug 680018
Battery 9 Volt Block 680034
Connection, rubber fitting, joint 680075
Flap holder 680101
Pressure pipe connection with backflow preventer 680104
Joint for intermediate part 680150
Staufix sealing gasket cover plate 686114
Gasket set (Pumpfix, Ecolift) 70319
Motor-driven backwater flap Premium 80038
Insert part f. motor-driven flap Premium 80039
Staufix FKA drive motor (KSM 140) 5m 80076
Replacement set optical probe 80888
Adapter set optical probe 80892
Cover plate 366 x 366 mm w. flat drain body, Multistop, black 830046
Upper section System 400 830065
Staufix Premium Spigot DN 150 83083
Staufix Premium Socket DN 150 83087
  • Installation situation (ATTR-1): floor slab installation
  • TÜV test mark (ATTR-376): ID 1111241793
  • Country of origin (ATTR-322): DE
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): Freestanding pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 1,000  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Start-up current (ATTR-285): 14.9  AMP
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4): SPZ 1000
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Macerator
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.2  KWT
  • Power P2 (ATTR-F5): 0.7  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Rated current (ATTR-N5): 5.2  AMP
  • Max. pumping capacity (ATTR-F7): 11.5  MQH
  • Max. pumping height (ATTR-F8): 10  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68 (3m/48h)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 10  KGM
  • Cos phi - power factor (ATTR-192): 1.0
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 5,000  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000
  • Nominal size (DN) (ATTR-118): 150
  • Outer diameter (OD) (ATTR-147): 160
  • Net weight (ATTR-A3A): 28  KGM
  • Gross weight (ATTR-A3B): 33.5  KGM
  • Installation depth (ATTR-B2_VB): 486  MMT
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Groundwater resistant from lower edge of base section (ATTR-B12): 3,000  MMT
  • Odour trap (ATTR-115): Multistop
  • Emergency closure (ATTR-153): yes
  • Pump control (ATTR-134): Control unit
  • Socket version (ATTR-233): including spigot and socket
  • Length (ATTR-A6A): 656  MMT
  • Width (ATTR-A6B): 590  MMT
  • Cutout dimension, length (ATTR-160): 750  MMT
  • Cutout dimension, width (ATTR-161): 750  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 290  MMT
  • Packaging dimension: width (ATTR-326): 196  MMT
  • Packaging dimension: height (ATTR-327): 102  MMT
  • Dimensions (ATTR-323): 290X196X102MM
  • Number of packages (ATTR-321): 0
  • Control unit (ATTR-S2): Comfort
  • Self-diagnosis system (SDS) (ATTR-S5): yes
  • Battery buffering (ATTR-S6): yes
  • Multi-line display (ATTR-S7): yes
  • Log book function (ATTR-S8): yes
  • USB interface (ATTR-S9): yes
  • GSM interface (ATTR-S10): yes
  • Potential-free contact (ATTR-S11): optional
  • Length of mains cable for control unit (ATTR-S12): 1.4  MTR
  • Operating voltage (ATTR-S13): 230  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Protection class control unit (ATTR-S4): IP 54
  • Alarm sensor (ATTR-S1): optical probe
  • Type of level measurement (ATTR-7A): optical
  • Level measurement instrument (ATTR-7B): optical probe
  • Type of cover (ATTR-A21): Cover plate with slotted cover
  • Colour of cover (ATTR-A2A): black
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Polymer
  • Drainage function (ATTR-A2H): yes
  • Length (ATTR-A2M): 366  MMT
  • Width (ATTR-A2N): 366  MMT
  • Declaration of Performance (DOP) (ATTR-292): 009-040
  • Declaration of conformity (ATTR-303): 009-567
  • Protection strategy (ATTR-311): Individual protection
  • Type of wastewater (ATTR-6): wastewater with sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Drains in the event of backwater
  • Protection class probe (ATTR-175): IP 68 (3m/48h)
  • Colour (ATTR-102): black
  • Protection class motor (ATTR-174): IP 68 (3m/48h)
  • Motor type (ATTR-120B): KSM 140
  • Approval (ATTR-A5): Z-53.2-388
  • Number of motor-driven backwater flaps (ATTR-3A): 1
  • External monitoring (ATTR-A8): LGA
  • Vertical drop between inlet and outlet (ATTR-176): 9  MMT
  • Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Hybrid lifting stations
  • Product type (M-ATTR-003): Backwater pumping station
  • Product family (M-ATTR-004): Pumpfix
  • Product name (M-ATTR-005): Pumpfix F
