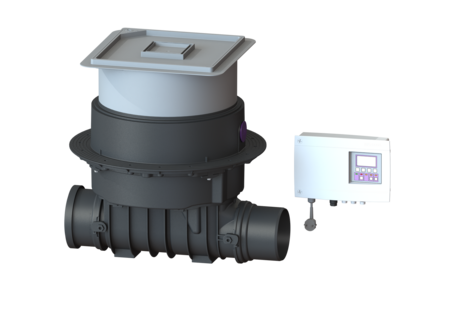

Backwater pumping station, Pumpfix F

DN 150, Floor slab, tileable

PDF product data sheet

The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface.

  • Backwater pumping station: uses the natural fall to the sewer - pump is only used for backwater
  • Flexible installation, different covers with drain function available for installation in the floor slab
  • Quiet and energy-saving
Item no. 24150X
GTIN 4026092046579
Discount group 6

Backwater pumping station, Pumpfix F DN 150, Floor slab, tileable
The premium backwater pumping station for faecal and non-faecal wastewater is equipped with a pump and a motor-driven closure system. The pipe cross-section is normally open. In case of backwater, the motor-driven closure system is closed automatically. During the backwater phase, the water drains via the pump with integrated macerator. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Version: Odour trap: Multistop Emergency closure: yes Pump control: Control unit Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Installation situation: floor slab installation Type of wastewater: wastewater with sewage Number of motor-driven backwater flaps: 1 General characteristics: Nominal size (DN): 150 Outer diameter (OD): 160 Colour: black Approval: Z-53.2-388 Dimensions: Length: 656 mm Width: 590 mm Cutout dimension, length: 750 mm Cutout dimension, width: 750 mm Tank: Installation depth: 486 - 640 mm Groundwater resistant from lower edge of base section: 3000 mm Drain body: Socket version: including spigot and socket Vertical adjustment: vertically adjustable upper section Coverage features: Type of cover: tileable cover plate Cover material: Polymer Drainage function: yes Max. flooring height: 16 mm Load class: K 3 (EN 1253-1) Length: 366 mm Width: 366 mm Locking: Lock & Lift Pumping device: Pump: SPZ 1000 Number of pumps: 1 Max. pumping capacity: 11.5 m3/h Max. pumping height: 10 m Operating mode: S3 - 50 % Power P1: 1.2 kW Power P2: 0.69 kW Speed: 2,800 U/min Type of fuse required (electrical protection): C 16 A Max. temperature (permanent) of conveyed material: 40 °C Connection type: coded plug Weight: 10 kg Impeller type: Macerator Length of mains cable for pump: 5 m Rated current: 5.2 A Protection class (pump): IP 68 (3m/48h) Protection class: I Type of pump connection cable: H07RN-F 3G 1.0 mm2 Temperature monitoring: integrated Cos phi - power factor: 0.97 Expected service life (number of switching cycles): 150,000 Expected service life (hours of operation): 5,000 Std Insulation class: F Max. permissible switching frequency: 20 1/h Vertical drop between inlet and outlet: 9 mm Motor type: KSM 140 Protection class motor: IP 68 (3m/48h) Protection class probe: IP 68 (3m/48h) Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: optical Level measurement instrument: optical probe Alarm sensor: optical probe

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162
Clearance code for potential-free contact 80077
10 m probe cable extension set 80889
Cable extension set for motor 10 m 80890
Cable prolongation set for pump 10 m 80891
Extension section H: 200 mm 83070
Extension section H: 234 mm, with flange and counter-flange 83073
Extension section H: 360 mm, with central flange 83075
  Title Item no.
Pump cover inlet side 28054
Pumpfix F Premium Komf. Cover outlet s. 28056
Vent for Pumpfix Premium 28060
Active carbon filter 28061
Pumpfix F Control Unit Komfort - IP 54 28071
KTP1000 cutting assembly replacement set 28075
Replacement pump AqualiftF/Pumpfix F 28351
Plug 680018
Battery 9 Volt Block 680034
Connection, rubber fitting, joint 680075
Flap holder 680101
Pressure pipe connection with backflow preventer 680104
Joint for intermediate part 680150
Cover tileable, Lock & Lift, ABS 680224
Staufix sealing gasket cover plate 686114
Gasket set (Pumpfix, Ecolift) 70319
Motor-driven backwater flap Premium 80038
Insert part f. motor-driven flap Premium 80039
Staufix FKA drive motor (KSM 140) 5m 80076
Replacement set optical probe 80888
Adapter set optical probe 80892
Cover plate 366 x 366 mm w. flat drain body, Multistop, tileable 830045
Upper section System 400 830065
Staufix Premium Spigot DN 150 83083
Staufix Premium Socket DN 150 83087
  • Installation situation (ATTR-1): floor slab installation
  • TÜV test mark (ATTR-376): ID 1111241793
  • Country of origin (ATTR-322): DE
  • Area of application (ATTR-264): drainage
  • Pump type (ATTR-265): Freestanding pump
  • Pump shaft position (ATTR-266): vertical
  • Pump design (ATTR-267): Dry rotor pump
  • Pump hydraulics (ATTR-268): single stage
  • Pump suction characteristic (ATTR-269): non-self-priming
  • Pump drive (ATTR-270): E-motor for alternating current
  • E-motor, type of startup (ATTR-271): direct
  • Pump casing material (ATTR-272): Polymer
  • Upper tolerance of the nominal frequency (+) (ATTR-275): 3  PROZ
  • Lower tolerance of the nominal frequency (-) (ATTR-276): 2  PROZ
  • Pump electrical connection (ATTR-277): 1/N/PE 230V
  • Motor pump shaft (ATTR-279): continuous
  • Shaft seal (ATTR-280): RSSR
  • Minimum pumped media temperature (ATTR-282): 0  CEL
  • Maximum operating pressure (Pmax) (ATTR-283): 1,000  HPA
  • Minimum speed for speed adjustment (ATTR-284): no speed adjustment
  • Start-up current (ATTR-285): 14.9  AMP
  • Vertical installation (ATTR-286): yes
  • Pump (ATTR-4): SPZ 1000
  • Number of pumps (ATTR-181): 1
  • Impeller type (ATTR-8): Macerator
  • Type of pump connection cable (ATTR-N2): H07RN-F 3G 1.0 mm2
  • Type of fuse required (electrical protection) (ATTR-N3): C 16 A
  • Max. permissible switching frequency (ATTR-162): 20  1PH
  • Operating mode (ATTR-10): S3 - 50 %
  • Power P1 (ATTR-F4): 1.2  KWT
  • Power P2 (ATTR-F5): 0.7  KWT
  • Speed (ATTR-F2): 2,800  UMIN
  • Rated current (ATTR-N5): 5.2  AMP
  • Max. pumping capacity (ATTR-F7): 11.5  MQH
  • Max. pumping height (ATTR-F8): 10  MTR
  • Max. temperature (permanent) of conveyed material (ATTR-132): 40  CEL
  • Protection class (ATTR-133): I
  • Connection type (ATTR-N1): coded plug
  • Protection class (pump) (ATTR-125): IP 68 (3m/48h)
  • Length of mains cable for pump (ATTR-11): 5  MTR
  • Temperature monitoring (ATTR-135): integrated
  • Weight (ATTR-191): 10  KGM
  • Cos phi - power factor (ATTR-192): 1.0
  • Insulation class (ATTR-193): F
  • Expected service life (hours of operation) (ATTR-194): 5,000  HUR
  • Expected service life (number of switching cycles) (ATTR-195): 150,000
  • Nominal size (DN) (ATTR-118): 150
  • Outer diameter (OD) (ATTR-147): 160
  • Net weight (ATTR-A3A): 28  KGM
  • Gross weight (ATTR-A3B): 33.5  KGM
  • Installation depth (ATTR-B2_VB): 486  MMT
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • Groundwater resistant from lower edge of base section (ATTR-B12): 3,000  MMT
  • Odour trap (ATTR-115): Multistop
  • Emergency closure (ATTR-153): yes
  • Pump control (ATTR-134): Control unit
  • Socket version (ATTR-233): including spigot and socket

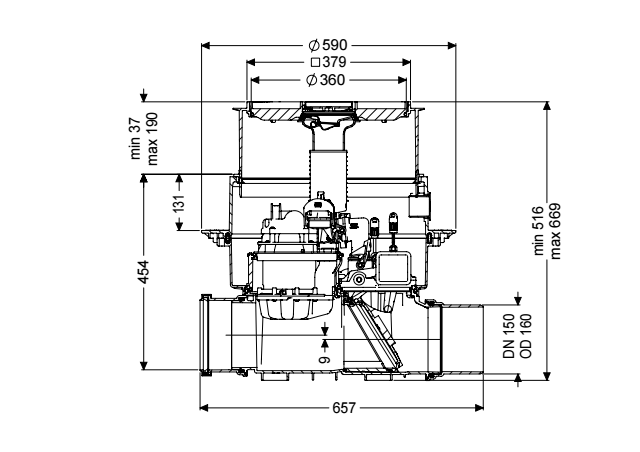

  • Length (ATTR-A6A): 656  MMT
  • Width (ATTR-A6B): 590  MMT
  • Cutout dimension, length (ATTR-160): 750  MMT
  • Cutout dimension, width (ATTR-161): 750  MMT
  • Volume (ATTR-320): 0.3  MTQ
  • Packaging dimension: length (ATTR-325): 785  MMT
  • Packaging dimension: width (ATTR-326): 615  MMT
  • Packaging dimension: height (ATTR-327): 550  MMT
  • Dimensions (ATTR-323): 785X615X550MM
  • Number of packages (ATTR-321): 0
  • Control unit (ATTR-S2): Comfort
  • Self-diagnosis system (SDS) (ATTR-S5): yes
  • Battery buffering (ATTR-S6): yes
  • Multi-line display (ATTR-S7): yes
  • Log book function (ATTR-S8): yes
  • USB interface (ATTR-S9): yes
  • GSM interface (ATTR-S10): yes
  • Potential-free contact (ATTR-S11): optional
  • Length of mains cable for control unit (ATTR-S12): 1.4  MTR
  • Operating voltage (ATTR-S13): 230  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Protection class control unit (ATTR-S4): IP 54
  • Alarm sensor (ATTR-S1): optical probe
  • Type of level measurement (ATTR-7A): optical
  • Level measurement instrument (ATTR-7B): optical probe
  • Type of cover (ATTR-A21): tileable cover plate
  • Load class (ATTR-A2B): K 3 (EN 1253-1)
  • Locking (ATTR-A2D): Lock & Lift
  • Cover material (ATTR-A2E): Polymer
  • Drainage function (ATTR-A2H): yes
  • Max. flooring height (ATTR-A2L): 16  MMT
  • Length (ATTR-A2M): 366  MMT
  • Width (ATTR-A2N): 366  MMT
  • Declaration of Performance (DOP) (ATTR-292): 009-040
  • Declaration of conformity (ATTR-303): 009-567
  • Protection strategy (ATTR-311): Individual protection
  • Type of wastewater (ATTR-6): wastewater with sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Drains in the event of backwater
  • Protection class probe (ATTR-175): IP 68 (3m/48h)
  • Colour (ATTR-102): black
  • Protection class motor (ATTR-174): IP 68 (3m/48h)
  • Motor type (ATTR-120B): KSM 140
  • Approval (ATTR-A5): Z-53.2-388
  • Number of motor-driven backwater flaps (ATTR-3A): 1
  • External monitoring (ATTR-A8): LGA
  • Vertical drop between inlet and outlet (ATTR-176): 9  MMT
  • Delivery state (ATTR-189): Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected)
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Hybrid lifting stations
  • Product type (M-ATTR-003): Backwater pumping station
  • Product family (M-ATTR-004): Pumpfix
  • Product name (M-ATTR-005): Pumpfix F
