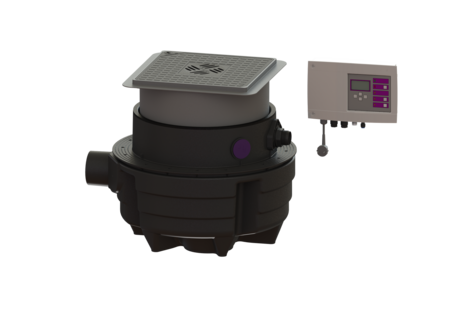

Lifting station Aqualift F Comp.

Duo, SPZ 1000, resist. Floor slab, black

KESSEL Lifting station Aqualift F Comp. Duo, wastewater with sewage, type of cover Cover plate with slotted cover, floor slab installation, installation depth 490 - 600 mm, with 2 submersible SPZ 1000 resistant pumps

  • Suitable for complete basement drainage
  • Integrated drainage function when installed in the floor slab
  • Maximum operating reliability due to intelligent control unit (Duo)
Item no. 28704SC
GTIN 4026092093672
Price group 20

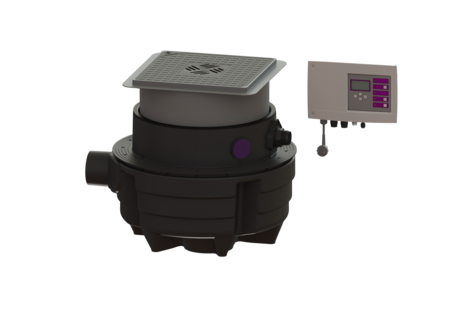

    Lifting station Aqualift F Comp. Duo, SPZ 1000, resist. Floor slab, black
    The lifting station for faecal and faecal-free wastewater is equipped with one or two submersible pumps and a backflow preventer. The collection tank made of permanently resistant polymer (PE) has an enclosed pump tank. One-handed closures enable easy removal of the integrated components. Variant Type of system: duo pump Shut-off valve: without shut-off valve Resistant: Resistant to saline media, wastewater from water softening systems and wastewater containing condensate from heating systems Pump control: Control unit Backflow preventer: integrated Pressure pipe connection: horizontal General characteristics Colour: black Type of wastewater: with sewage Installation situation: floor slab installation Delivery state: Pre-mounted for final assembly on site (pumps and sensor system must be fitted on site and control unit must be connected) Approval: Z-53.2-484 System type: Duo ATEX: no Odour trap: Multistop Dimensions Net weight: 42,5 kg Gross weight: 47,5 kg Groundwater resistant from lower edge of base section: 3000 mm Cutout dimension, width: 800 mm Cutout dimension, length: 800 mm Installation depth: 490 - 600 mm Type of height adjustability: vertically adjustable upper section Length: 670 mm Width: 590 mm Packaging dimension: length: 620 mm Packaging dimension: width: 620 mm Packaging dimension: height: 1030 mm Tank/drain body Pressure pipe connection (DN): 32 Pressure pipe connection (OD): 40 mm Connection conduit pipe (DN): 50 Venting connection (DN): 70 Distance from centre of outlet pipe to tank bottom: 351 mm Distance pipe bottom outlet to tank bottom: 351 mm Distance pipe bottom inlet to tank bottom: 152 mm Distance from centre of inlet pipe to tank bottom: 207 mm Inlet nominal size (OD): 110 mm Inlet nominal size (DN): 100 mm Number of inlets: 1 Pumping volume: 20 l Tank volume: 40 l Coverage features Type of cover: Cover plate with slotted cover Cover material: Polymer Colour of cover: black Width of cover: 366 mm Length of cover: 366 mm Drainage function: yes Locking: Lock & Lift Pumping device Pump: SPZ 1000 resistant Number of pumps: 2 Weight, pump: 10 kg Connection type: coded plug Rated current: 5,2 A Protection class: I Insulation class: F Cos phi - power factor: 0,97 Protection class (pump): IP 68 Temperature monitoring: integrated Max. temperature (permanent) of conveyed material: 40 °C Hot water resistance for a short time (2 min): 80 °C Max. pumping capacity: 11,5 m³/h Max. pumping height: 10 m Speed: 2800 U/min Power P1: 1,2 kW Power P2: 0,69 kW Operating mode: S3 - 50 % Type of fuse required (electrical protection): Fuse protection through control unit 230 V Type of pump connection cable: H07RN-F 3G 1.5 mm² Impeller type: Macerator Length of mains cable for pump: 5 m Control Control unit: Comfort Control unit function: With alarm message Motor protection switch: yes Alarm sensor: optical probe Level measurement instrument: Immersion pipe Type of level measurement: pneumatic Protection class control unit: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Connection type: coded plug Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Warning equipment version: acoustic and optical signal Rated current: 5,2 A Type of fuse required (electrical protection): Fuse protection through control unit 230 V
      Title Item no.
      Title Item no.
      Title Item no.
    Adapter DN 50/70 27126 Show
    Adapter DN 100/70 27602 Show
    Pressure pipe set 5 m pressure hose, DA 40 mm 28040 Show
    Pressure pipe set with 5 m pressure hose, DA 50 mm 28062 Show
    Adapter for pressure pipe connection, DN 32, PE 28086 Show
    Odour trap Multistop, System 125 48500 Show
    Odour trap Megastop 48550 Show
    Hair filter Polymer, for System 125 bathroom drains 48700 Show
    Drain body for cover plate for Multistop, black 680796 Show
    Drain body for cover plate for Multistop, grey 680798 Show
    Cover plate black, surface water resist., 384x384 mm 83050 Show
    Cover plate tileable, surface water rest., 384x384mm 83052 Show
    Extension section H: 200 mm 83070 Show
    Extension section H: 234 mm, with flange and mating flange 83073 Show
    Extension section H: 360 mm, with central flange 83075 Show
    Waterproof concrete install. kit OD: 40 mm, for building contractors 83077 Show
      Title Item no.
    Splash guard set for optical probe 28706 Show
    Cover for pump opening 28732 Show
    Pump plate Aqualift F Compact 28733 Show
    Connector Immersion pipe 28734 Show
    Control unit Comfort Duo, 230 V 28746 Show
    Odour trap Multistop, System 125 48500 Show
    One-handed closure for backflow preventer 680018 Show
    Battery 9 V block 680034 Show
    Pump connection for pumping stations, up to 12/2015 680065 Show
    Seal for pressure pipe connection 680067 Show
    Turn fastener for pumps 680070 Show
    Pressure hose Sold by the metre, 6x4 mm 100 680071 Show
    Drain connection DN 70, for Pumpfix, Ecolift, Aqualift F 680075 Show
    Cover with seal 680076 Show
    Seal for upper section, from 07/2014 680150 Show
    Seal set Aqualift F Compact Duo 680454 Show
    Pump connection Aqualift F Compact, Duo, from 01/2016 680487 Show
    Threaded connection for Aqualift F Compact 680676 Show
    Odour trap for The Ultraflat 79 680696 Show
    Immersion pipe level measurement for Aqualift S Compact 680776 Show
    Replacement pump SPZ 1000 resistant 680951 Show
    Seal for cover plate, System 330 mm 686114 Show
    Spare part set, optical probe 5 m cable 80888 Show
    Adapter Set optical probe 80892 Show
    Cover plate 366 x 366 mm high drain body, 50 mm odour trap, black 830056 Show
    Upper section system 400 Lockable, silver-grey 830065 Show
    • Type of wastewater (abwasserart_de): with sewage
    • Control unit (schaltgeraet): Comfort
    • Cover material (abdeckung_material): Polymer
    • Installation situation (einbausituation): floor slab installation
    • Type of cover (abdeckungsart): Cover plate with slotted cover
    • Pump (pumpe): SPZ 1000 resistant
    • (ausfuehrung):
