Ecoguss project drain, press. fl.

DN 100, horiz., Variofix, Slotted cover

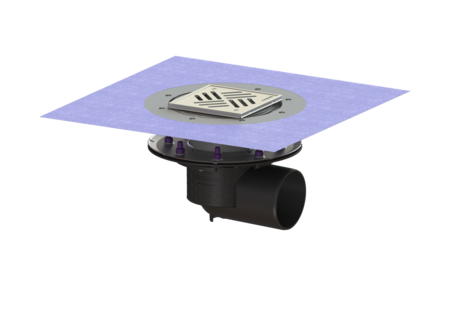

KESSEL Ecoguss project drain, press. fl., nominal size (DN) 100, cover length 138 mm, socket lateral, odour trap included, drainage by Point drain, flooring height max. 17 mm, type of cover Slotted cover, adjustable in three dimensions

  • Scientifically confirmed sound protection effect
  • Highest fire protection standards
Item no. 48711.51
GTIN 4026092053263
Price group 40

    Ecoguss project drain, press. fl. DN 100, horiz., Variofix, Slotted cover

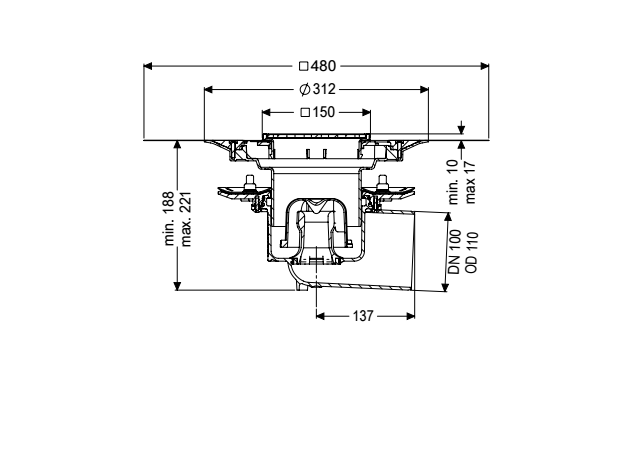

    The Ecoguss project drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap, a lip seal and a temporary protective cover. The recyclable composite material Ecoguss meets the highest noise protection requirements, is temperature-resistant, resistant to aggressive media, and has a permanently corrosion-free surface. It is also briefly flammable from 100 to 400 degrees Celsius. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. Only the sealing sheets tested by the manufacturer may be used for watertight seals. The outlet socket is suitable for connection to SML cast iron pipes. Separate equipotential bonding is not necessary. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 100 Outer diameter (OD): 110 mm Dimensions Net weight: 3,9 kg Gross weight: 4,88 kg Vertical adjustment: vertically adjustable upper section Length: 273 mm Width: 273 mm Packaging dimension: length: 586 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Tank/drain body Number of outlets: 1 Material of drain body: Ecoguss System: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Colour of cover: silver Width of cover: 138 mm Length of cover: 138 mm Min. flooring height: 10 mm Frame material: Stainless steel 14301 Cover locking: screwed Load class: K 3 (EN 1253-1) Rim length: 150 mm Rim material: 150 mm Max. flooring height: 17 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section H: 140 mm, with glued flange 48403 Show
    Extension section H: 147 mm, with pressure sealing flange 48404 Show
    Extension section H: 120 mm, with glued flange 48900 Show
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
      Title Item no.
    Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    Ecoguss pressure sealing flange System 125, incl. fixing clips 48407 Show
    Waterproofing membrane for joint sealing, liquid 48651 Show
    Ecoguss drain body Press. fl., DN 100, Horizontal outlet 48711 Show
    Variofix upper section Slotted cover, 304 SST, K 3 48963 Show
    • Nominal size (DN) (nennweite): 100
    • Material of drain body (material_grundkoerper): Ecoguss
    • Cover material (abdeckung_material): Stainless steel 14301
    • Frame material (rahmen_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • System (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): K 3 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
