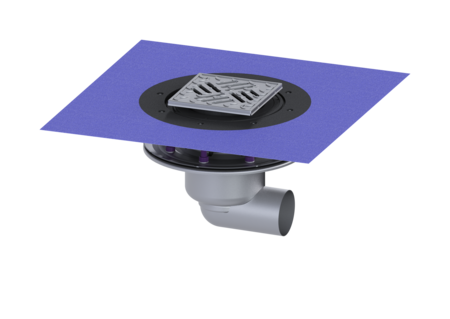

Ferrofix floor drain press, fl.

DN 70, horiz., Waterpr layer, Slot grt

The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding.

  • Made of particularly hygienic and mechanically highly resistant stainless steel
  • High flow rate
Item no. 54200.52
GTIN 4026092056325
Price group 70

    Ferrofix floor drain press, fl. DN 70, horiz., Waterpr layer, Slot grt
    The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Press sealing flange (suitable for creating watertight seals) Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm Dimensions Vertical adjustment: 10 - 18 mm Net weight: 4,43 kg Gross weight: 5,42 kg Vertical adjustment: vertically adjustable upper section Width: 273 mm Length: 273 mm Packaging dimension: width: 386 mm Packaging dimension: height: 400 mm Packaging dimension: length: 586 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 System: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Surface: Polished SST Cover locking: screwed Load class: L 15 (EN 1253-1) Slip resistance class: R11 according to DIN 51130; C according to DIN 51097 Rim length: 150 mm Rim material: 150 mm Upper section: adjustable in three dimensions Shape of upper section: square Upper section material: ABS Odour trap: included
      Title Item no.
      Title Item no.
      Title Item no.
    Extension section H: 136 mm, without inlet 48987 Show
    Extension section H: 136 mm, with side inlet DN 50 48989 Show
    Extension section System 125, with pressure sealing flange 54187 Show
    Extension section System 125, side inlet DN 50/40 54189 Show
    Extension section System 125, 304 stainless steel 54900 Show
    Extension section System 125, with glued flange 54901 Show
    Extension section System 125, Side inlet DN 50 54902 Show
    Extension section System 125, horiz Inlet DN 50, Gl fl. 54903 Show
      Title Item no.
    Odour trap for Practicus, Ecoguss, Ferrofix 27169 Show
    Waterproofing membrane for joint sealing, liquid 48651 Show
    Variofix upper section Slotted cover, 304 SST, anti-slip, L 15 48907 Show
    Ferrofix drain body Sys125, DN 70, Horiz outlet, Press. fl. 54200 Show
    • Nominal size (DN) (nennweite): 70
    • Material of drain body (material_grundkoerper): Stainless steel 14301
    • Cover material (abdeckung_material): Stainless steel 14301
    • Upper section material (material_aufsatzstueck): ABS
    • System (stutzen_ausfuehrung): lateral
    • Load class (belastungsklasse): L 15 (EN 1253-1)
    • Odour trap (geruchsverschluss): included
    • Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
