Ferrofix floor drain

DN 70, horiz., Waterproofing layer, Slotted grating

PDF product data sheet

The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes.

  • Made of particularly hygienic and mechanically highly resistant stainless steel
Item no. 54400.21
GTIN 4026092056363
Discount group 3

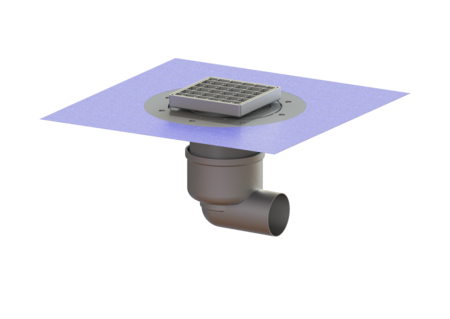

Ferrofix floor drain DN 70, horiz., Waterproofing layer, Slotted grating
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Version: System: 125 Odour trap: included Type of waterproofing layer: Waterproofing layer Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics: Nominal size (DN): 70 Outer diameter (OD): 78 Standard: EN 1253-1 Dimensions: Length: 181 mm Width: 142 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Stainless steel 14301 Socket version: lateral Vertical adjustment: vertically adjustable upper section Vertical adjustment: 23 - 40 mm Upper section: adjustable in three dimensions Coverage features: Type of cover: Slotted cover Cover material: Stainless steel 14301 Load class: L 15 (EN 1253-1) Length: 138 mm Width: 138 mm Surface: pickled Locking: unlocked Grating: Rim length: 150 mm Rim width: 150 mm Shape of upper section: square Upper section material: ABS Discharge rate (l/s) with 10 mm backwater: 1.5 l/s Discharge rate (l/s) with 20 mm backwater: 1.9 l/s

Video

  Title Item no.
  Title Item no.
  Title Item no.
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
Extension section System 125, with pressure sealing flange 54187
Extension section System 125, side inlet DN 50/40 54189
Extension section System 125, 304 stainless steel 54900
Extension section System 125, with glued flange 54901
Extension section System 125, Side inlet DN 50 54902
Extension section System 125, horiz Inlet DN 50, Gl fl. 54903
  Title Item no.
Odour trap for Practicus, Ecoguss, Ferrofix 27169
Waterproofing membrane for joint sealing, liquid 48651
Variofix upper section Slotted grating, 304 SST, L 15 48965
Odour trap Ferrofix, Sealing water height 50 mm 54188
Ferrofix drain body Sys 125, DN 70, Horizontal outlet 54400
  • Rim length (ATTR-111B): 150  MMT
  • Rim width (ATTR-111C): 150  MMT
  • Nominal size (DN) (ATTR-118): 70
  • Waterproofing layer on the drain body (ATTR-250): Connection flange
  • Waterproofing layer on the upper section (ATTR-251): Enclosed sealing collar to be glued (bd) according to DIN 18534
  • Temperature class (ATTR-253): A
  • Complete article (ATTR-254): yes
  • Electrical connection available (ATTR-256): no
  • Connection to the BCS, BAC (ATTR-257): no
  • Shape of upper section (ATTR-259): square
  • Type of drainage (ATTR-260): Point drain
  • Grating/channel shape (ATTR-261): square
  • Type of drainage (ATTR-263): open channel
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Outer diameter (OD) (ATTR-147): 78
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 1.9  LTS
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1.5  LTS
  • Upper section material (ATTR-231): ABS
  • Vertical adjustment (ATTR-226_VB): 23  MMT
  • Upper section (ATTR-337): adjustable in three dimensions
  • Length (ATTR-A6A): 181  MMT
  • Width (ATTR-A6B): 142  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 490  MMT
  • Packaging dimension: width (ATTR-326): 275  MMT
  • Packaging dimension: height (ATTR-327): 495  MMT
  • Dimensions (ATTR-323): 490X275X495MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Stainless steel 14301
  • Socket version (ATTR-233): lateral
  • Type of cover (ATTR-A21): Slotted cover
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): unlocked
  • Cover material (ATTR-A2E): Stainless steel 14301
  • Surface (ATTR-A2F): pickled
  • Length (ATTR-A2M): 138  MMT
  • Width (ATTR-A2N): 138  MMT
  • Type of waterproofing layer (ATTR-170): Waterproofing layer
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Net weight (ATTR-A3A): 4.0  KGM
  • Gross weight (ATTR-A3B): 4.7  KGM
  • Standard (ATTR-9): EN 1253-1
  • Sealing water height (ATTR-128): 50  MMT
  • External monitoring (ATTR-A8): LGA
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • NDOP (ATTR-304): 009-057
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Floor drain
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
