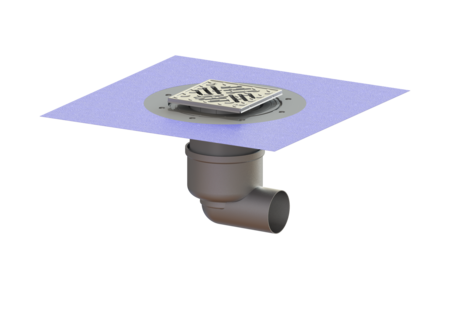

Ferrofix floor drain press, fl.
DN 70, horiz., Waterpr layer, Slot grt
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a pressure sealing flange as well as a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The pressure sealing flange with bolts and screws made of stainless steel is used for the clamping or welding of bitumen and polymer bitumen sheets as well as for polymer and elastomer sealing sheets. The outlet socket is suitable for connection to SML cast iron pipes. With connection option for equipotential bonding.
- Made of particularly hygienic and mechanically highly resistant stainless steel
- High flow rate
Item no. | 54400.52 |
---|---|
GTIN | 4026092056288 |
Price group | 70 |
Ferrofix floor drain press, fl. DN 70, horiz., Waterpr layer, Slot grt
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Variant System: 125 Waterproofing layer on the upper section: Enclosed sealing collar to be glued (bd) according to DIN 18534 Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics Standard: EN 1253-1 Nominal size (DN): 70 Outer diameter (OD): 78 mm Dimensions Vertical adjustment: 10 - 18 mm Net weight: 3,16 kg Gross weight: 3,92 kg Vertical adjustment: vertically adjustable upper section Width: 142 mm Length: 181 mm Packaging dimension: width: 275 mm Packaging dimension: height: 495 mm Packaging dimension: length: 490 mm Tank/drain body Number of outlets: 1 Material of drain body: Stainless steel 14301 System: lateral Coverage features Type of cover: Slotted cover Cover material: Stainless steel 14301 Width of cover: 138 mm Length of cover: 138 mm Cover locking: screwed Load class: L 15 (EN 1253-1) Slip resistance class: R11 according to DIN 51130; C according to DIN 51097 Rim length: 150 mm Rim material: 150 mm Upper section: adjustable in three dimensions Upper section material: ABS Odour trap: included
Title | Item no. |
---|
Title | Item no. |
---|
Title | Item no. | ||
---|---|---|---|
Extension section H: 136 mm, without inlet | 48987 | Show | |
Extension section H: 136 mm, with side inlet DN 50 | 48989 | Show | |
Extension section System 125, with pressure sealing flange | 54187 | Show | |
Extension section System 125, side inlet DN 50/40 | 54189 | Show | |
Extension section System 125, 304 stainless steel | 54900 | Show | |
Extension section System 125, with glued flange | 54901 | Show | |
Extension section System 125, Side inlet DN 50 | 54902 | Show | |
Extension section System 125, horiz Inlet DN 50, Gl fl. | 54903 | Show |
- Nominal size (DN) (nennweite): 70
- Material of drain body (material_grundkoerper): Stainless steel 14301
- Cover material (abdeckung_material): Stainless steel 14301
- Upper section material (material_aufsatzstueck): ABS
- System (stutzen_ausfuehrung): lateral
- Load class (belastungsklasse): L 15 (EN 1253-1)
- Odour trap (geruchsverschluss): included
- Waterproofing layer on the upper section (abdichtung_aufsatzstueck): Enclosed sealing collar to be glued (bd) according to DIN 18534
