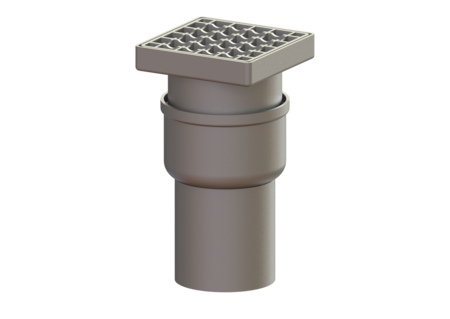

Ferrofix floor drain

DN 100, vertical, Slotted grating, SST

PDF product data sheet

The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes.

  • Made of particularly hygienic and mechanically highly resistant stainless steel
Item no. 54430.20
GTIN 4026092056479
Discount group 3

Ferrofix floor drain DN 100, vertical, Slotted grating, SST
The Ferrofix stainless steel floor drain is used for point drainage and is equipped with a removable odour trap made of stainless steel, a lip seal and a temporary protective cover. The outlet socket is suitable for connection to SML cast iron pipes. Version: System: 125 Odour trap: included Waterproofing layer on the upper section: Connection flange Waterproofing layer on the drain body: Connection flange Sealing water height: 50 mm General characteristics: Nominal size (DN): 100 Outer diameter (OD): 110 Standard: EN 1253-1 Dimensions: Length: 142 mm Width: 142 mm Tank: Number of outlets: 1 ST Drain body: Material of drain body: Stainless steel 14301 Socket version: vertical Vertical adjustment: vertically adjustable upper section Upper section: vertically adjustable Coverage features: Type of cover: Slotted cover Cover material: Stainless steel 14301 Load class: L 15 (EN 1253-1) Length: 138 mm Width: 138 mm Locking: unlocked Grating: Rim length: 150 mm Rim width: 150 mm Upper section material: Stainless steel 14301 Discharge rate (l/s) with 10 mm backwater: 1.5 l/s Discharge rate (l/s) with 20 mm backwater: 2.2 l/s

Video

  Title Item no.
  Title Item no.
  Title Item no.
Fire protection insert Fire-Kit 100, for DN 50, 70, 80 48099
Fire protection insert Fire-Kit 100, for DN 100 48100
Extension section H: 136 mm, without inlet 48987
Extension section H: 136 mm, with side inlet DN 50 48989
Quick-Fit pipe penetration seal for core drillholes, with fire protection 48990
Extension section System 125, with pressure sealing flange 54187
Extension section System 125, side inlet DN 50/40 54189
Extension section System 125, 304 stainless steel 54900
Extension section System 125, with glued flange 54901
Extension section System 125, Side inlet DN 50 54902
Extension section System 125, horiz Inlet DN 50, Gl fl. 54903
  Title Item no.
Odour trap for Practicus, Ecoguss, Ferrofix 27169
Odour trap Ferrofix, Sealing water height 50 mm 54188
Ferrofix drain body Sys 125, DN 100, Vertical outlet 54430
Ferrofix upper section Sys 125, Slotted grating, 150 x 150 mm 54914
Slotted grating solid, SST 680223
  • Rim length (ATTR-111B): 150  MMT
  • Rim width (ATTR-111C): 150  MMT
  • Nominal size (DN) (ATTR-118): 100
  • Waterproofing layer on the drain body (ATTR-250): Connection flange
  • Waterproofing layer on the upper section (ATTR-251): Connection flange
  • - (ATTR-340):
  • Country of origin (ATTR-322): DE
  • Outer diameter (OD) (ATTR-147): 110
  • Discharge rate (l/s) with 20 mm backwater (ATTR-157): 2.2  LTS
  • Discharge rate (l/s) with 10 mm backwater (ATTR-157B): 1.5  LTS
  • Upper section material (ATTR-231): Stainless steel 14301
  • Upper section (ATTR-337): vertically adjustable
  • Length (ATTR-A6A): 142  MMT
  • Width (ATTR-A6B): 142  MMT
  • Volume (ATTR-320): 0.0  MTQ
  • Packaging dimension: length (ATTR-325): 390  MMT
  • Packaging dimension: width (ATTR-326): 190  MMT
  • Packaging dimension: height (ATTR-327): 310  MMT
  • Dimensions (ATTR-323): 390X190X310MM
  • Number of packages (ATTR-321): 0
  • Number of outlets (ATTR-B15B): 1  PCE
  • Material of drain body (ATTR-232): Stainless steel 14301
  • Socket version (ATTR-233): vertical
  • Type of cover (ATTR-A21): Slotted cover
  • Load class (ATTR-A2B): L 15 (EN 1253-1)
  • Locking (ATTR-A2D): unlocked
  • Cover material (ATTR-A2E): Stainless steel 14301
  • Length (ATTR-A2M): 138  MMT
  • Width (ATTR-A2N): 138  MMT
  • Odour trap (ATTR-115): included
  • System (ATTR-244): 125
  • Net weight (ATTR-A3A): 3.4  KGM
  • Gross weight (ATTR-A3B): 3.7  KGM
  • Standard (ATTR-9): EN 1253-1
  • Sealing water height (ATTR-128): 50  MMT
  • External monitoring (ATTR-A8): LGA
  • Vertical adjustment (ATTR-177): vertically adjustable upper section
  • NDOP (ATTR-304): 009-057
  • Product class, temperature rating (ATTR-223): A
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Drains
  • Product type (M-ATTR-003): Floor drain
  • Product family (M-ATTR-004): Ferrofix
  • Product name (M-ATTR-005): Ferrofix
