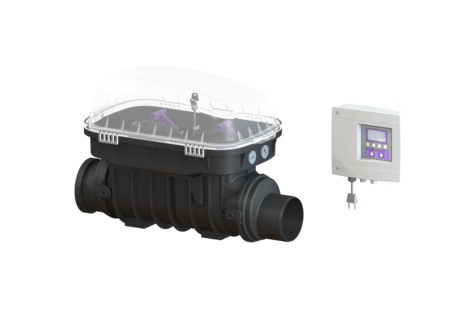

Staufix FKA auto. backwater valve
DN 125, exposed
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station.
- Safe, motor-driven closure system with optical probe
- Fast, simple and toolless maintenance
- Available as a complete set or module set
| Item no. | 84125 |
|---|---|
| GTIN | 4026092046340 |
| Price group | 30 |
Staufix FKA auto. backwater valve DN 125, exposed
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station. Variant Emergency closure: yes Protection class, probe: IP 68 (3m/48h) Motor-driven backwater flaps: 1 Mechanical backwater flaps: 1 General characteristics Colour: black Standard: EN 13564 Nominal size (DN): 125 Outer diameter (OD): 125 mm Type of wastewater: with sewage Installation situation: exposed drainage pipe Delivery state: installation-ready Backwater protection: Type 3 Motor type: KSM 140 Protection class (pump): IP 68 (3m/48h) Cable length: 5 m Dimensions Net weight: 12 kg Gross weight: 13,5 kg Vertical drop between inlet and outlet: 9 mm Width: 350 mm Height: 422 mm Length: 645 mm Packaging dimension: width: 350 mm Packaging dimension: height: 421,7 mm Packaging dimension: length: 644,5 mm Tank/drain body System: including spigot and socket Coverage features Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Width of cover: 350 mm Height of cover: 165 mm Length of cover: 542 mm Cover locking: Clip closure Control Alarm sensor: optical probe Level measurement instrument: optical probe Type of level measurement: optical Protection class probe: IP 54 Mains frequency: 50 Hz Operating voltage: 230 V Length of mains cable for control unit: 1,4 m Potential-free contact: optional GSM interface: yes USB interface: yes Log book function: yes Multi-line display: yes Battery buffering: yes Self-diagnosis system (SDS): yes Max. permissible switching frequency: Comfort Connection to the BCS, BAC: yes
| Title | Item no. |
|---|
| Title | Item no. |
|---|
| Title | Item no. | ||
|---|---|---|---|
 | Remote signal generator 20 m cable, 2x0.75 q | 20162 | Show |
 | Clearance code for potential-free contact | 80077 | Show |
 | Pumpfix F conversion kit DN 100-200, fr. 01/2011, exposed | 80097 | Show |
 | 10 m probe cable extension set | 80889 | Show |
 | Cable extension set for motor 10 m | 80890 | Show |
 | Cable prolongation set for pump 10 m | 80891 | Show |
| Title | Item no. | ||
|---|---|---|---|
 | Battery 9 V block | 680034 | Show |
 | Flap holder for motor-driven and mechanical flap | 680101 | Show |
 | Staufix test funnel with seal | 70214 | Show |
 | Dichtungsset I für Kessel-Staufix Premiu | 70318 | Show |
 | Staufix Premium FKA cover | 80016 | Show |
 | Staufix Premium FKA cover | 80017 | Show |
 | Motor-driven backwater flap Premium | 80038 | Show |
 | Insert part f. motor-driven flap Premium | 80039 | Show |
 | Backwater flap / Insert Premium | 80041 | Show |
 | Control unit Comfort 230V, Staufix FKA | 80071 | Show |
 | Staufix FKA drive motor (KSM 140) 5m | 80076 | Show |
 | Spare part set optical probe | 80888 | Show |
 | FKA Staufix Protective cover | 83031 | Show |
 | FKA Staufix transition piece | 83032 | Show |
 | Staufix Premium Spigot DN 125 | 83082 | Show |
 | Staufix Premium Socket DN 125 | 83086 | Show |
| Manuals | |
|---|---|
| CAD Data | |
| Test Reports and Certificates | |
| Declaration of Performance | |
| Declaration of Conformity |
- Nominal size (DN) (nennweite): 125
- Control unit (schaltgeraet):
Comfort
- Cover material (abdeckung_material):
Polymer
- Installation situation (einbausituation):
exposed drainage pipe
- CE marking (ce_kennzeichnung):
yes
- Type of wastewater (abwasserart_de):
with sewage
- Length (laenge): 645 mm
- Width (breite): 350 mm
- Backwater protection (rueckstauschutz): Type 3
