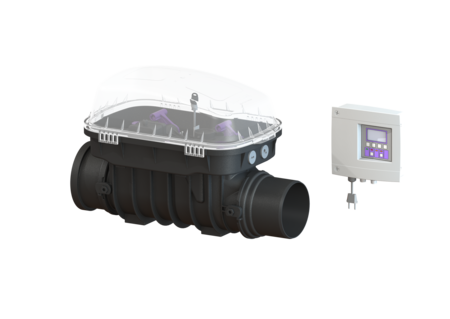

Staufix FKA automatic backwater valve

DN 150, exposed

PDF product data sheet

The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station.

  • Safe, motor-driven closure system with optical probe
  • Fast, simple and toolless maintenance
  • Available as a complete set or module set
Item no. 84150
GTIN 4026092046357
Discount group 6

Staufix FKA automatic backwater valve DN 150, exposed
The Premium automatic backwater valve for faecal and faecal-free wastewater is equipped with a motor-driven closure system which is closed automatically in the event of backwater. A second closure system serves as an emergency closure to be closed by hand. The station is controlled by a user-friendly control unit, which is optionally integrated in the building management system via a potential-free contact, or alarm and collective fault messages can be output via a GSM interface. Thanks to the modular KESSEL system, existing systems can easily be converted to a Pumpfix F backwater pumping station. Version: Emergency closure: yes Delivery state: installation-ready Installation situation: exposed drainage pipe Type of wastewater: wastewater with sewage Backwater protection: Type 3 Number of mechanical backwater flaps: 1 Number of motor-driven backwater flaps: 1 General characteristics: Nominal size (DN): 150 Outer diameter (OD): 160 Colour: black Standard: EN 13564 Dimensions: Length: 656 mm Width: 350 mm Height: 422 mm Drain body: Socket version: including spigot and socket Coverage features: Type of cover: Protective cover Cover material: Polymer Colour of cover: transparent Length: 542 mm Width: 350 mm Height: 165 mm Locking: Clip closure Vertical drop between inlet and outlet: 9 mm Cable length: 5 m Motor type: KSM 140 Protection class motor: IP 68 (3m/48h) Protection class probe: IP 68 (3m/48h) Control: Control unit: Comfort Operating voltage: 230 V Mains frequency: 50 Hz Self-diagnosis system (SDS): yes Battery buffering: yes Multi-line display: yes Log book function: yes USB interface: yes GSM interface: yes Potential-free contact: optional Protection class control unit: IP 54 Length of mains cable for control unit: 1.4 m Type of level measurement: optical Level measurement instrument: optical probe Alarm sensor: optical probe

Installation Video

  Title Item no.
  Title Item no.
  Title Item no.
Remote signal generator 20 m cable, 2x0.75 q 20162
Clearance code for potential-free contact 80077
Pumpfix F conversion kit DN 100-200, fr. 01/2011, exposed 80097
10 m probe cable extension set 80889
Cable extension set for motor 10 m 80890
Cable prolongation set for pump 10 m 80891
  Title Item no.
Battery 9 Volt Block 680034
Flap holder 680101
Staufix test funnel with seal 70214
Dichtungsset I für Kessel-Staufix Premiu 70318
Staufix Premium FKA cover 80016
Staufix Premium FKA cover 80017
Motor-driven backwater flap Premium 80038
Insert part f. motor-driven flap Premium 80039
Backwater flap / Insert Premium 80041
FKA Control unit Komfort - IP54 80071
Staufix FKA drive motor (KSM 140) 5m 80076
Replacement set optical probe 80888
FKA Staufix Protective cover 83031
FKA Staufix transition piece 83032
Staufix Premium Spigot DN 150 83083
Staufix Premium Socket DN 150 83087
  • Installation situation (ATTR-1): exposed drainage pipe
  • Country of origin (ATTR-322): DE
  • Nominal size (DN) (ATTR-118): 150
  • Outer diameter (OD) (ATTR-147): 160
  • Net weight (ATTR-A3A): 10  KGM
  • Gross weight (ATTR-A3B): 13.5  KGM
  • Delivery state (ATTR-189): installation-ready
  • Electrical connection available (ATTR-256): yes
  • Type of operating voltage (ATTR-288): alternating voltage (AC)
  • Upper tolerance of the operating voltage (+) (ATTR-273): 10  PROZ
  • Lower tolerance of the operating voltage (-) (ATTR-274): 10  PROZ
  • Connection to the BCS, BAC (ATTR-257): yes

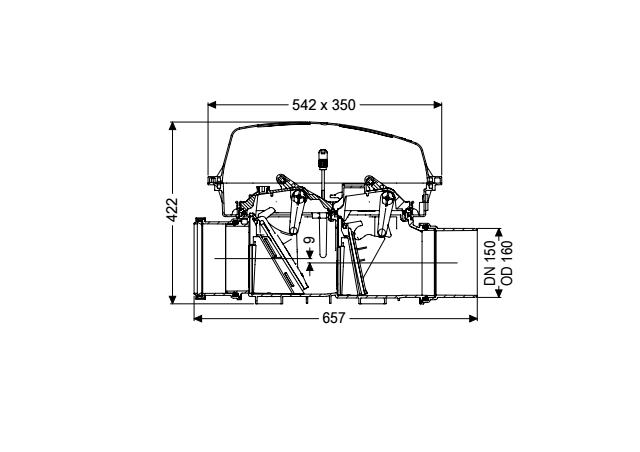

  • Length (ATTR-A6A): 656  MMT
  • Width (ATTR-A6B): 350  MMT
  • Height (ATTR-A6C): 422  MMT
  • Volume (ATTR-320): 0.1  MTQ
  • Packaging dimension: length (ATTR-325): 656.1  MMT
  • Packaging dimension: width (ATTR-326): 350  MMT
  • Packaging dimension: height (ATTR-327): 421.7  MMT
  • Dimensions (ATTR-323): 656,1X350X421,7MM
  • Number of packages (ATTR-321): 0
  • Emergency closure (ATTR-153): yes
  • Socket version (ATTR-233): including spigot and socket
  • Control unit (ATTR-S2): Comfort
  • Self-diagnosis system (SDS) (ATTR-S5): yes
  • Battery buffering (ATTR-S6): yes
  • Multi-line display (ATTR-S7): yes
  • Log book function (ATTR-S8): yes
  • USB interface (ATTR-S9): yes
  • GSM interface (ATTR-S10): yes
  • Potential-free contact (ATTR-S11): optional
  • Length of mains cable for control unit (ATTR-S12): 1.4  MTR
  • Operating voltage (ATTR-S13): 230  VLT
  • Mains frequency (ATTR-S14): 50  HTZ
  • Protection class control unit (ATTR-S4): IP 54
  • Alarm sensor (ATTR-S1): optical probe
  • Type of level measurement (ATTR-7A): optical
  • Level measurement instrument (ATTR-7B): optical probe
  • Type of cover (ATTR-A21): Protective cover
  • Colour of cover (ATTR-A2A): transparent
  • Locking (ATTR-A2D): Clip closure
  • Cover material (ATTR-A2E): Polymer
  • Length (ATTR-A2M): 542  MMT
  • Width (ATTR-A2N): 350  MMT
  • Height (ATTR-A2P): 165  MMT
  • Protection class motor (ATTR-174): IP 68 (3m/48h)
  • Motor type (ATTR-120B): KSM 140
  • Standard (ATTR-9): EN 13564
  • CE marking (ATTR-A5B): yes
  • Backwater protection (ATTR-151): Type 3
  • Number of mechanical backwater flaps (ATTR-154): 1
  • Number of motor-driven backwater flaps (ATTR-3A): 1
  • External monitoring (ATTR-A8): LGA
  • Cable length (ATTR-190): 5  MTR
  • Declaration of Performance (DOP) (ATTR-292): 009-006
  • Protection strategy (ATTR-311): Central protection
  • Type of wastewater (ATTR-6): wastewater with sewage
  • Position relative to sewer (ATTR-309): Gradient to the sewer
  • Function in the event of backwater (ATTR-312): Protects in the event of backwater
  • Protection class probe (ATTR-175): IP 68 (3m/48h)
  • Colour (ATTR-102): black
  • Vertical drop between inlet and outlet (ATTR-176): 9  MMT
  • Brand (M-ATTR-001): KESSEL
  • Product group (M-ATTR-002): Backwater valves
  • Product type (M-ATTR-003): Automatic backwater valve
  • Product family (M-ATTR-004): Staufix
  • Product name (M-ATTR-005): Staufix FKA
